bOOMPilOT
SmartCable or Sdm
If a SmartCable or Section Driver Module (SDM) is present, BoomPilot is used to set BoomPilot to Off/Manual , Automatic or All On .
NOTE: GPS is unavailable when the BOOMPILOT icon is grey . BoomPilot status bar icon will be Off/Manual .
If a SmartCable or Section Driver Module (SDM) is not present, please refer to Single Section to view example.
If Work On/Off Switch is in the “On” position, improper application may occur.
If the individual boom section switches are in the “On” position, BoomPilot application control will not control those sections.
Off/Manual & Automatic
To switch BoomPilot between off/manual and automatic :
1. Work On/Off Switch should remain in the “Off” position.
2. Turn the controller master switch to the “On” position. The individual boom section switches should remain in the “Off” position.
3. Press NAVIGATION AND GUIDANCE OPTIONS icon to display navigation options.
4. Press BOOMPILOT icon .
◄Off/Manual – Status Bar Icon will change to red
◄Automatic – Status Bar Icon will change to green
In areas where application is not desired:
◄Manually turn “off” the rate controller master switch to shut off the booms. Turn the master switch “on” to resume application.
◄Press BOOMPILOT icon . Press the BOOMPILOT icon again to reseume application.
All Sections On Mode
To turn all sections on :
1. Press NAVIGATION AND GUIDANCE OPTIONS icon to display navigation options.
2. Press and hold BOOMPILOT icon .
◄All On – Status Bar Icon will change to yellow

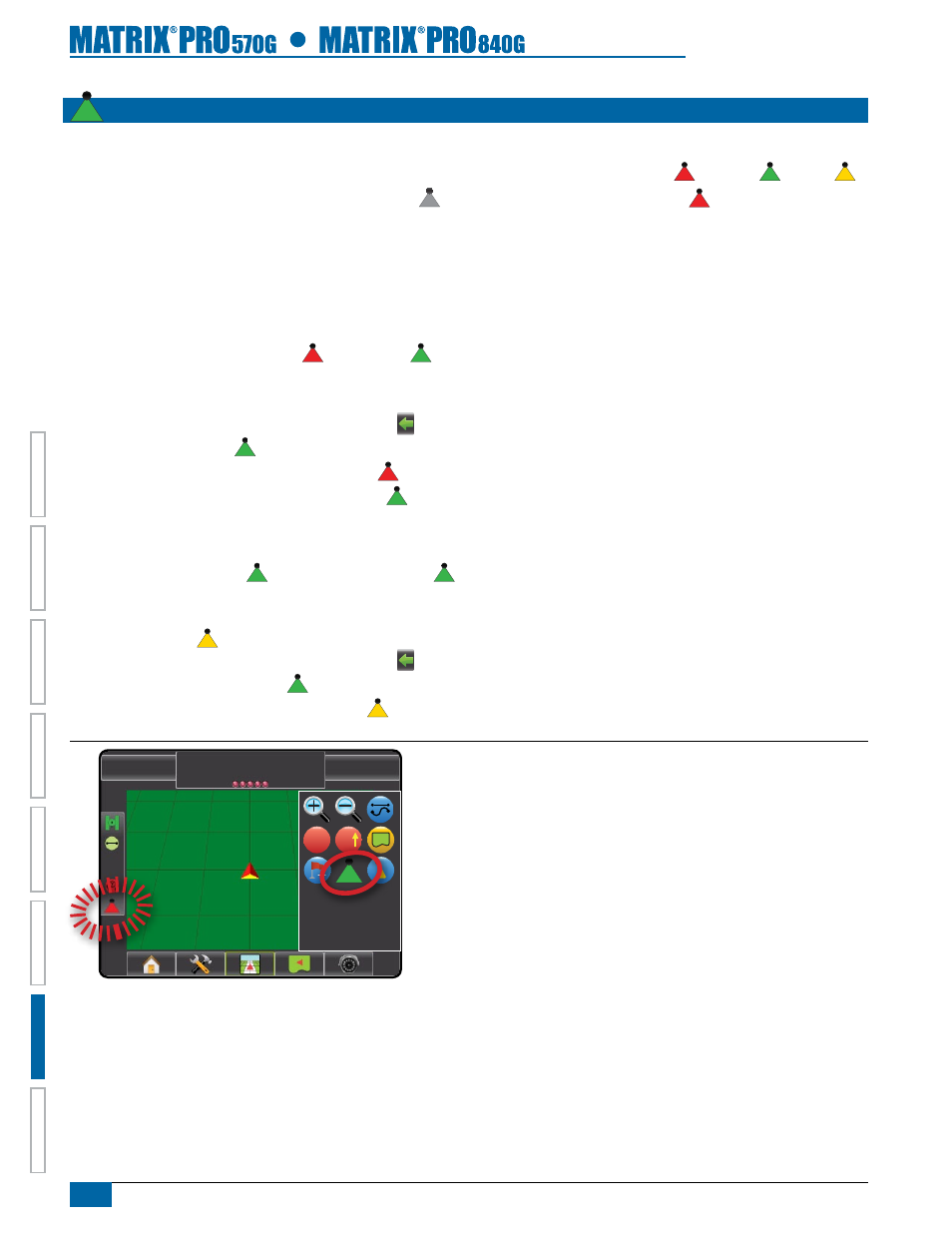

Figure 7-62: Automatic to All Sections On Mode
0.0 mph 0.00 ac
Mark A
A A
