CenterLine
Software Version 2.00
CenterLine 51
CenterLine Real-Time Operation
Applied Area Detection
CenterLine allows the detection of a previously applied area. To use applied area detection, the
Lightbar Setup - Alarm menu field must be set up prior to starting guidance. See “Alarm” on page
22 of this User Guide for more details on how to set up this menu field.
Detecting A Previously Applied Area

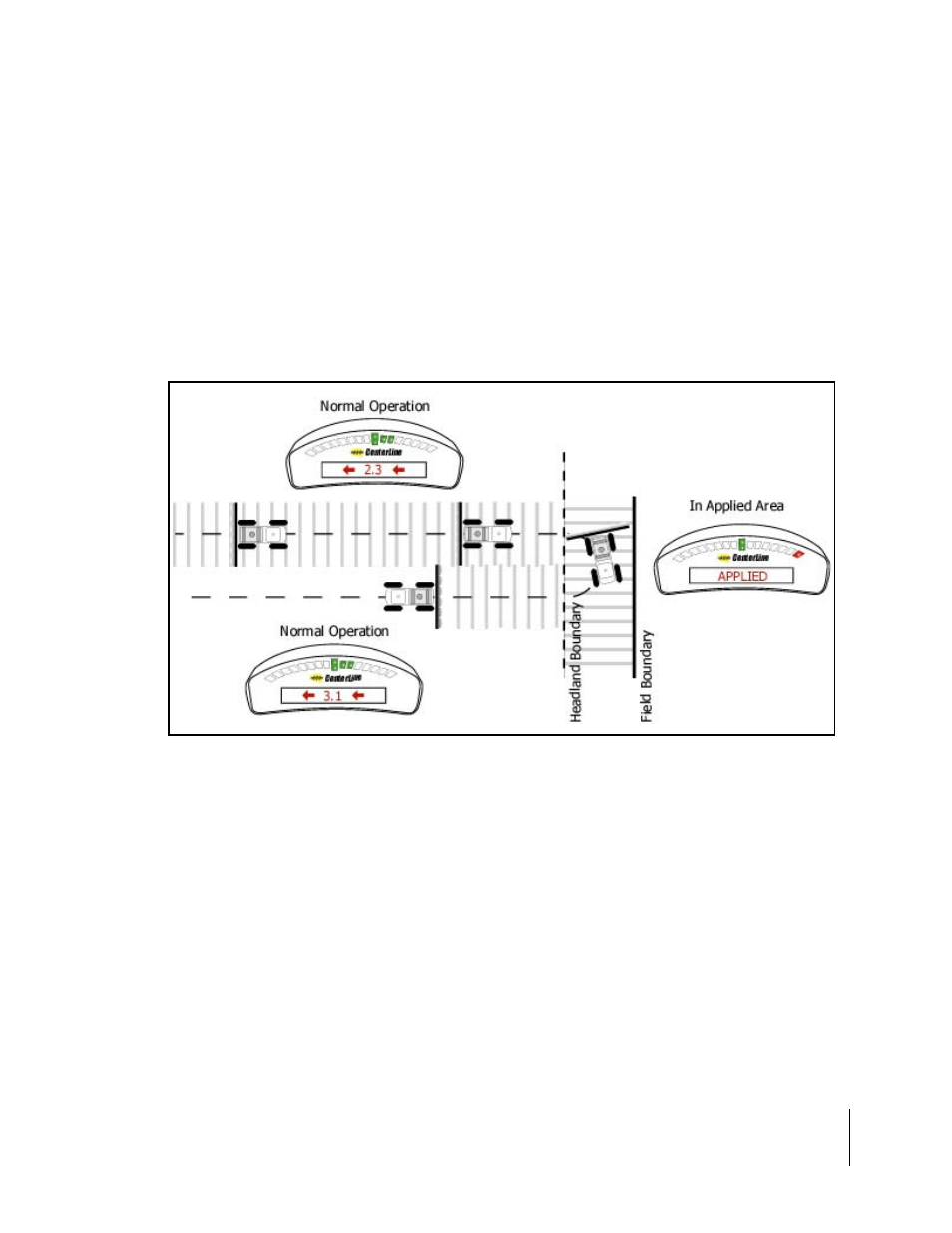

Figure 59 shows how previously applied area detection works. As the vehicle enters a previously
applied area, the lightbar displays the message APPLIED, even if the application is turned off.
When the vehicle exits the previously applied area, the APPLIED message stops displaying.
Figure 59: Applied Area Detection in Headlands
