CenterLine Real-Time Operation
Curve AB Guidance Operation
The Curve AB guidance mode works similar to Straight-Line mode except it provides vehicle guid-
ance along curved lines, based on a curved reference guideline. The first step is to establish the
reference guideline. This reference guideline is used to calculate all other parallel guidelines. See
See “Marking A and B Locations” on page 38 for more detail on how to establish a reference
guideline.
To mark the initial point A, begin driving along the first swath path (See Figure 56). It is recom-
mended that the reference guideline be established along the longest side of the field, if
possible, because the curved guidelines do not extend beyond the A and B points (See Fig-
ure 57). Beyond the A and B points straight-line guidance will be implemented. While the
vehicle is driving along the initial swath, the lightbar displays . As the vehicle passes
over the desired A location, press Enter to establish the guideline point A.

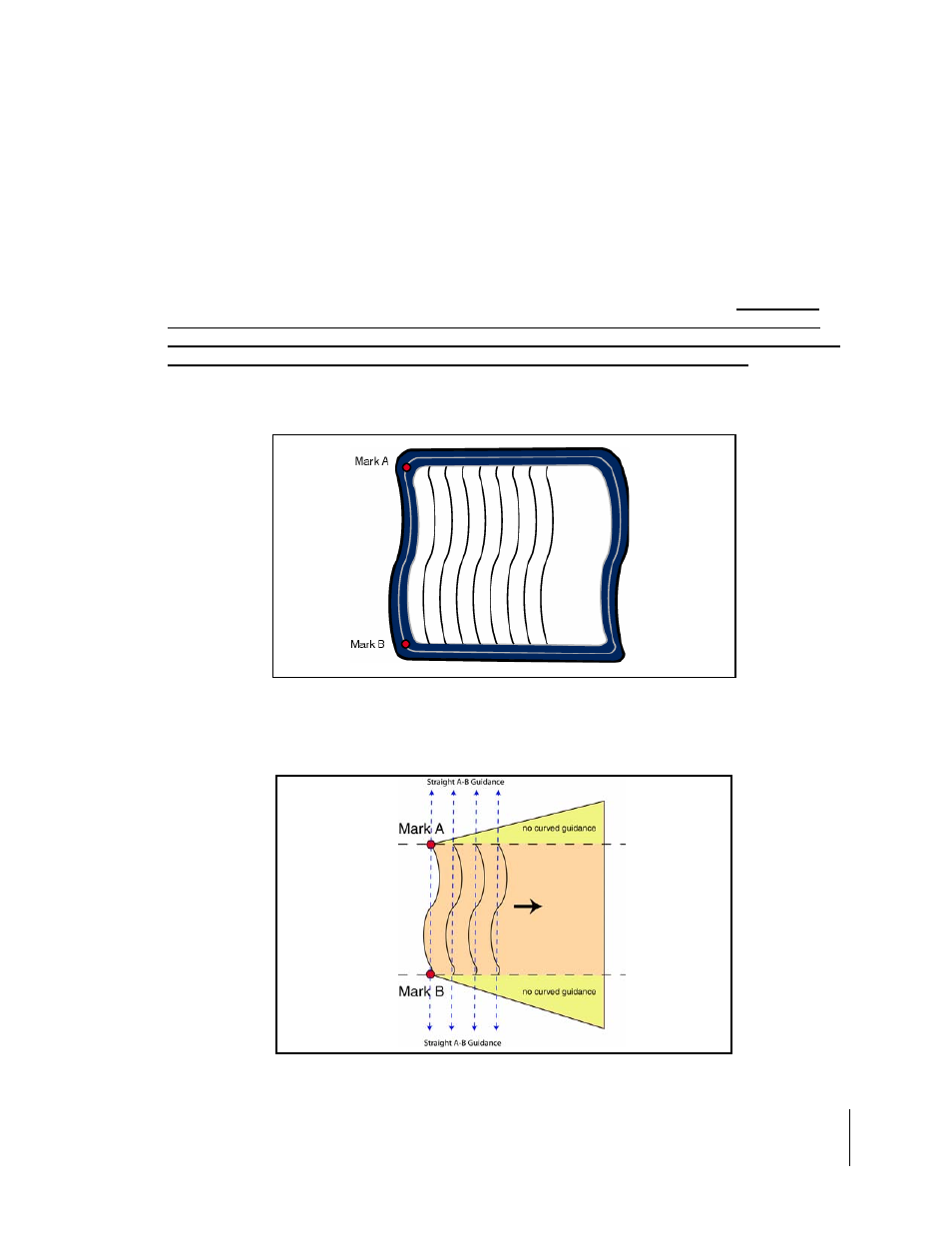

Figure 56: Marking AB Line in Curved Guidance
Figure 57: Curve AB Mode guideline limitations
