MACHINE

Machine configures machine settings. Options include Filling, Operation, Implement Parameters, Calibrations,

Alarm Configurations and OEM.

MAIN SETUP MODE MENU STRUCTURE

|

|

|

|

|

|

Counters

Job Parameters

Machine

User Interface

Communication

Help

Filling
Operation
Implement parameters

Pulses per Volume – Calibrations

Implement Speed Sensor

Alarm configurations
OEM

The OEM setup menu is password protected and the settings in this menu are directly related to the fitted OEM equipment.

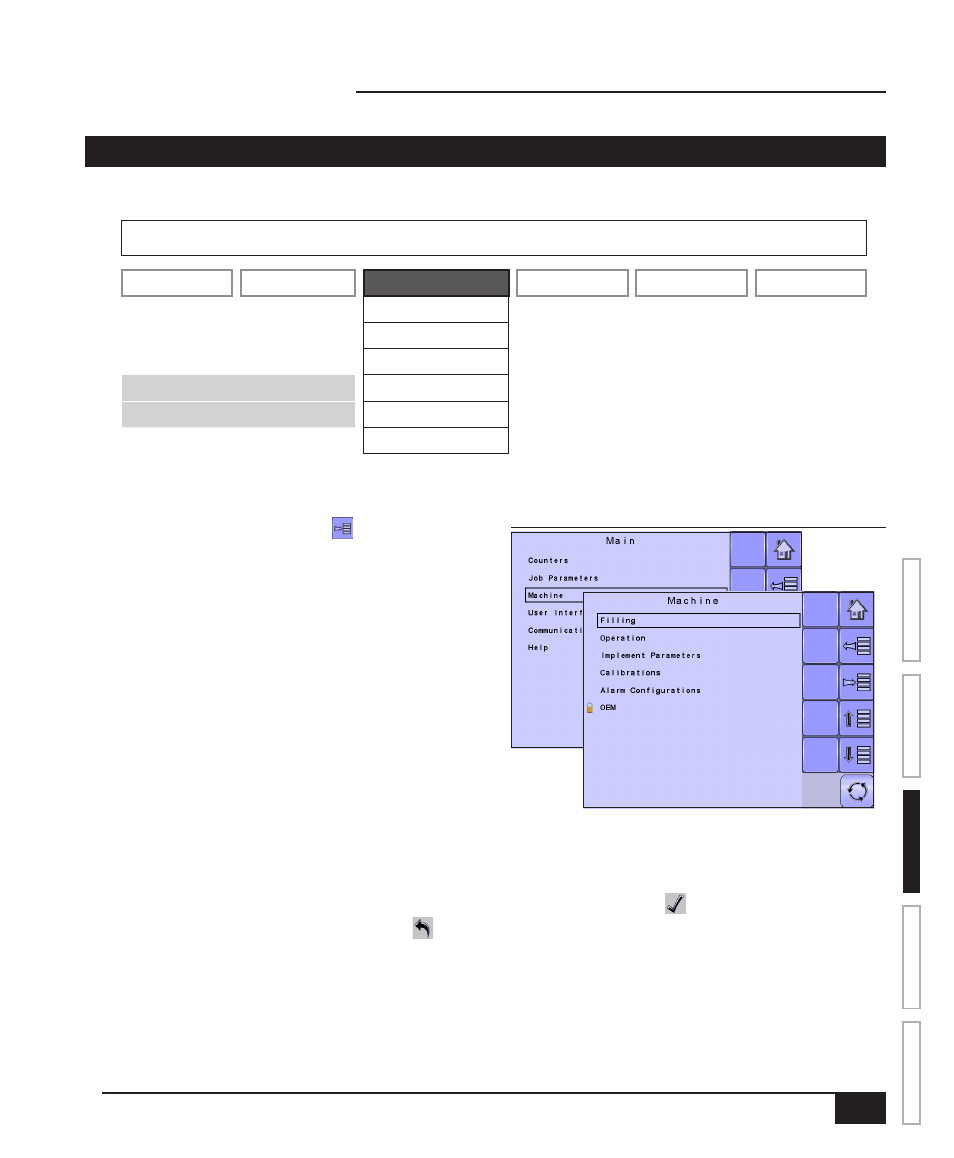

Figure 3-15: Machine

1. From the Main Setup Screen , select MACHINE.
2. Select from:

►Filling – establishes the amount of material

remaining in the bed.

►Operation – establishes Speed Source, and

Simulated Speed.

►Implement Parameters – establishes the Working

Width, Fast Empty Bed RPM and Master Switch

location.

►Calibrations – establishes either manual or

automatic settings of the sensors.

►Alarm Configurations – establishes alarms on or off

as well as sets their trigger level

►OEM – The OEM setup menu is password protected and the settings in this menu are directly related to the

fitted OEM equipment. Refer to the OEM manual for information regarding OEM settings.

NOTE: Settings are NOT automatically saved when selected. The ACCEPT KEY must be selected to save

the setting. Select the ESCAPE KEY to escape without saving settings and return to the previous

menu.
