The RED MOTION MOUNT ® Ti PL and MOTION MOUNT Ti Canon enable you to mount most PL cinema lenses
and Canon EF-compatible lenses to your DSMC ® BRAIN ® .
WARNING: Using lenses, adaptors, or other accessories that are not compatible with the MOTION MOUNT may
damage the internal glass or other elements in the lens mount.
WARNING: Lenses, adaptors, and other PL-mount devices with mounting elements that protrude more than
27.73 mm behind the PL mounting flange are not compatible with the MOTION MOUNT.
NOTE: Any damage to the MOTION MOUNT Ti PL or the DSMC system caused by using incompatible lenses
(including non-standard PL lenses) or devices is not covered under warranty.
COMPATIBILITY REQUIREMENTS
Some lenses are NOT compatible with the MOTION MOUNT due to the liquid crystal glass and shape of the
baffle inside the mount.

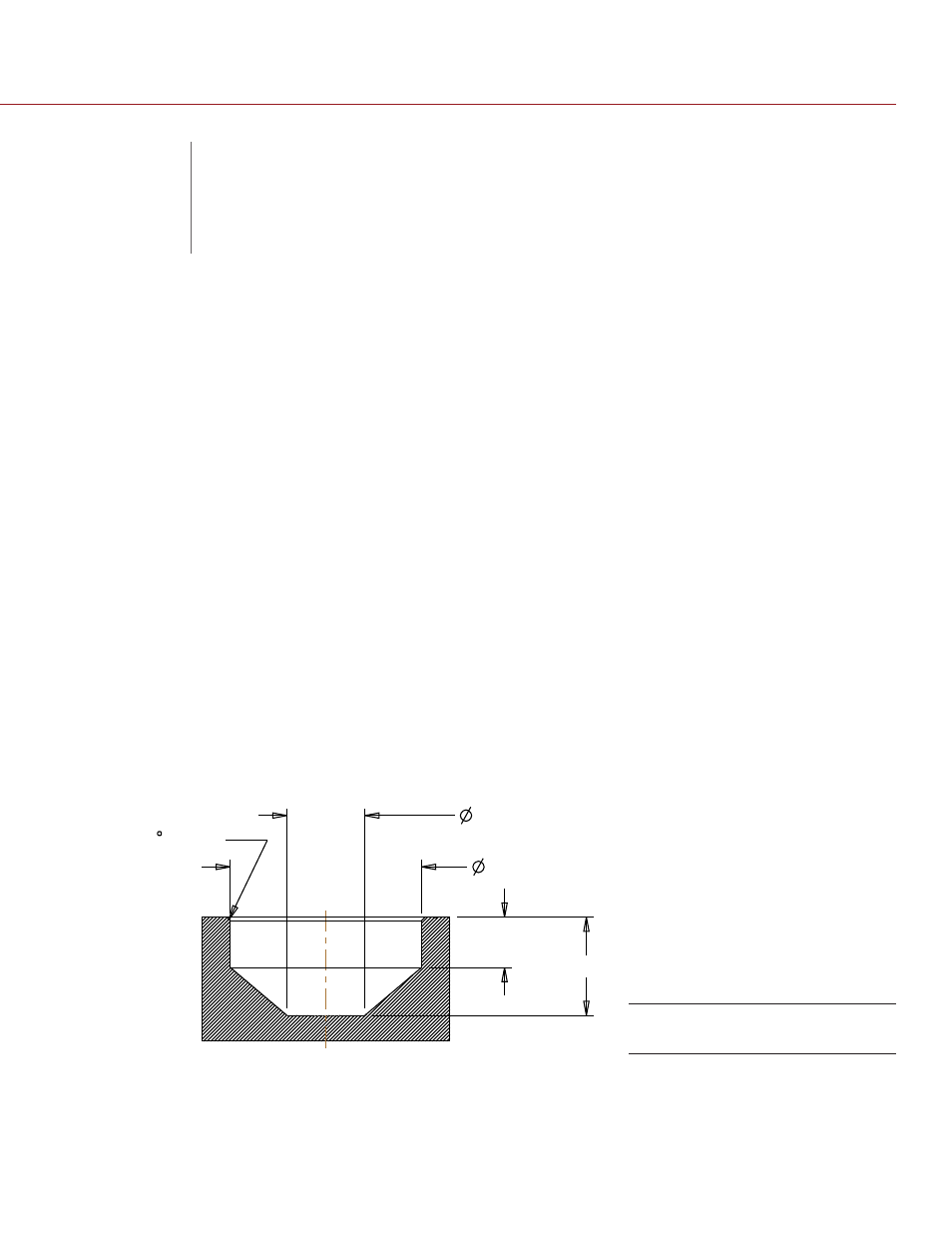

Refer to the following diagram to determine if the maximum protrusion depth and maximum protrusion diameter
of a particular lens is compatible with the MOTION MOUNT. If any of the protruding lens elements extend
beyond these dimensions, the lens IS NOT COMPATIBLE.
DO NOT use lenses that have mounting elements that exceed the following values:
Maximum Protrusion Depth: 27.73 mm
Maximum Protrusion Diameter at a Protrusion Depth of 14.20 mm: 54.00 mm
Maximum Protrusion Diameter at a Protrusion Depth of 27.73 mm: 22.00 mm
WARNING: Use of a lens that extends beyond these dimensions may damage the MOTION MOUNT.
