RED MOTION MOUNT OPERATION GUIDE
955-0013, REV-E | 10
INSTALL THE MOTION MOUNT
REQUIRED TOOL: T20 Torx ® driver
Turn off the DSMC and remove any accessories or cables that may interfere with installation before proceeding.
1. Inspect the gold electrical contact pins on the front of the DSMC and the gold contact pads on the rear of
the MOTION MOUNT. Ensure that they are free of any contamination.
2. Align the MOTION MOUNT on the front of the DSMC BRAIN. The DSMC connection pins must align with
the MOTION MOUNT pins.
3. Replace and loosely tighten the four (4) M4x0.7 x 8 mm lens mount screws in a cross pattern (“X” pattern).
WARNING: DO NOT FULLY TIGHTEN.
4. Tighten the four (4) lens mount screws evenly using a T20 Torx driver in a cross pattern (“X” pattern). DO
NOT exceed 350 in-oz, or damage may occur.
WARNING: DO NOT OVERTIGHTEN.
5. After installation, a hardware rediscover or firmware upgrade may be required. If the MOTION MOUNT is
not recognized, you will be unable to access the MOTION MOUNT menu at Menu > Settings > Setup > Lens.
To perform a hardware rediscover, go to Menu > Settings > Maintenance > Rediscover. A system reboot is
required after a hardware rediscover.
For more information and troubleshooting, go to “DSMC Does Not Recognize the” on page 26 .
NOTE: If you need to replace any screws, please contact your Bomb Squad representative.

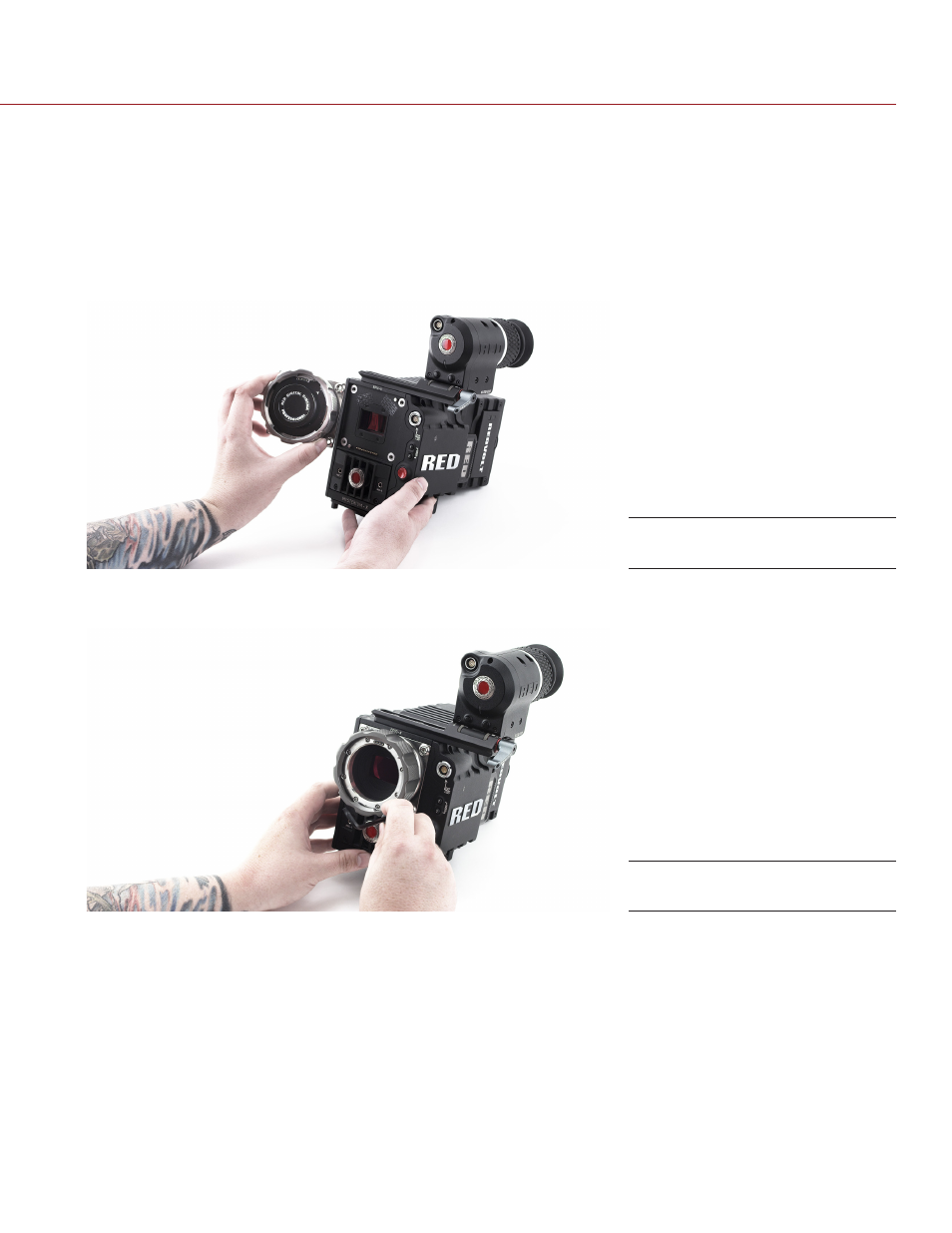

Align MOTION MOUNT pins
Install Screws
