MOTION MOUNT SHUTTER TYPES

Based on the selected shutter type, the MOTION MOUNT overrides control of all shutter operations. The

MOTION MOUNT can operate at frame rates up to 109.98 FPS.
Use the table below to help determine which MOTION MOUNT shutter type to use:

SHUTTER TYPE

ARTIFACTS

ROLLING SHUTTER

TEMPORAL ALIASING

SOFT SHUTTER

None

Dramatically reduced

SQUARE SHUTTER

None

No effect

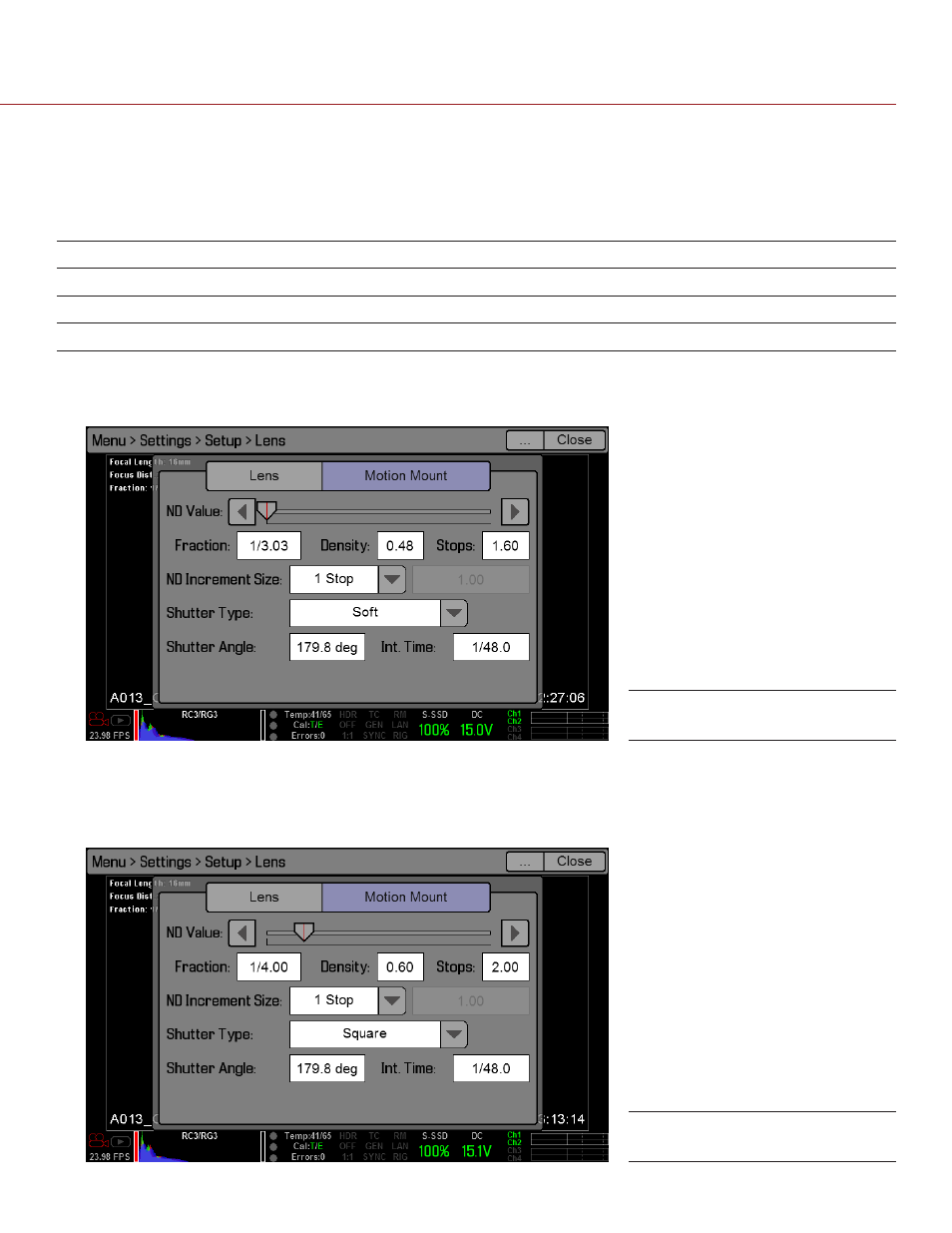

SELECT MOTION MOUNT SHUTTER TYPE AND SETTINGS

1. Go to Menu > Settings > Setup > Lens > MOTION MOUNT.

2. Select the desired shutter type from the Shutter Type drop-down menu:

‒ Soft: For more information, go to

‒ Square: For more information, go to

3. Select the desired Shutter Angle or Int. Time (Integration Time).

MOTION MOUNT Settings

Shutter Settings
