MOTION MOUNT SETTINGS
The RED MOTION MOUNT
®
delivers variable ND and shutter options based on the selected shutter type. The
following shutter types are available in Menu > Settings > Lens > MOTION MOUNT.
ND Only: Disables Soft and Square shutters. The MOTION MOUNT functions only as an ND filter. For more
information, go to
“Neutral Density (ND)” on page 12
.
Soft: Enables the Soft shutter, softening blur and reduction of temporal aliasing. The MOTION MOUNT
continues to function as an ND filter. For more information, go to
.
Square: Enables the Square shutter, ensuring consistent exposure and smooth motion. The MOTION MOUNT
continues to function as an ND filter. For more information, go to
The maximum shutter angle is restricted on the “ND Only” shutter type when ND is below 0.60 (2 stops). If the
desired shutter angle is not available with the selected frame rate, increase the ND value to 0.60 (2 stops) or
more and try again.
NOTE: The ND setting cannot be changed while recording.
NOTE: These instructions are specific to DSMC firmware version v5.2.28.
ACCESS THE MOTION MOUNT MENU
To adjust MOTION MOUNT settings, follow the instructions below.
NOTE: These menu settings are only accessible when a DSMC MOTION MOUNT is installed.
1. Turn on the DSMC.
2. Navigate to Menu > Settings > Setup > Lens > MOTION MOUNT.

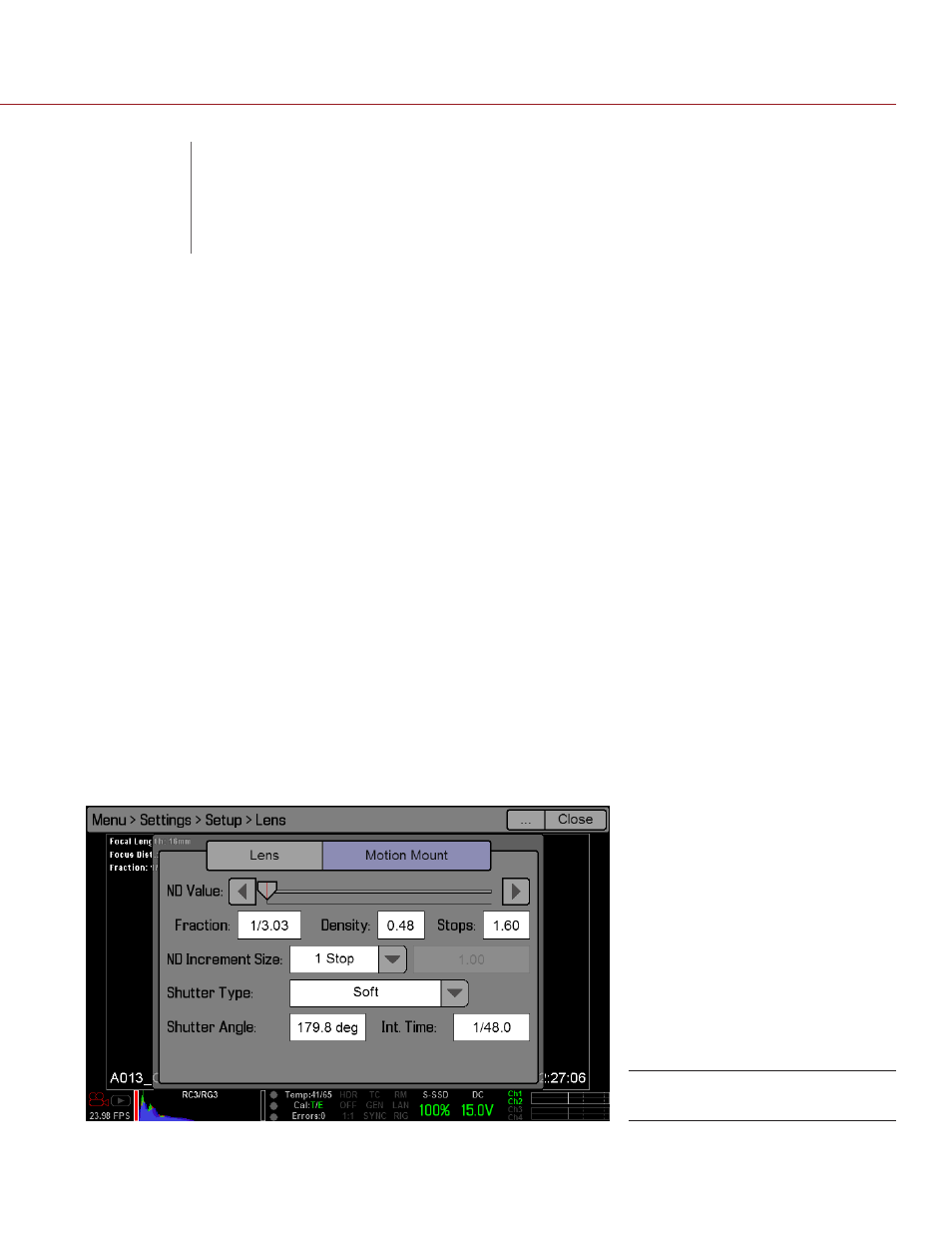

MOTION MOUNT Menu
