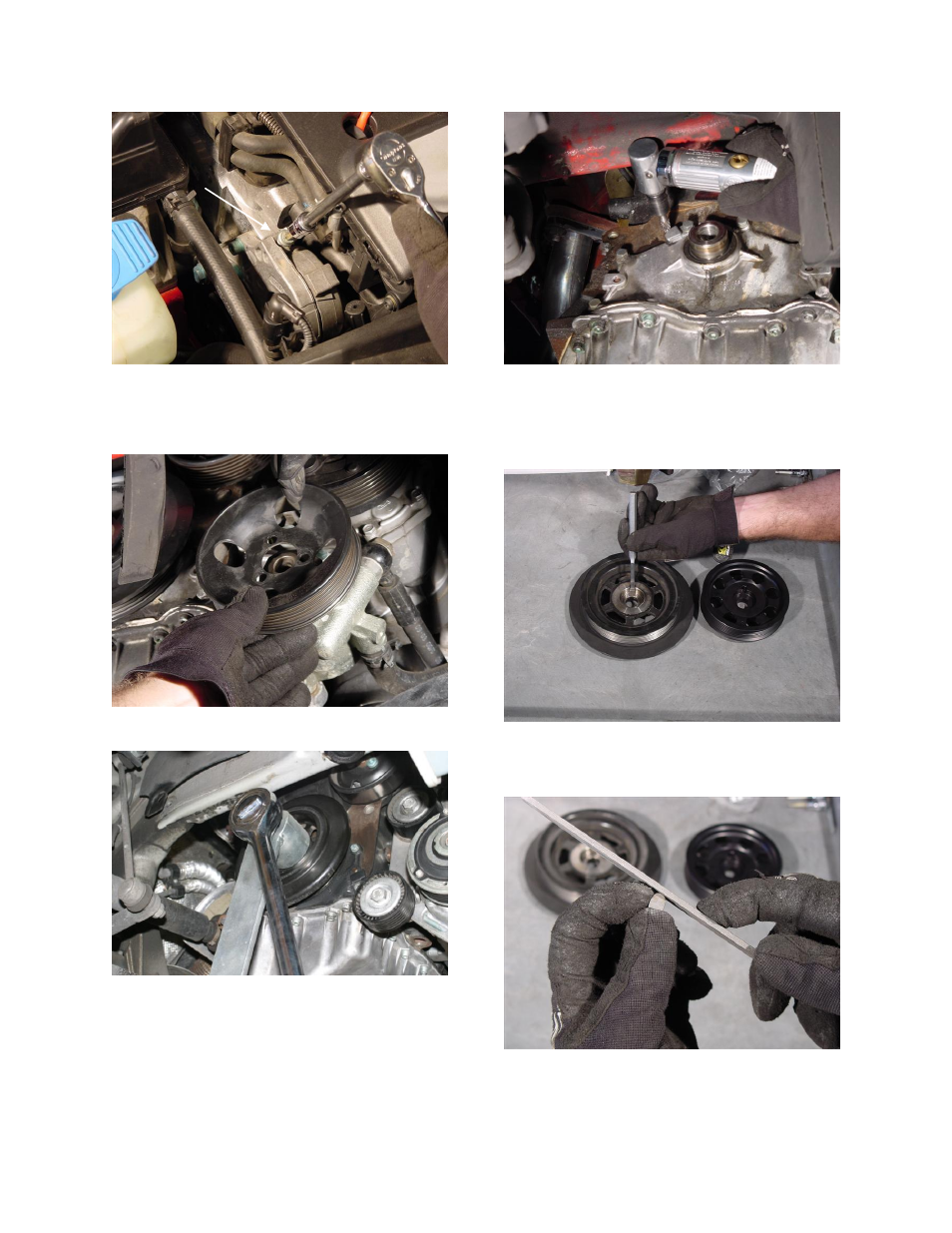

5. Remove drive belt by installing a M8 X 1.25 x 80
mm bolt in threaded bore on belt tensioner
assembly. Rotate bolt clockwise until belt is
loose enough for removal. Mark running
direction on belt and remove belt.
6. Remove bolts securing power steering pump
pulley and remove pulley.
7. Using VW tool Counter Holder (T10069) and 27
mm socket undo and remove bolt securing
crankshaft pulley. Now pull off pulley.
8. Using a grinder or file remove ¼” of material
from corner of crank seal housing. Test fit
supplied crankshaft pulley and check to see that
there is at least 1/8” of clearance between
housing and pulley. Continue to remove
material until clearance is achieved.
9. With a hammer and chisel, carefully remove key
from crankshaft pulley. NOTE: Do not lose or
destroy key, not available separately from VW
Parts.
10. Remove any burs from key.
