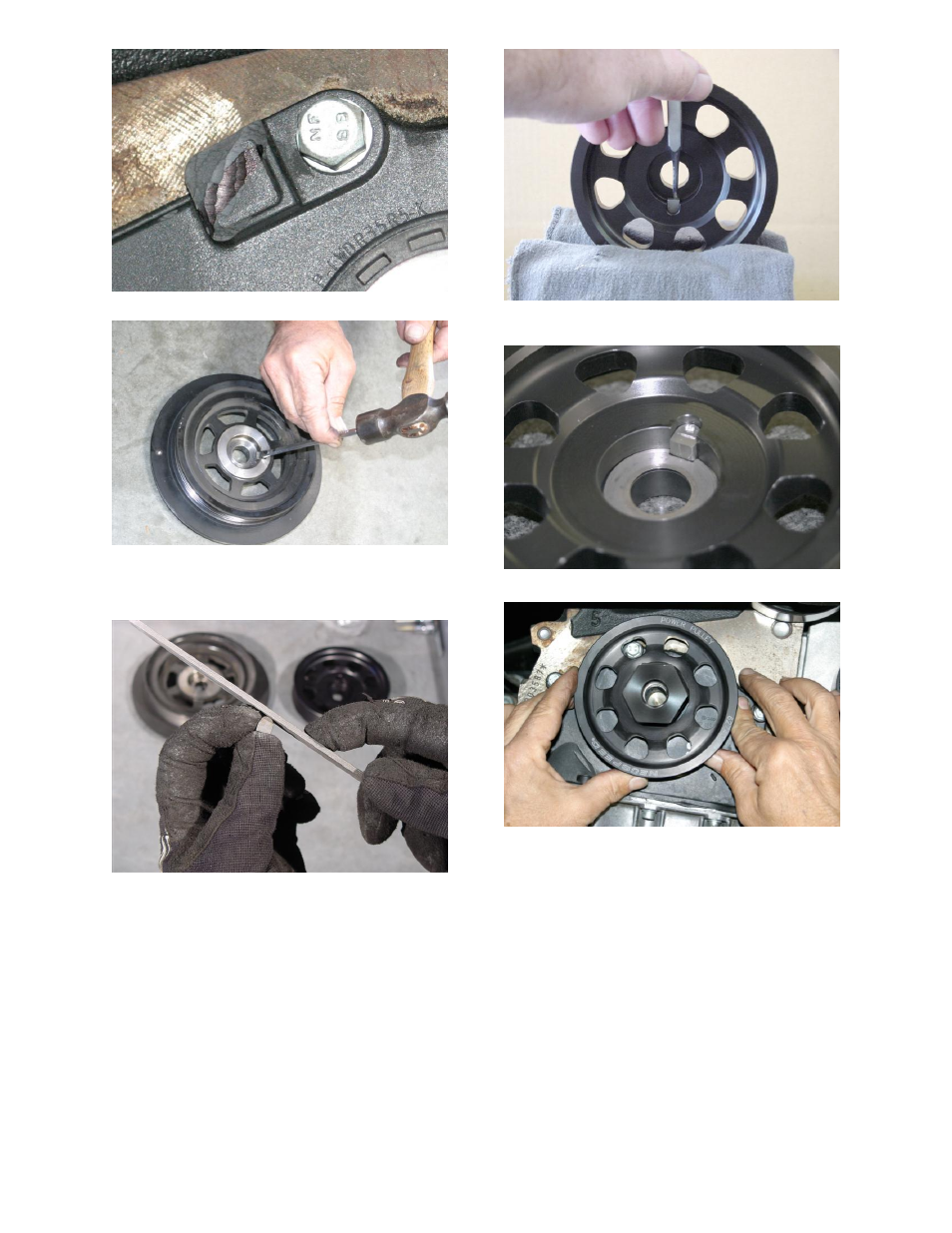

8. Finish grinding.
9. With a hammer and chisel, carefully remove key
from crankshaft pulley. NOTE: Do not lose or
destroy key, not available separately from VW
Parts.
10. Remove any burs from key with a file.
11. Install key in keyway of NEUSPEED crankshaft
pulley and gently tap into position if required.
12. Install shim washer onto back side of pulley.
13. Position pulley on crankshaft and align key to
keyway. Gently press pulley onto shaft. If
pulley does not slide on shaft easily, remove and
check for burs or corrosion. If any burs or
corrosion exists, remove as necessary. Use of
excessive force to install the pulley will
damage both the pulley and the crankshaft
and will void warranty.
14. Lightly coat with oil crank pulley surface to
underside of bolt head. Install new bolt supplied
and torque to 100Nm (74ft-lb.) plus an
additional ½ turn using VW tool Counter Holder
(T10069) and 27 mm socket.
