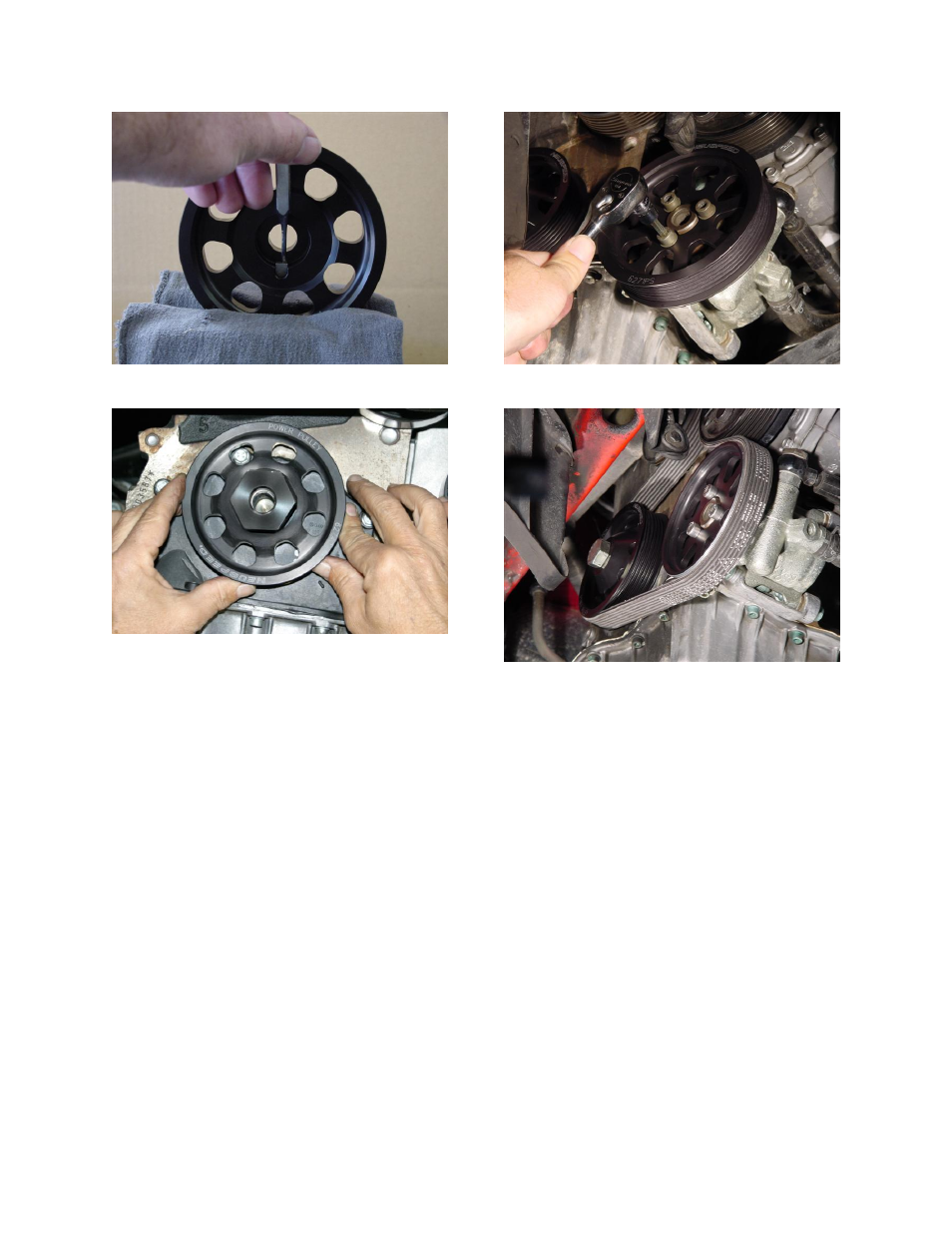

11. Install key in keyway of supplied crankshaft

pulley and gently tap into position.

12. Position pulley on crankshaft and align key to

keyway. Gently press pulley onto shaft. If pulley

does not slide on shaft easily, remove and check for

burs or corrosion. If any burs or corrosion exists,

remove as necessary. Use of excessive force to

install the pulley will damage both the pulley

and the crankshaft and will void warranty.

Install supplied bolt and torque to 100Nm (74ft-lb.)

plus an additional ¼ turn using VW tool Counter
Holder (T10069) and 27 mm socket.

13. Install power steering pump pulley and torque

pulley bolts to 20Nm (15ft-lb.)

14. Re-install belt in correct running direction and

slowly remove M8 bolt from tensioner, making sure

belt is correctly seated in pulley grooves.

15. Re-install engine cover and under-panel. Install

wheel and lug nuts. Raise vehicle, remove Jack

stand then lower vehicle. Torque lug nuts to 110Nm

(81 ft.-lb.) for factory wheels or to wheel

manufacture specifications.

16. Carefully check complete installation to be sure

all fasteners are tight, the belt is correctly seated in

groves of each pulley and that nothing interferes

with the pulleys or belt.
