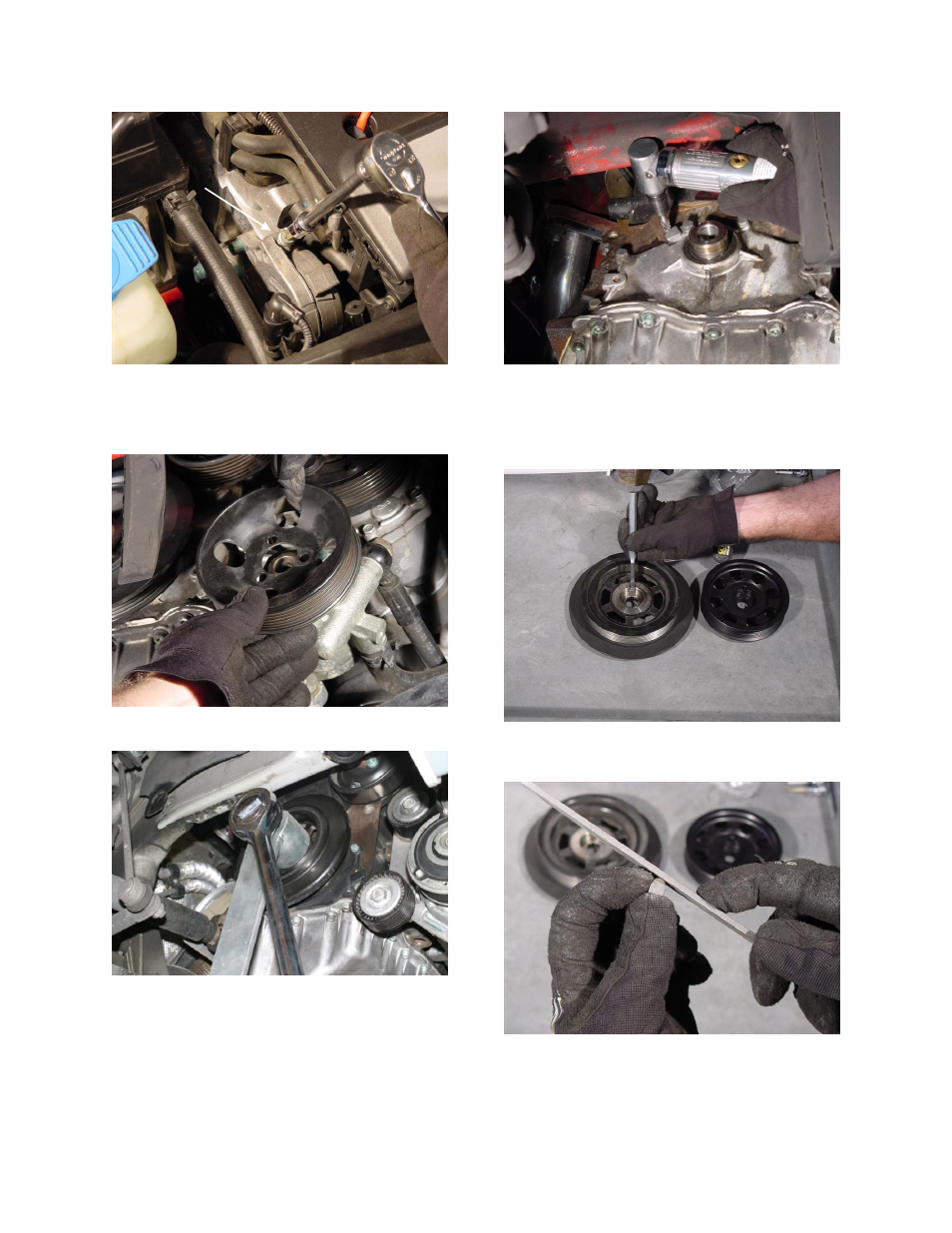

5. Remove drive belt by installing a M8 X 1.25 x 80
mm bolt in threaded bore on belt tensioner
assembly. Rotate bolt clockwise until belt is loose
enough for removal. Mark running direction on belt
and remove belt.
6. Remove bolts securing power steering pump
pulley and remove pulley.
7. Using VW tool Counter Holder (T10069) and 27
mm socket undo and remove bolt securing
crankshaft pulley. Now pull off pulley.
8. Using a grinder or file remove ¼” of material from
corner of crank seal housing. Test fit supplied
crankshaft pulley and check to see that there is at
least 1/8” of clearance between housing and pulley.
Continue to remove material until clearance is
achieved.
9. With a hammer and chisel, carefully remove key
from crankshaft pulley. NOTE: Do not lose or
destroy key, not available separately from VW Parts.
10. Remove any burs from key.
