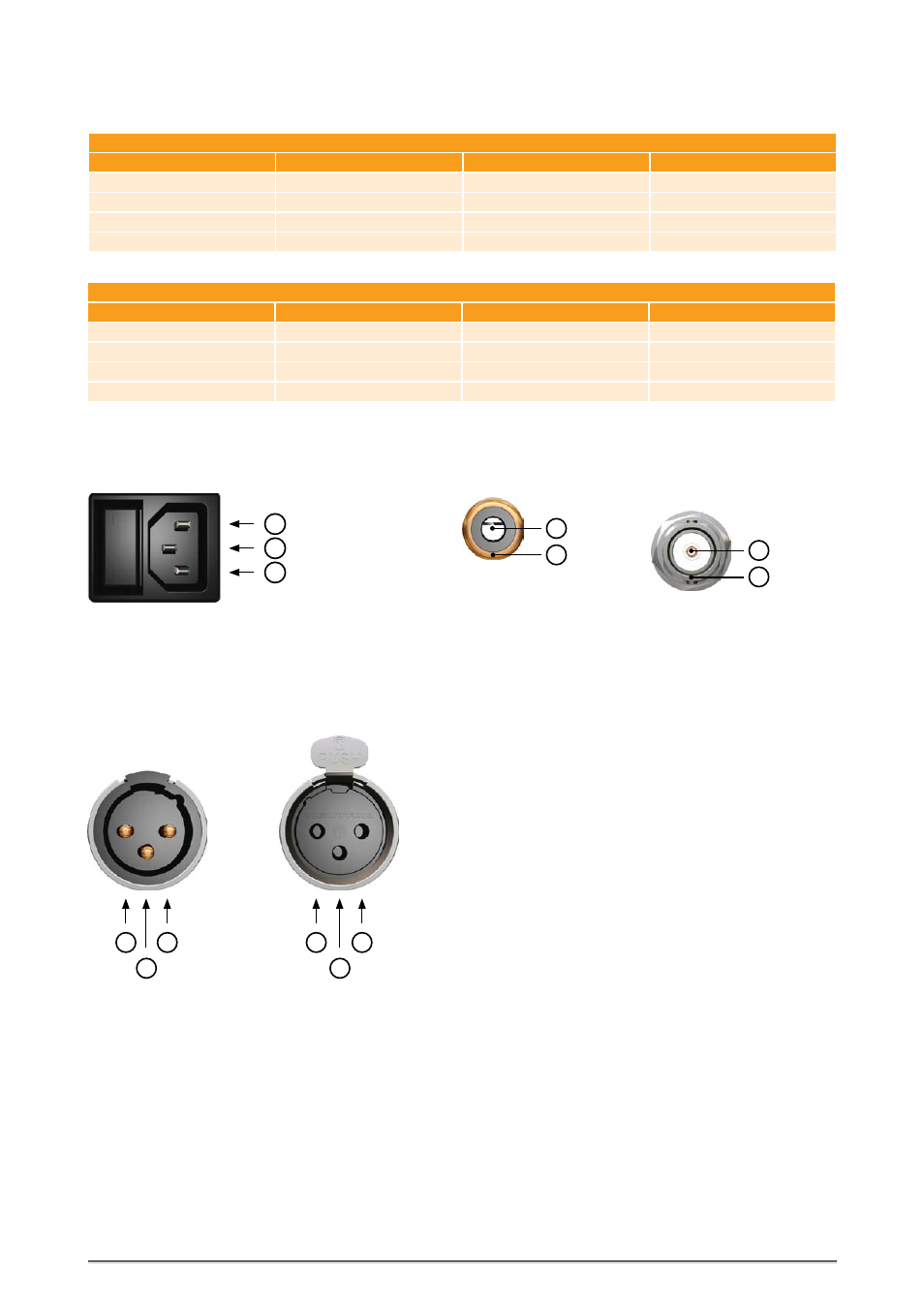

Pin Assignment of the Connectors
Mains Universal Inputs,
WCLK + Video Outputs
1 Signal
2 Ground
1
1 Neutral (blue; USA: white)
2 Protective earth (green/yellow; USA: green)
3 Live, phase (brown; USA: black)
2
3
1
3
2
1 Audio ground
2 a conductor (hot / +)
3 b conductor (cold / -)
2
3
1
1 Audio ground
2 a conductor (hot / +)
3 b conductor (cold / -)
AES/EBU XLR Output AES/EBU XLR Input
S/P-DIF Cinch Input / Output
1 Audio signal
2 Audio ground
1
2
2
1
AES11 CLOCK RATES
Dividers/Factors Basic Clock: 32.0 kHz Basic Clock: 44.1 kHz Basic Clock: 48.0 kHz
/ 2 16.0* 22.05* 24.0*
x 1 32.0 44.1 48.0
x 2 64.0 88.2 96.0
x 4 128.0 176.4 192.0
*) Generatable only, not synchronizable!
S/P-DIF CLOCK RATES
Dividers/Factors Basic Clock: 32.0 kHz Basic Clock: 44.1 kHz Basic Clock: 48.0 kHz
/ 2 16.0* 22.05* 24.0*
x 1 32.0 44.1 48.0
x 2 64.0 88.2 96.0
x 4 128.0 176.4 192.0
*) Generatable only, not synchronizable!
