Operation:
Prepare the spectrophotometer

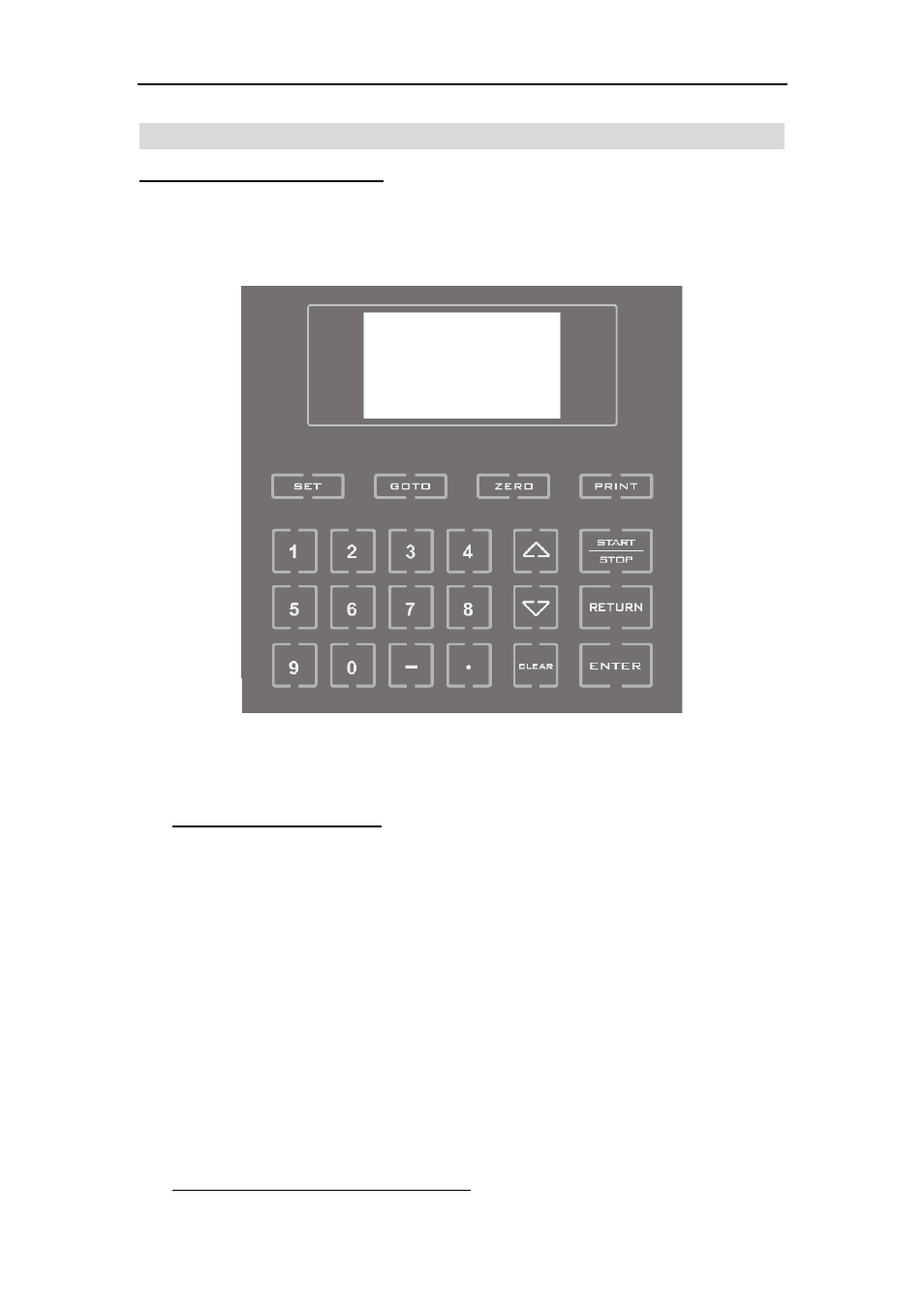

Fig 1-2 is the control panel. User can perform all operations by pressing the keys and all
the results and operation information are displayed on the LCD.
Fig 2
Description of keys
【START/STOP】 Start/stop testing
【RETURN】 Exit to previous screen or cancel the operation;
【ENTER】 Confirm the inputted data or selected item;
【CLEAR】 Clear all characters when you are inputting or clear test results display
on the screen;
【SET】 Parameter set
【GOTOλ λ λ λ】 Set wavelength;
【ZERO】 Blank
【PRINT】 Print test results
【0】-【9】 Input number or menu select.
【.】 Input dot;
【-】 Input minus symbol;
【 】 , 【 】 Scroll items for selecting; Browse the items for selection;
Turn on spectrophotometer
