16/18 Manual
2
Intentional interruption is prohibited.
Whenever it is likely that the protection has been impaired, the apparatus shall be made
inoperative and be secured against any unintended operation.
NEVER touch or handle the power supply on
63(&752
UV-16/18 due to the high voltage.
The protection is likely to be impaired if, for example, the apparatus
Shows visible damage
Fails to perform the intended measurements
Has been subjected to prolonged storage under unfavorable conditions
Has been subjected to severe transport stresses
Working Principle:
The spectrophotometer consists of five parts: 1) Halogen or deuterium lamps
to supply the light; 2) A Mono-chromator to isolate the wavelength of interest
and eliminate the unwanted second order radiation; 3) A sample compartment
to accommodate the sample solution; 4) A detector to receive the transmitted
light and convert it to an electrical signal; and 5) A digital display to indicate

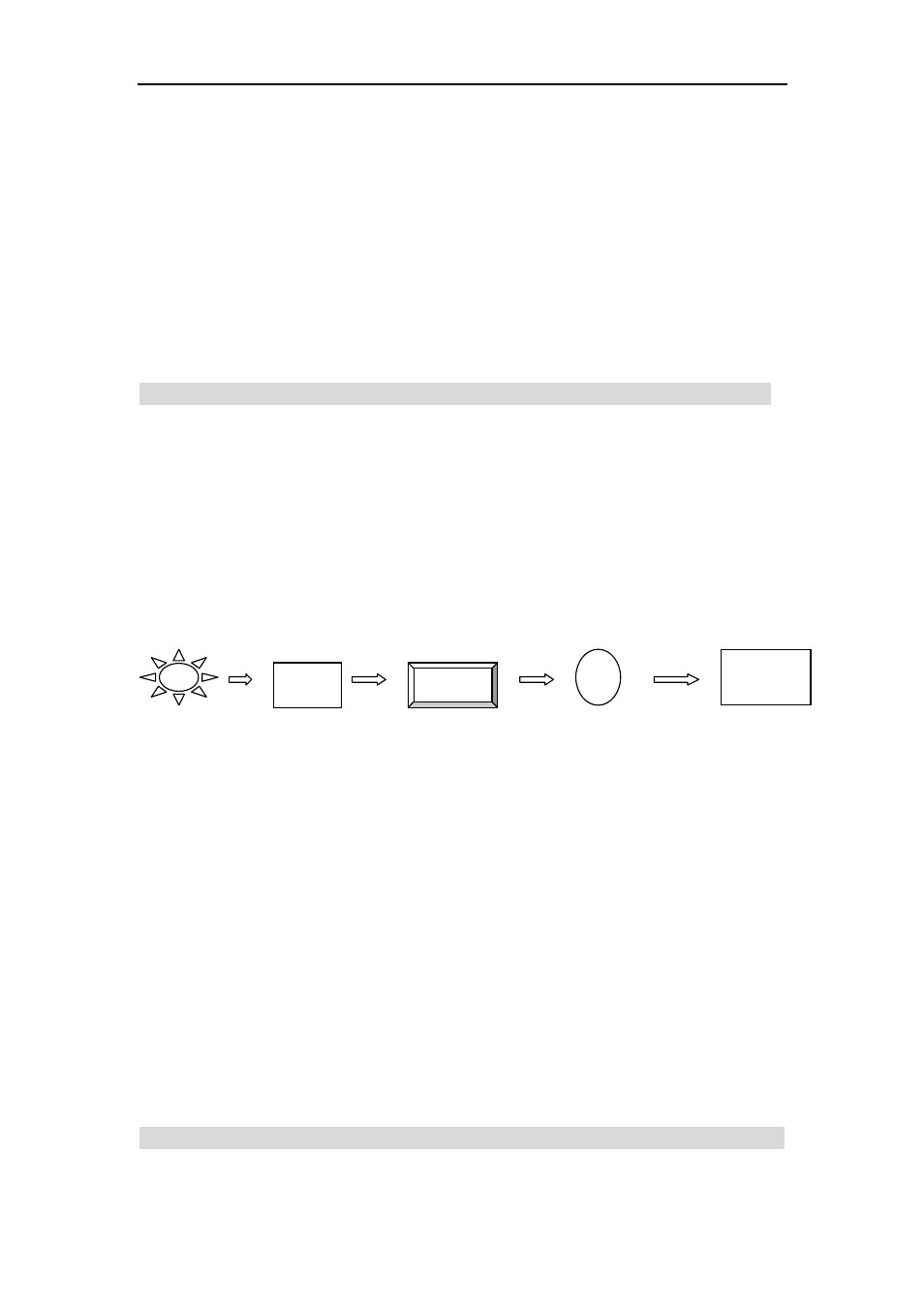

absorbance or transmittance. The block diagram (Fig 1-2) below illustrates
the relationship between these parts.
Block diagram for the Spectrophotometer
Light Mono- Sample Detector Display
Source chromator Compartment
Fig1-2
In your spectrophotometer, light from the lamp is focused on the entrance slit of the
monochromator where the collimating mirror directs the beam onto the grating. The
grating disperses the light beam to produce the spectrum, a portion of which is focused on
the exit slit of the monochromator by a collimating mirror. From here the beam is passed
to a sample compartment through one of the filters, which helps to eliminate unwanted
second order radiation from the diffraction grating. Upon leaving the sample
compartment, the beam is passed to the silicon photodiode detector and causes the
detector to produce an electrical signal that is displayed on the digital display.
Unpacking Instructions:
Carefully unpack the contents and check the materials against the following packing list to
ensure that you have received everything in good condition.
100%T
0
