HPP-100 Hand-Held Programmer
Revision 3.3 1
The HPP-100 Hand-Held Programmer
The HPP-100 Hand-Held Programmer is a powerful and convenient tool, yet its operation is
simple enough for anyone to master in a short period of time. The HPP-100 has the appearance
of a TV remote control, but has a different principle of operation. It is a mini-transmitter using a
radio frequency (RF) rather than an infrared signal to transmit data. Unlike a television remote
control (that requires a direct line-of-sight between the infrared transmitter in the remote and the
infrared receiver in the television) the HPP-100 should be held parallel to the proximity antenna
(see Figure 1).
Hand Held
Programmer
Reader

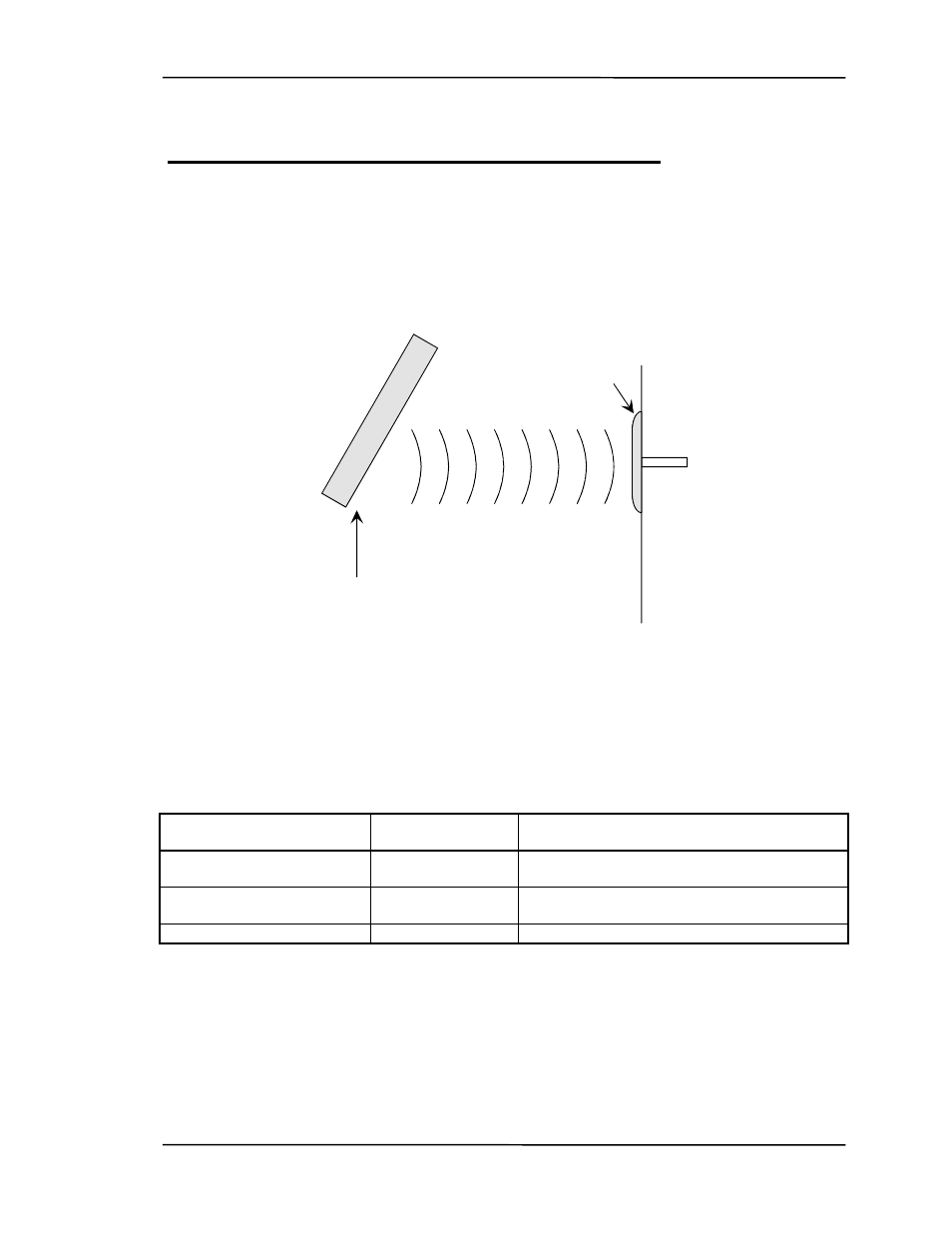

Figure 1 – HPP-100 Orientation
Hold the HPP-100 within the range of the proximity antenna (approximately 1-foot) and press the
appropriate button to send a command. Allow about 0.5 seconds for a response from the reader.
Point it at the Master Control Reader (within three to four inches of the reader) and press the
appropriate button to send a command. Allow about a half-second for a command response. The
reader’s sound alert will respond to the command with a distinct beep.
Command Response “BEEP” Status
BEEP 1 short Confirms the depression of a key on the
Hand-Held Programmer.
BEEP-BEEP 2 short Confirms acceptance of a complete
command sequence.
BEEEEEEEEP 1 long Confirms rejection or an invalid operation was
attempted.
BEEP-BEEP-BEEP-BEEP continuous short Indicates the door sense switch is open.
