Keri Systems MS-1400 - Manual

MS-1400 Keri Keys Receiver
Installation Guide
Page 1 of 7 P/N: 01501-001 Rev. C
Section 1 - Keri Keys Receiver Configuration
Section 2 - Specifications
Section 3 - Two Channel Operation Wiring
Section 4 - NXT-RIM Wiring
Sections 5, 6, and 7 - Housing, Mounting, and Receiver Read Range
Section 8 - LED and Beeper Functions
Section 9 - Keri Keys - Key Fob Transmitter
Section 10 - Contact Keri Systems
Keri System’s Keri Keys Receiver is a two-channel output receiver capable of outputting two separate channels based
upon which button is pushed on the clicker/transmitter. The receiver outputs data in a format compatible with Keri
Systems MS series readers as used with the PXL-500P Tiger Controllers and is capable of operating reliably at 300 feet
using the receiver’s built-in antenna. Greater distance can be achieved with use of an external antenna.
1.0 Keri Keys Receiver Configuration
The diagram below shows the configuration of the receiver board.

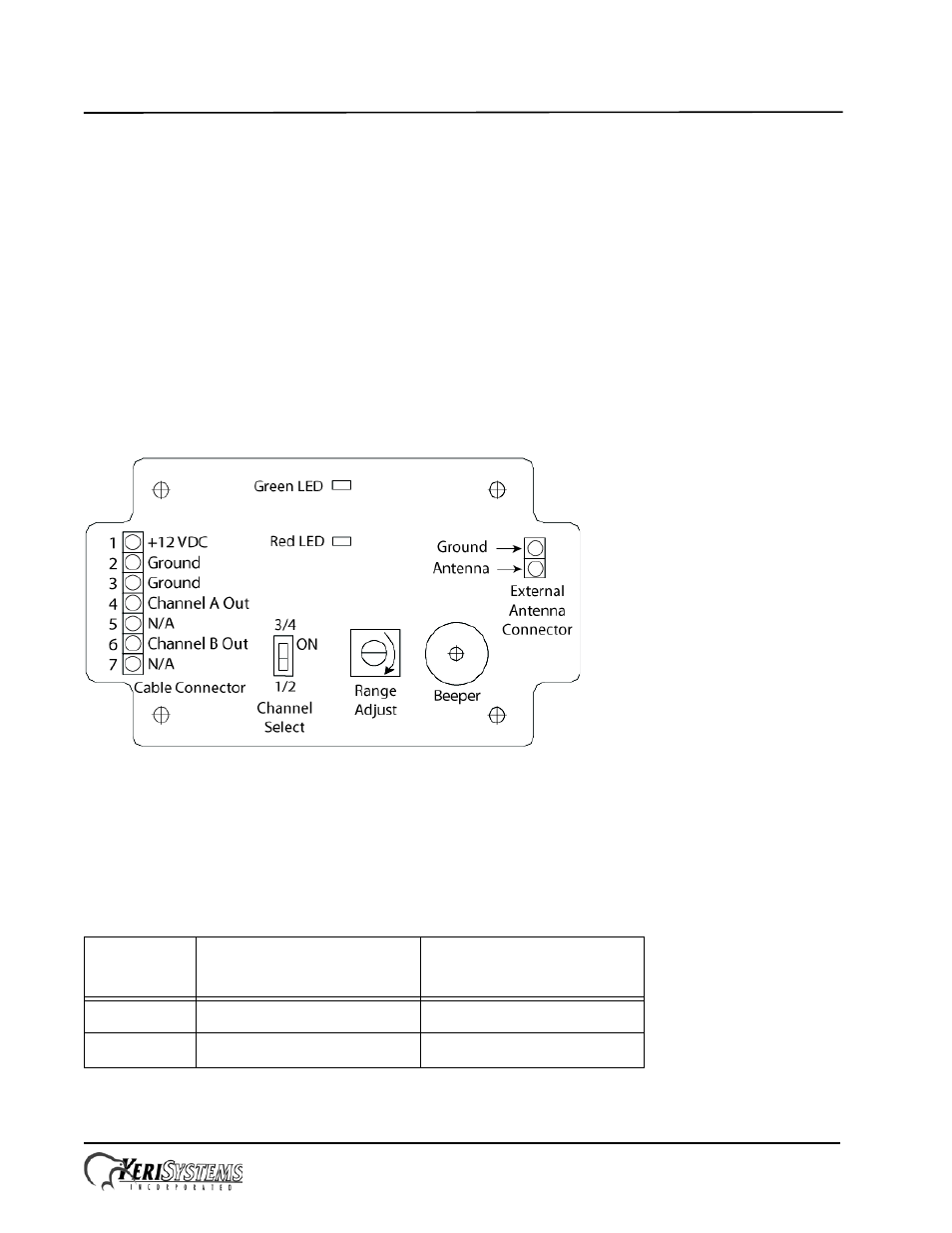

Figure 1: Clicker Receiver
1.1 Channel Select Configuration
By using two receivers you can use the four button clicker to operate up to four entrances. Setting the channel select
switch to 1/2 will allow it to operate with clicker buttons 1 and 2. Setting the channel select switch to 3/4 will allow use of
clicker buttons 3 and 4 (see Figure 1 for location of the channel select switch).
The chart below shows the function of each of the 4 clicker buttons.
NOTE: For single button clickers the switch must be set to 1/2.
Receiver
Channel
Channel Select
Switch (1/2)
Channel Select
Switch (3/4)
A Clicker Button 1 Clicker Button 3
B Clicker Button 2 Clicker Button 4
