PXL-250 Tiger Controller
1530 Old Oakland Road, Suite 100 01835-002 Rev. 4.2
San Jose, CA 95112 USA
(800) 260-5265 (408) 451-2520 FAX (408) 441-0309
Web: http://www.kerisys.com E-mail: [email protected]
Page 11 of 25
PXL-250
Quick Start Guide

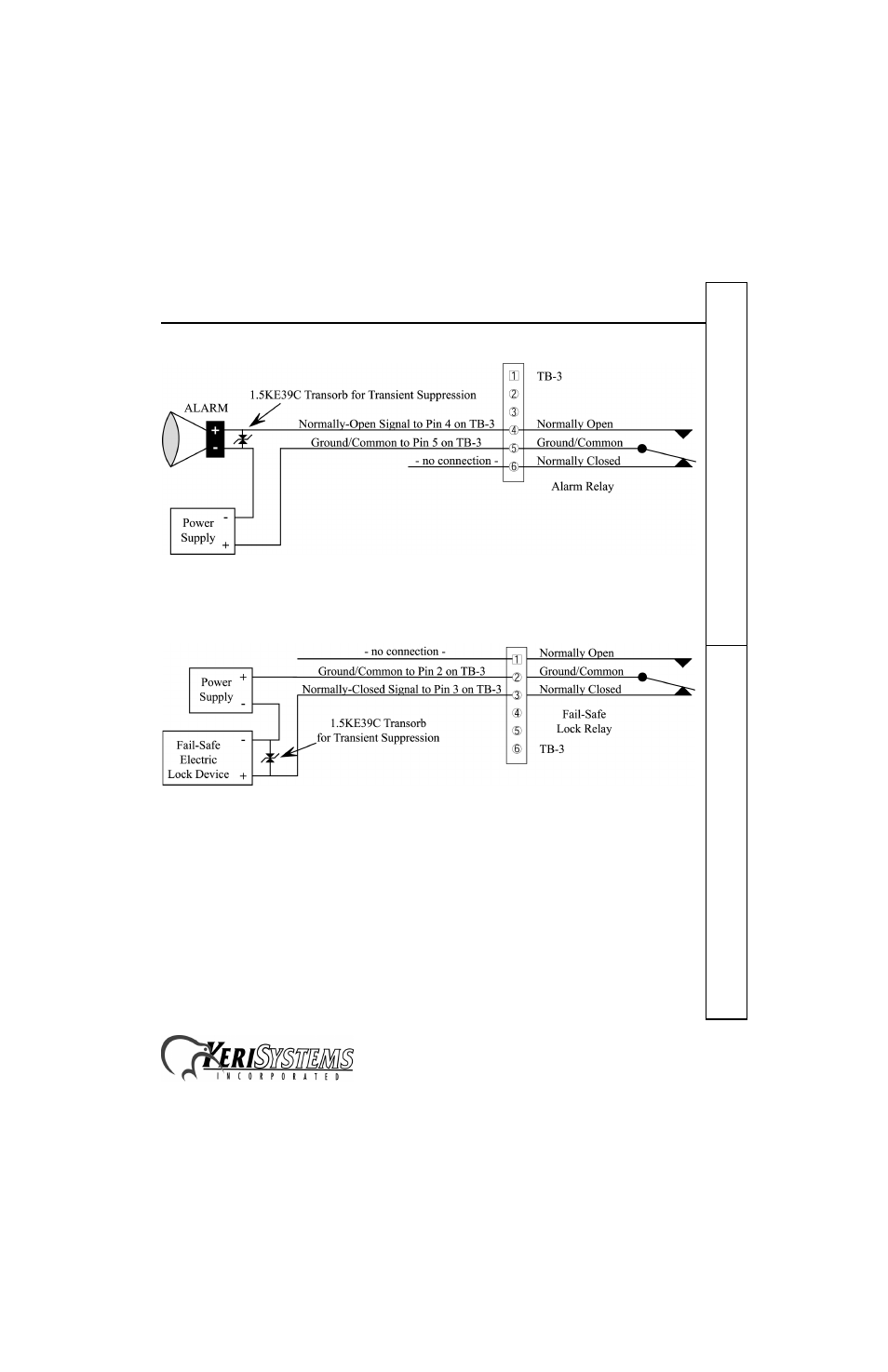

4.8 Connecting an Alarm Output Relay
Figure 11: Alarm Output Relay Connections
4.9 Connecting a Fail-Safe Lock Output Relay
Figure 12: Fail-Safe Lock Output Relay Connections
