PXL-500 / PXL-510 Tiger Controller
Quick Start Guide
Page 9 of 24 P/N: 01918-001 Rev. B
4.5 Connecting a Door Status Input
Each PXL-500/PXL-510 is shipped with an installation kit including all necessary terminal blocks and transorbs. One of
these terminal blocks has a jumper across pins 1 and 2. This terminal block is designated for use on TB-4. If a door switch
is not used on the controller, this jumper prevents a continuous door open status alarm from being received by the
controller. If a door switch is used, simply remove this jumper and install the door switch leads.

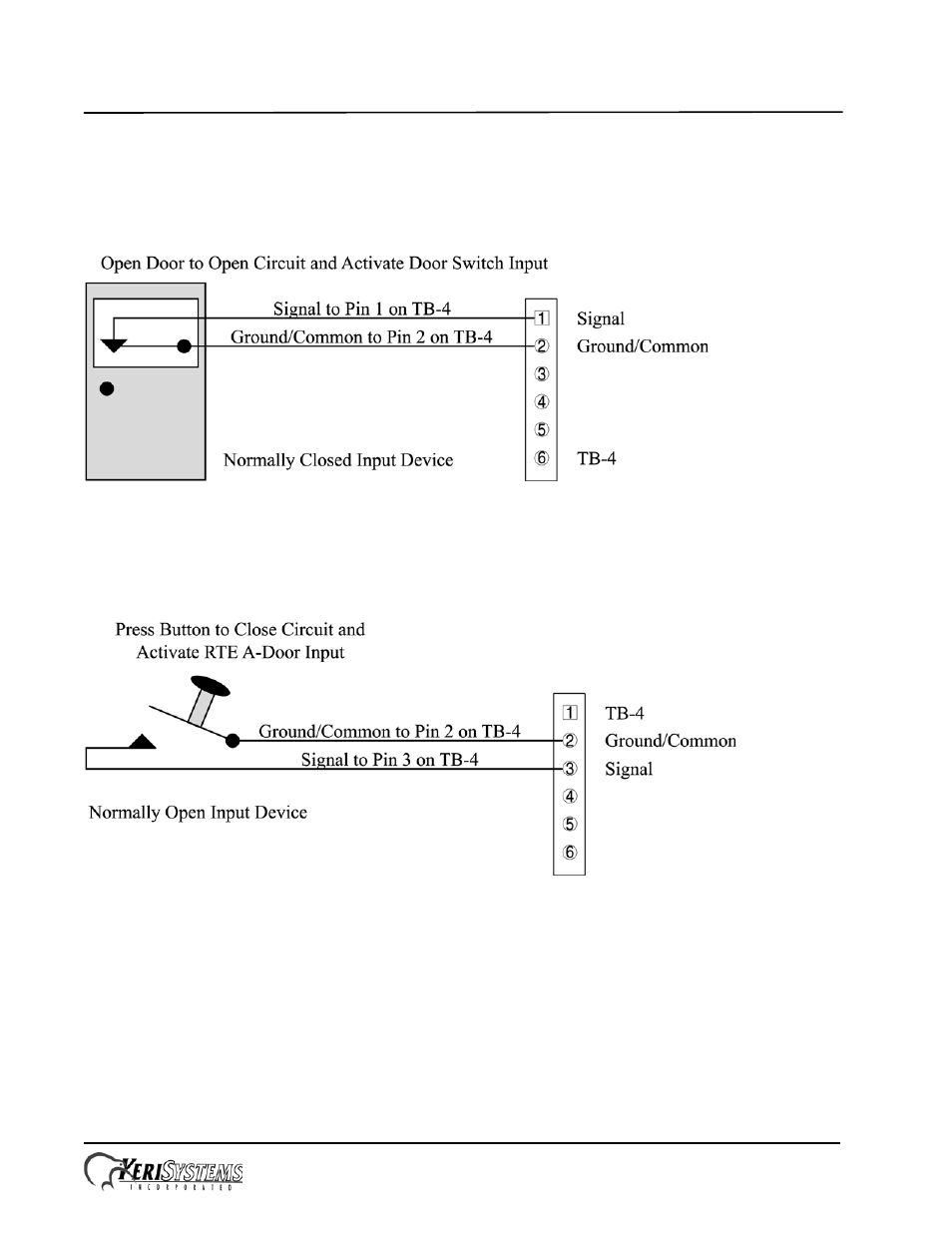

Figure 7: Door Status Input Connections
NOTE: A Door Switch must be installed on any door to which anti-passback is being applied for proper tracking of the
anti-passback feature in the Doors program.
4.6 Connecting a Request to Exit (RTE) Input
Figure 8: Request to Exit Input Connections
