PXL-500 / PXL-510 Tiger Controller
Quick Start Guide
Page 14 of 24 P/N: 01918-001 Rev. B
4.12.1 Direct Serial Connection – Controller to PC
• If the host computer has a male DB-9 connector on the serial port, you must use a Keri Systems KDP-552 cable or
create a cable according to the drawing in Section 4.12.1.1 on page 14.
4.12.1.1 PC/DB-9F to PXL/TB-12 RS-232 Direct Serial Connection
The Keri Systems part number for this cable is KDP-252. To use the KDP-252, cut off one end of the cable and wire it to
the TB-12 connector as shown in Figure 15.

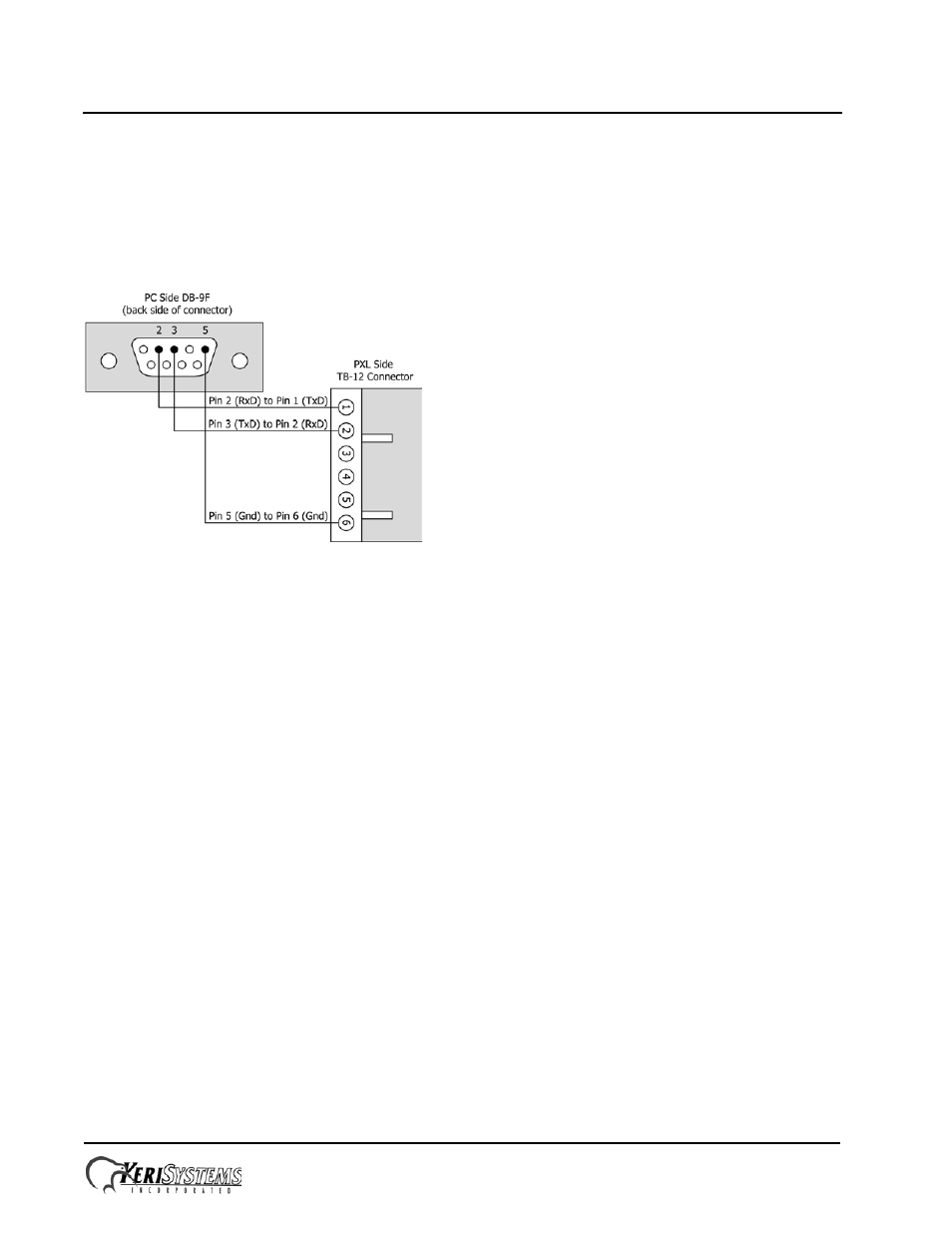

Figure 15: PC/DB-9F to PXL/TB-12 RS-232 Direct Serial Connections
