PXL-500 / PXL-510 Tiger Controller
Quick Start Guide
Page 18 of 24 P/N: 01918-001 Rev. B
4.13 Alarm Control Panel to PXL-510 Connection
The PXL-510 controller’s TB-11 (see Figure 1 on page 1) provides a communication link between the NetworX NX-8E
Alarm Control Panel and the PXL-510 master controller via the Serial Interface Cable (see Figure 22).
• Keri Systems provides a serial interface cable. However, if you need to make your own, see the drawing in
Section 4.13.1 on page 18.

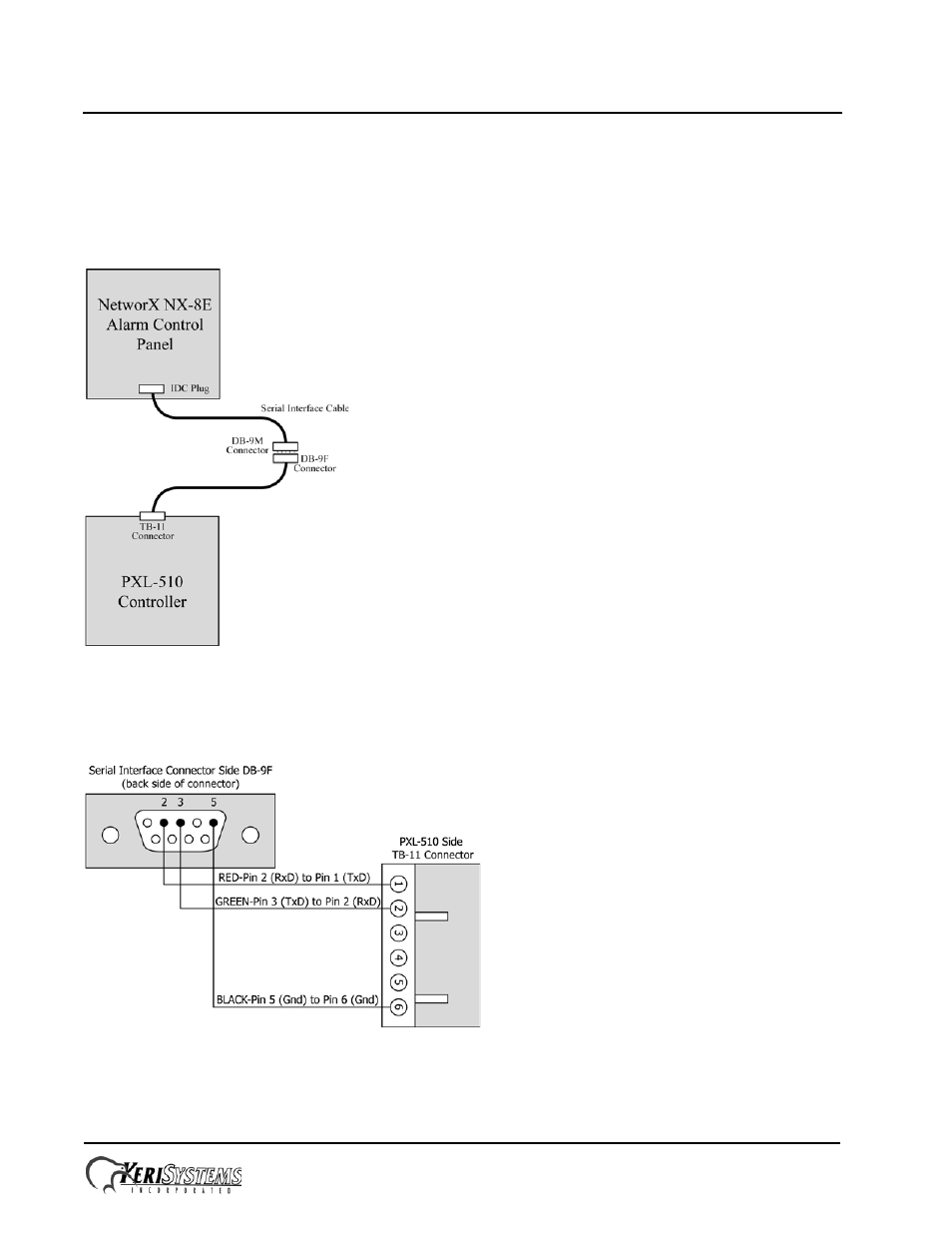

Figure 22: PXL-510 Controller to NetworX NX-8E Alarm Control Panel Via the Serial Interface Cable
4.13.1 Serial Interface Cable/DB-9F to PXL-510/TB-11 Connection
The Keri Systems part number for this cable is KDP-552.
Figure 23: Serial Interface Cable/DB-9F to PXL-510/TB-11 Connection
