PXL-500 / PXL-510 Tiger Controller
Quick Start Guide
Page 17 of 24 P/N: 01918-001 Rev. B
4.12.3.3 Modem/DB-9M to PC/DB-9F PC Serial COM Port Connection

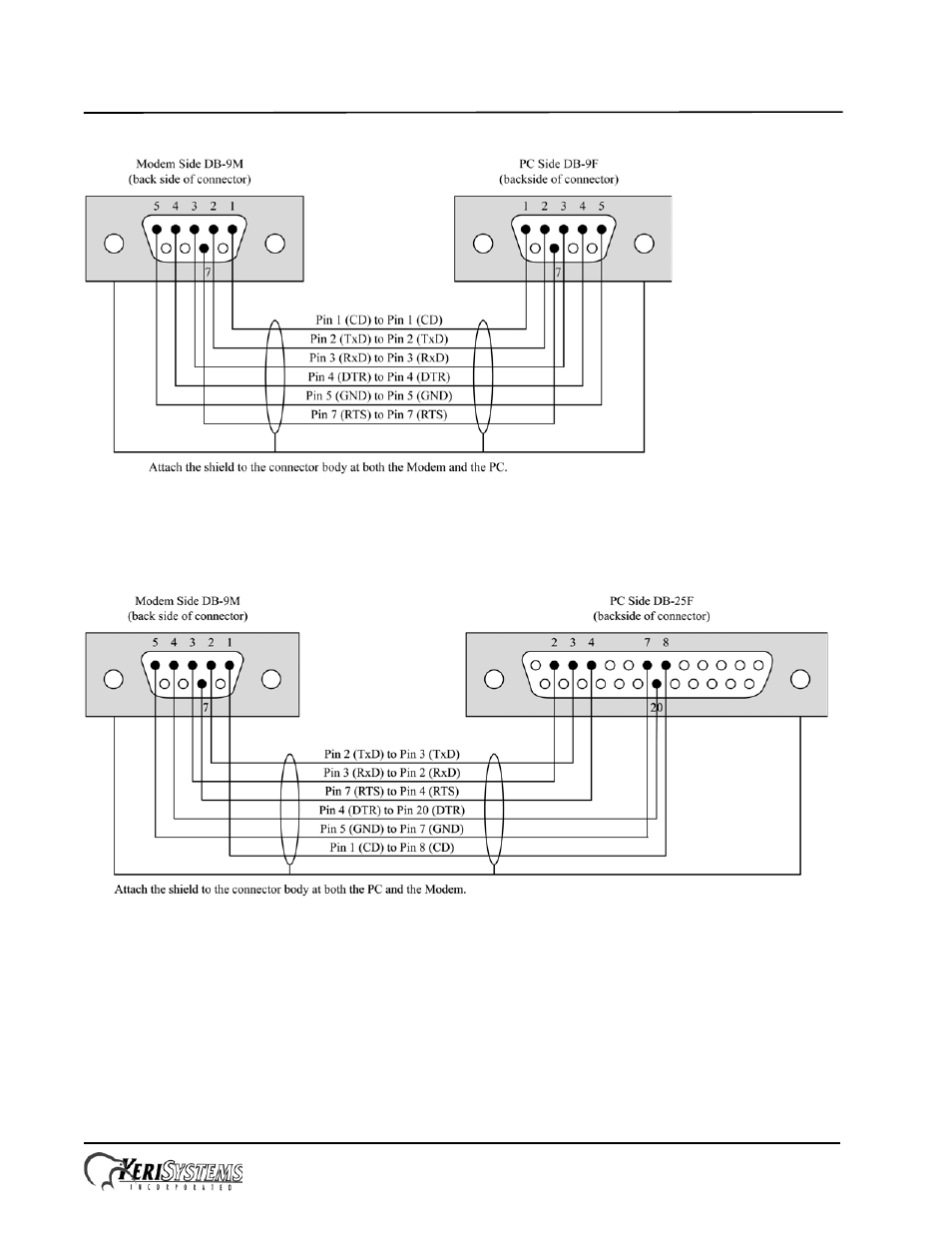

Figure 20: Modem/DB-9M to PC/DB-9F PC Serial COM Port Connection
4.12.3.4 Modem/DB-9M to PC/DB-25F PC Serial COM Port Connection
Figure 21: Modem/DB-9M to PC/DB-25F PC Serial COM Port Connection
