PXL-500 / PXL-510 Tiger Controller
Quick Start Guide
Page 16 of 24 P/N: 01918-001 Rev. B
4.12.3 Modem to PC Serial Connection
Keri Systems does not provide this cable. It is an off-the-shelf item from any computer supplier or electronics store, and
its configuration is dependent upon the configuration of the serial port on the host computer. Based on the serial port, there
are four possible cables.
• If the modem has a male DB-25 connector and the host computer’s serial port has a female DB-9 connector, purchase
or create a cable according to the drawing in Section 4.12.3.1 on page 16.
• If the modem has a male DB-25 connector and the host computer’s serial port has a female DB-25 connector,
purchase or create a cable according to the drawing in Section 4.12.3.2 on page 16.
• If the modem has a male DB-9 connector and the host computer’s serial port has a female DB-9 connector, purchase
or create a cable according to the drawing in Section 4.12.3.3 on page 17.
• If the modem has a male DB-9 connector and the host computer’s serial port has a female DB-25 connector, purchase
or create a cable according to the drawing in Section 4.12.3.4 on page 17.

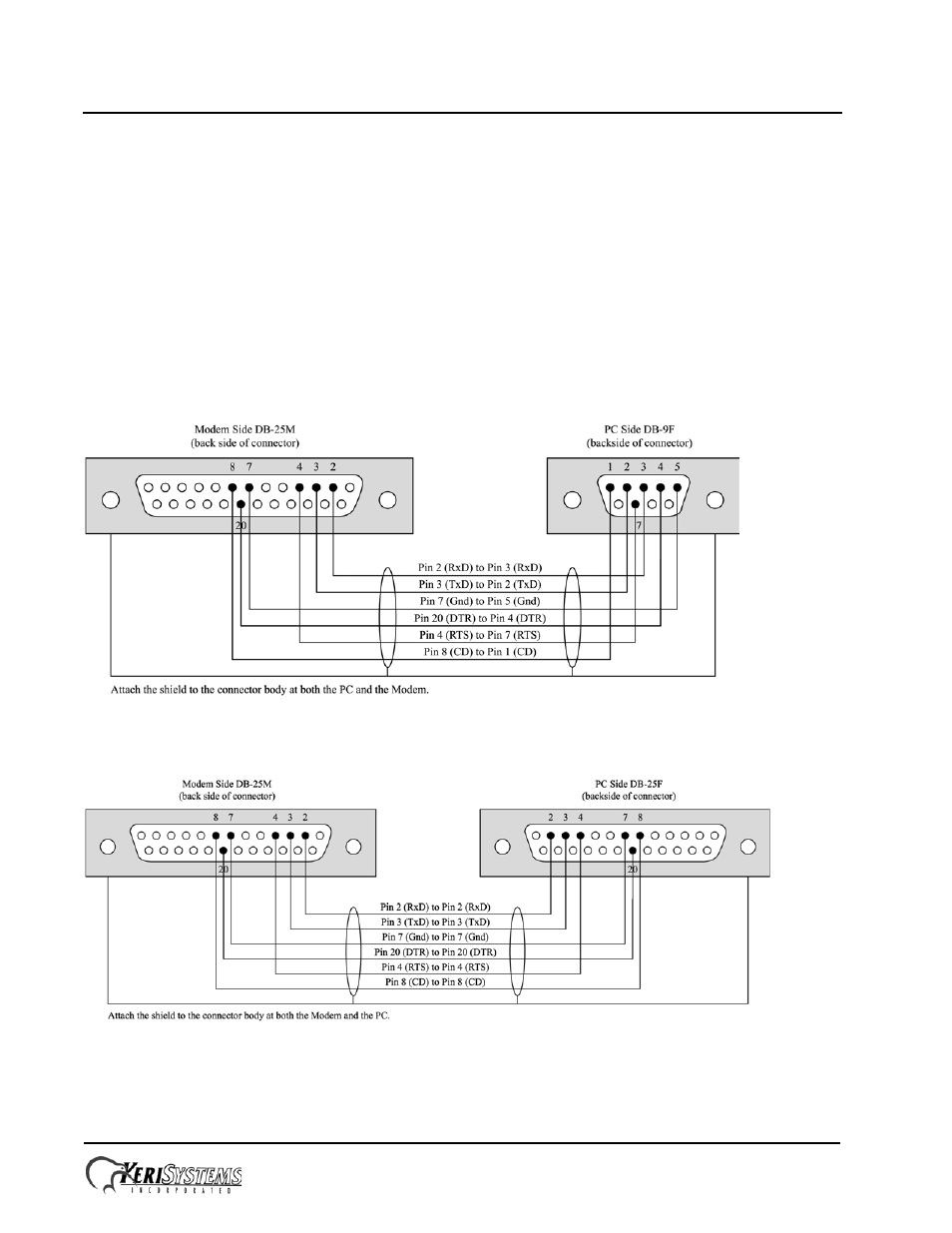

4.12.3.1 Modem/DB-25M to PC/DB-9F PC Serial COM Port Connection
Figure 18: Modem/DB-25M to PC/DB-9F PC Serial COM Port Connection
4.12.3.2 Modem/DB-25M to PC/DB-25F PC Serial COM Port Connection
Figure 19: Modem/DB-25M to PC/DB-25F PC Serial COM Port Connection
