PXL-500 / PXL-510 Tiger Controller
Quick Start Guide
Page 8 of 24 P/N: 01918-001 Rev. B
Make the following connections for a single-line LED or Essex Keypad Wiegand device.
•
The "A" input device is wired to TB5.
• The "B" input device is wired to TB6.

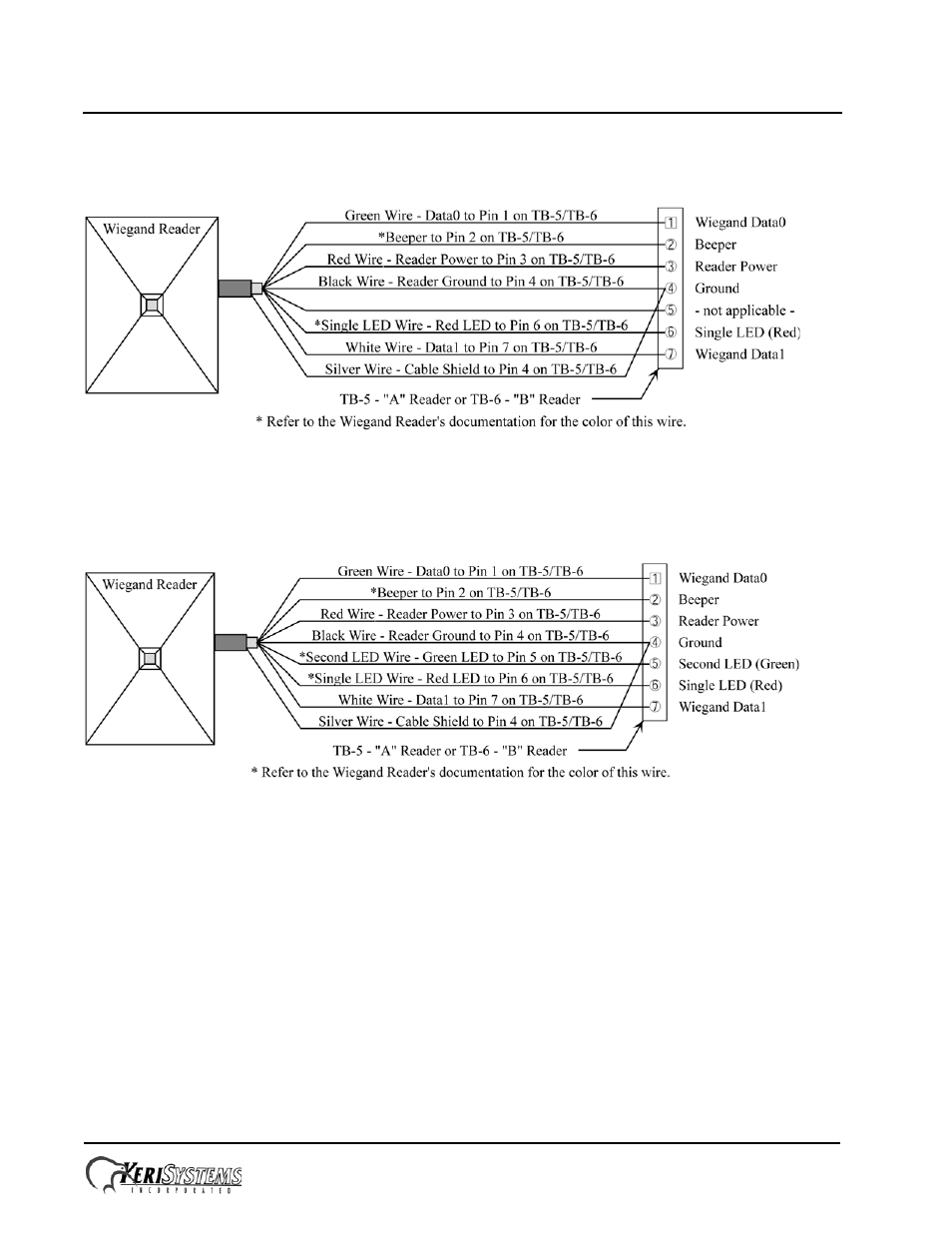

Figure 5: Single-Line LED and Essex Keypad Wiegand Reader Connections
Make the following connections for a dual-line LED Wiegand device.
•
The "A" input device is wired to TB5.
• The "B" input device is wired to TB6.
Figure 6: Dual-Line LED Wiegand Reader Connections
