Chapter 2 Preparing for Installation
Installation Site Requirements
2-18
Cisco XR 12406 Router Installation Guide
OL-13831-01

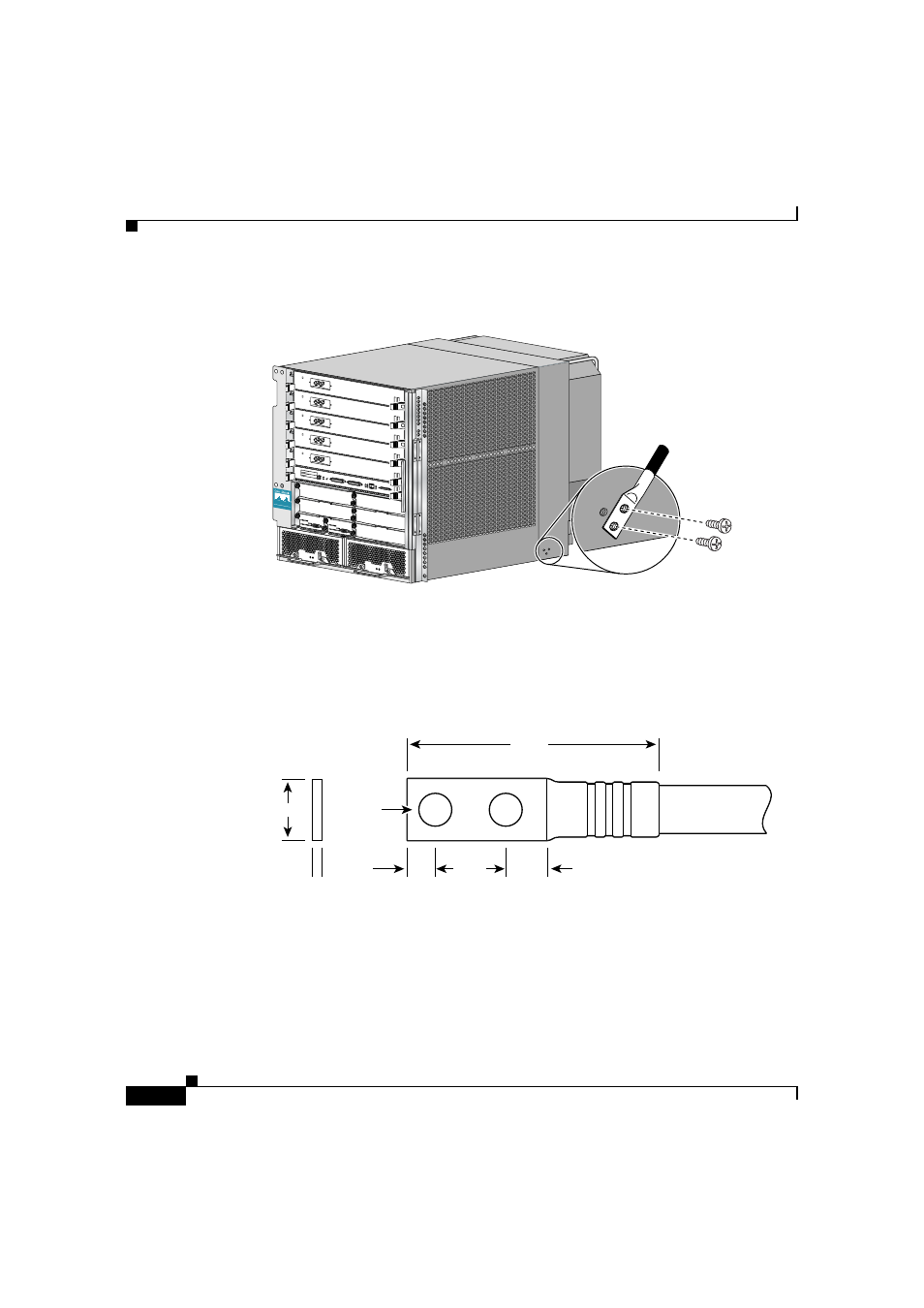

Figure 2-4 Supplemental Bonding and Grounding Port for NEBS
Compliance
Use a cable lug with two holes at 0.63" (16 mm) centers to connect to the chassis
with two 6.3 mm (M6) screws as shown in
Figure 2-5 . The lug can be ordered
from Cisco (Part Number 32-0607-01).
Figure 2-5 Cable Lug
SL OT -0
GIGABIT R OUTE P ROCESSOR
SL OT -1
CO LL
LIN K TX
RX RJ -45
MII
RE SE T
AU X
EJ EC T
CO NS OL E
CISCO 12000
SERIES GIGABIT SW ITCH ROUT ER
57744
Crimp area
25527
2.24
0.48
0.08
0.25 0.37 0.63
End View
Ø 0.267
2 holes
All measurements in inches
