Chapter 5 Maintaining the Router
Removing and Replacing an RP or a Line Card
5-48
Cisco XR 12406 Router Installation Guide
OL-13831-01
Step 5 Attach an appropriate number of velcro straps through the slots in the
cable-management bracket to support the network interface cables (
Figure 5-30 ).
a. Pull the small end of the velcro strap through the slot in the
cable-management bracket.
b. Insert the small end of the velcro strap into the slot in the wide end of the
velcro strap.
c. Pull the small end through the velcro strap slot to secure it to the cable-
management bracket.

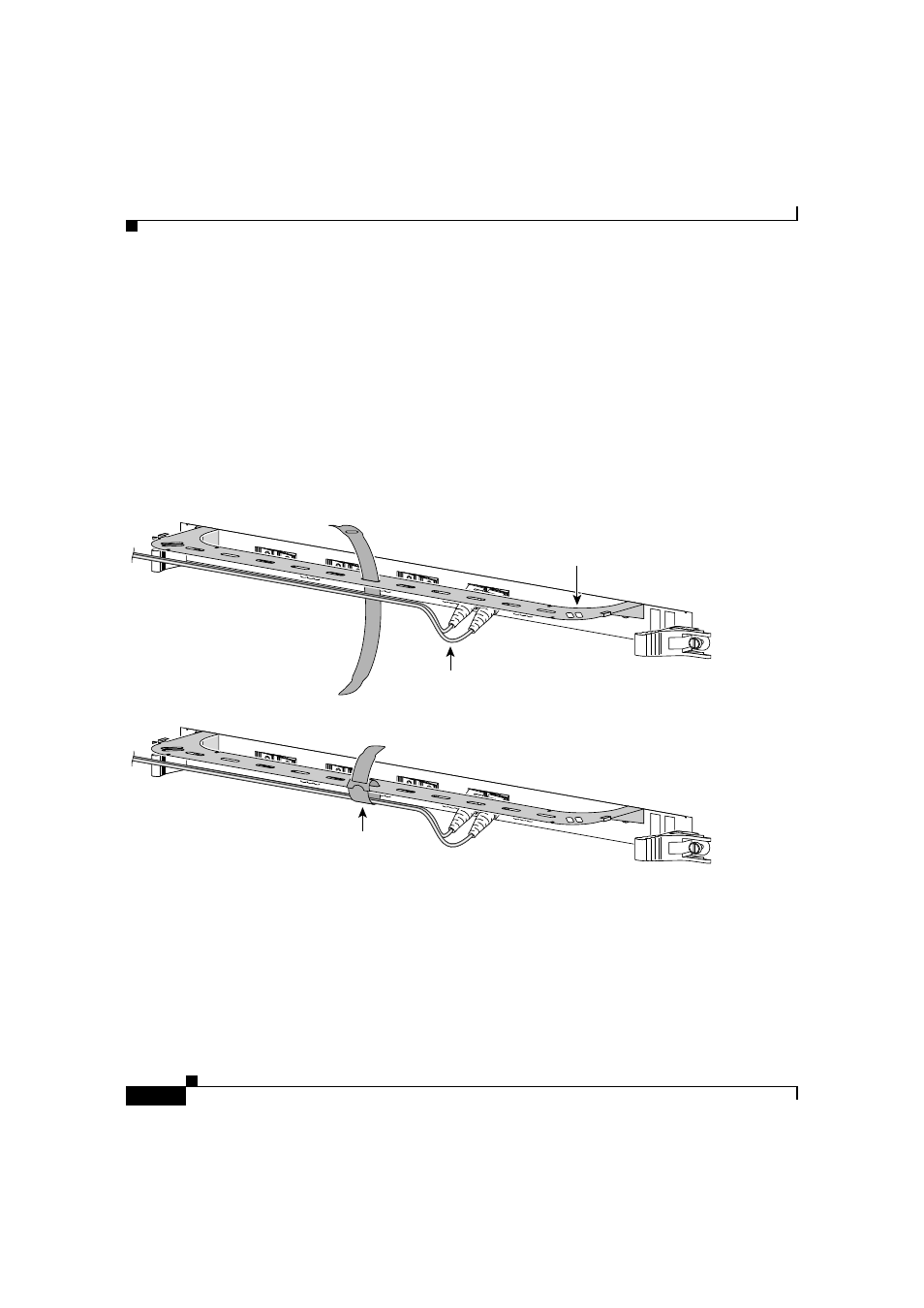

Figure 5-30 Line Card Cable-Management Brackets with Velcro Straps
OC-12/STM-4 POS
ACTIVE 0 CARRIER RX CELL
ACTIVE 0 CARRIER RX CELL
ACTIVE 0 CARRIER RX CELL
ACTIVE CARRIER RX CELL
57803
OC-12/STM-4 POS
ACTIVE
0 CARRIER RX CELL
ACTIVE 0 CARRIER RX CELL
ACTIVE 0 CARRIER RX CELL
ACTIVE CARRIER RX CELL
Line card
cable management
bracket
Network
interface
cables
Velcro
strap
