Chapter 5 Maintaining the Router
Removing and Replacing an AC Power Entry Module
5-16
Cisco XR 12406 Router Installation Guide
OL-13831-01
Step 5
Install the new power supply (
a.
Slide the power supply into the bay until it mates with its backplane
connector.
Caution
To prevent damage to the power shelf backplane connector, do not use excessive
force when inserting the power supply into the chassis.
b.
Close the ejector levers and tighten the captive screws to securely seat the
power supply to the backplane connector.

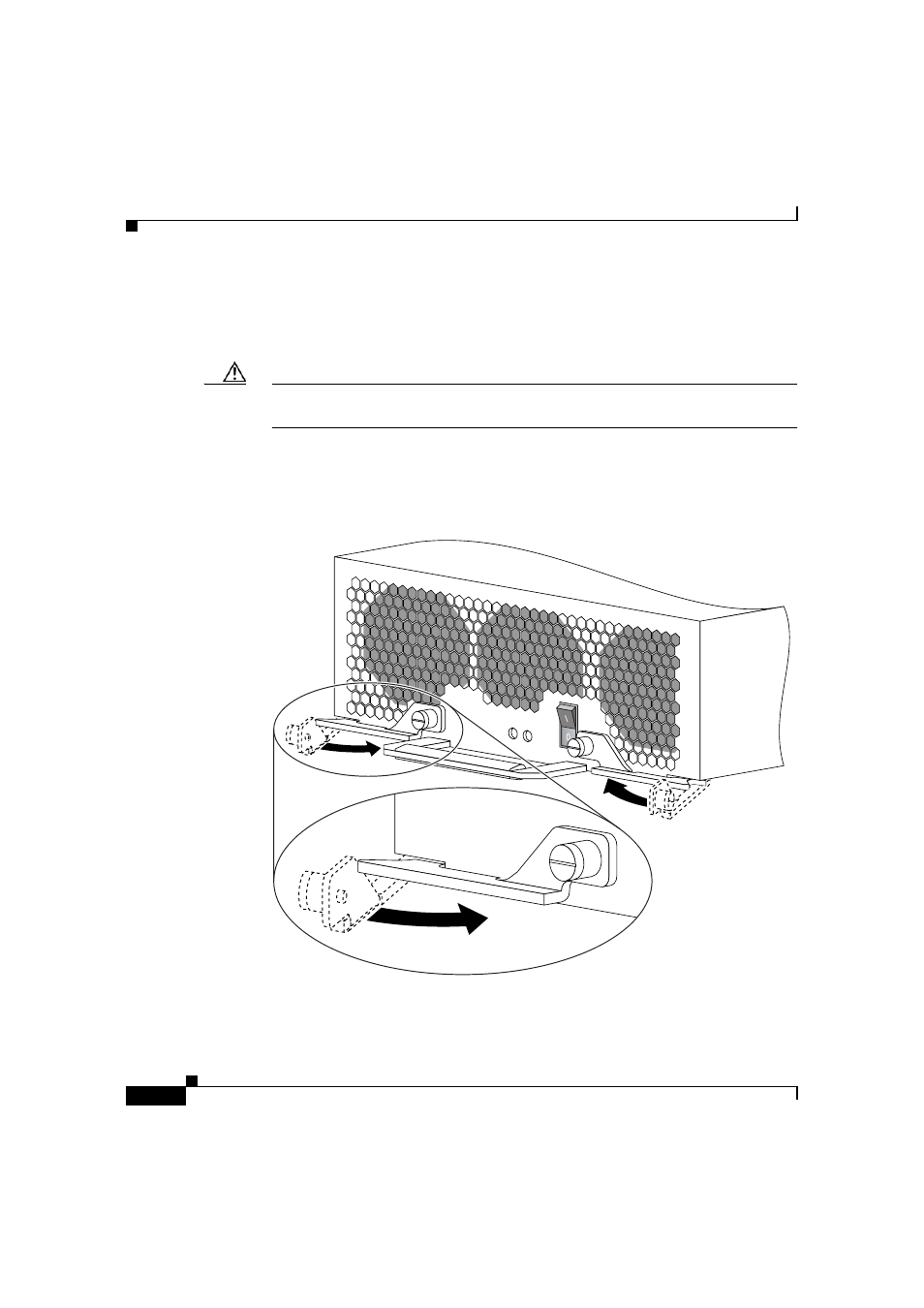

Figure 5-8
Seating the AC Power Supply
84373
