Cisco XR 12406 User Manual
Page 179
5-15
Cisco XR 12406 Router Installation Guide
OL-13831-01
Chapter 5 Maintaining the Router
Removing and Replacing an AC Power Entry Module
Step 4
Remove the PEM from the chassis (
a.
Loosen the captive screw on each ejector lever.
b.
Pivot open the levers to eject the power supply.
c.
Slide the power supply out of its bay while supporting it with your other hand.
Warning
The power supply weighs approximately 14 lb (6.35 kg). Use two hands to
remove the power supply.

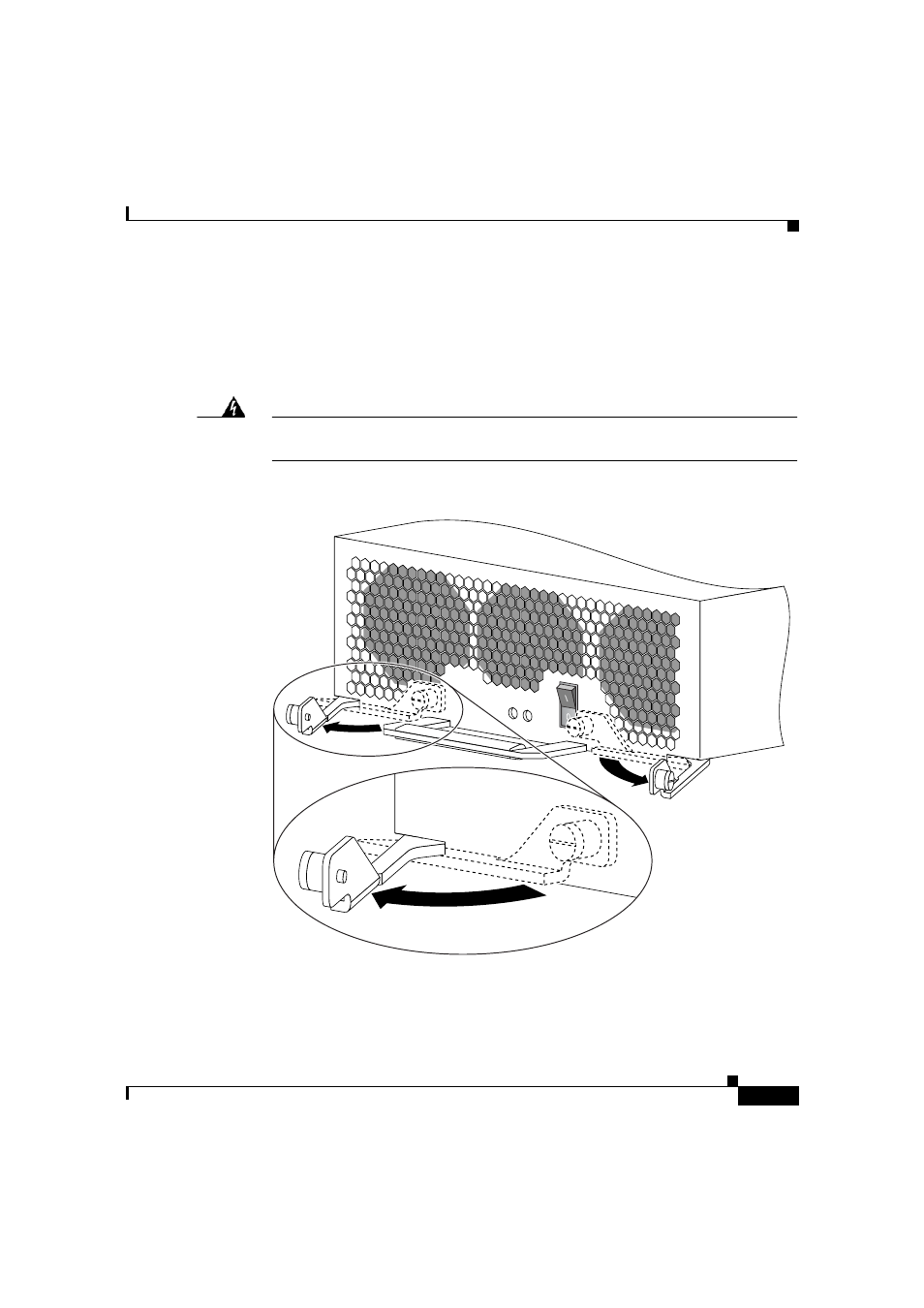

Figure 5-7
Releasing the AC Power Supply
84372
