Chassis Management
AlterPath BladeManager Manual 4-19

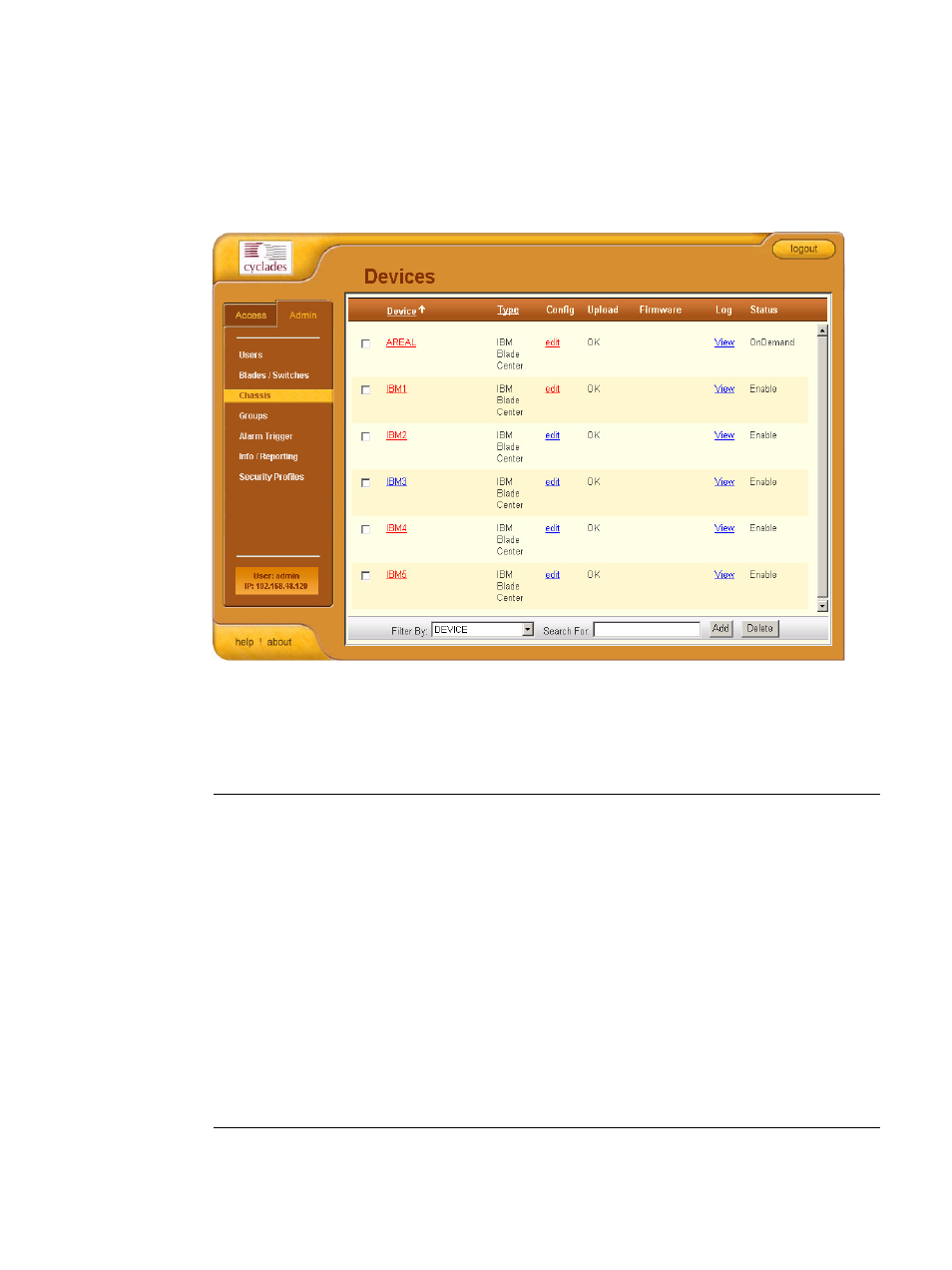

Chassis > Devices List Form
The Devices List form, the primary form of Chassis, allows you to view a list
of devices that are configured in the BladeManager. From this form, you can
add a new device, or select the device to modify or delete. .
Table 4-3: Chassis (Devices) List - Fieldnames and Elements
Fieldname / Element Definition
[unlabeled checkbox] Checkbox to select the device to be deleted.
Device Device name. Click on the device name to
connect to the console server or device.
Click on the column title (Device) to change
the sort order.
Type The type of device (IBM Blade Center).
Config The device configuration. Click on Edit to
display the Device Detail form for selected
device record or line.
Firmware The firmware version for this device.
