RESERVOIR FILL
PROCEDURES
The kettle's water level must be maintained at the
proper level. Under normal operating conditions, the
sealed water reservoir should never require the addition
of water.
If the red "low water" light comes on during use (while
the kettle is in an upright position), the water level has
reached a critically low level. The low water protection
control has automatically shut off the gas burner. The
following procedure must be completed before further
use:
NOTE: Have a qualified service technician repair the
leakage problem and add water to the unit. Ensure that
the red "low water" light is on when the kettle is upright.
On tilting kettles, it is normal for the red light to come on
when the kettle is in a tilted position.
CAUTION: Only distilled water should be used when
adding water to a partially filled water reservoir (If unit is
completely empty see KETTLE JACKET FILLING &
DRAINING PROCEDURES). Local tap water conditions
may cause kettle damage which is not covered under
warranty. Rust inhibitor is purchased locally. Read
directions and do not exceed manufacturer's
recommendation (excessive rust inhibitor can also
cause solidification).

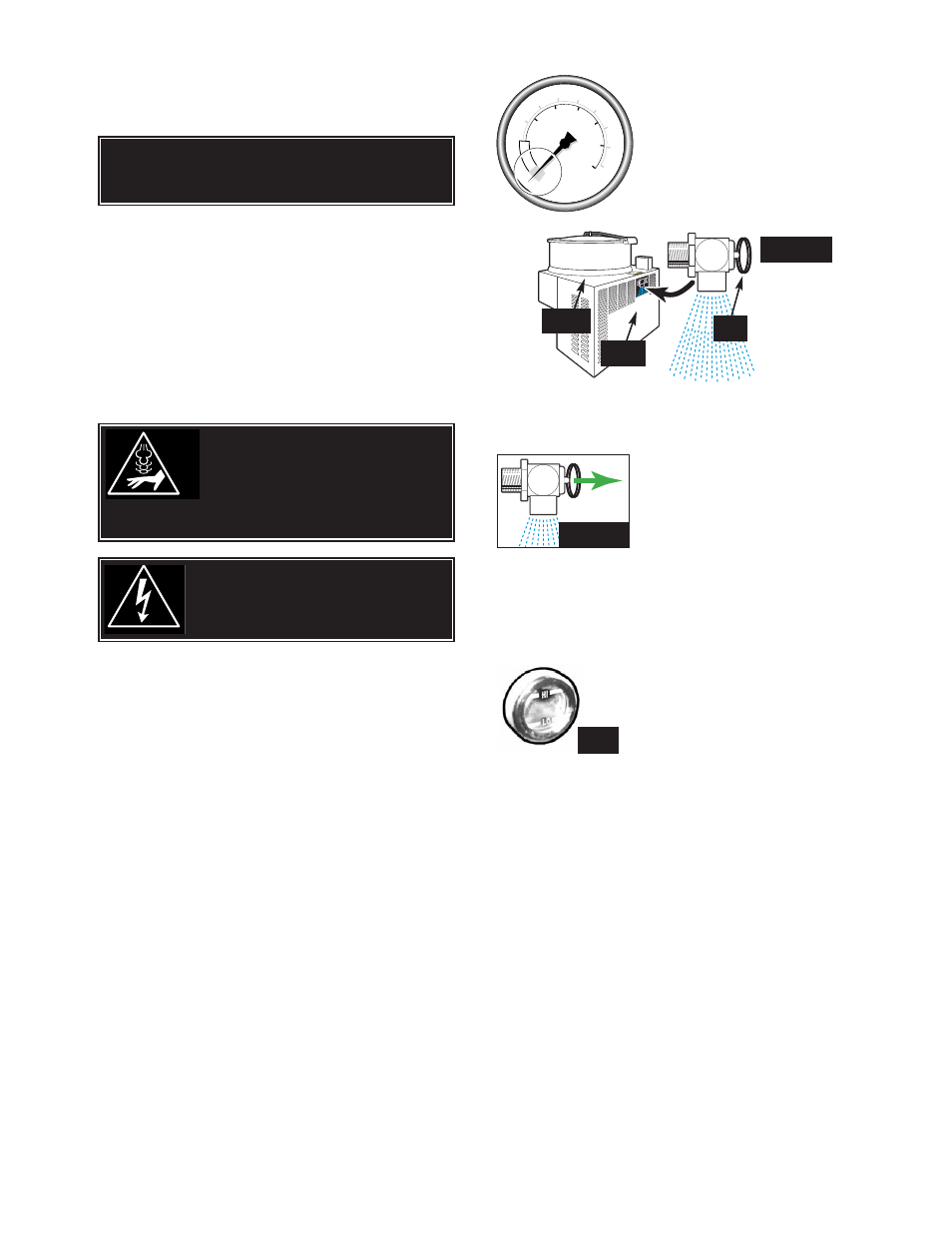

1. Ensure kettle is at room
temperature and pressure
gauge showing zero or less
pressure.
2. Shut off power to the kettle
at the fused disconnect
switch.
3. Remove Access Panel from back of main kettle
console.
4. Pull Pressure Relief Valve
Ring open to insure vessel is
not pressurized.
5. Remove main kettle Console
Cover.
6. Remove 1/4" copper tubing
and reducer bushing.
7. Add distilled water using a
funnel if necessary. Fill the
unit to the high level mark on
the Sight Glass.
8. Apply a thread sealant (i.e.
Teflon tape) to the reducer
bushing threads and replace.
9. Replace main kettle Console
Cover and Access Panel.
10. Restore power to unit at the fused disconnect
switch.
11. The kettle must now be vented. (Refer to the
KETTLE VENTING INSTRUCTIONS).
DANGER: PRESSURE RELIEF
VALVE WILL EXHAUST HIGH
TEMPERATURE STEAM. CONTACT
WITH SKIN COULD RESULT IN
SERIOUS BURNS. KEEP FACE,
HANDS AND BODY CLEAR OF DISCHARGE.
DANGER: WORKING ON MACHINES
WITH POWER COULD RESULT IN
SEVERE ELECTRICAL SHOCK.
WARNING: IMPROPER REFILLING OF
KETTLE JACKET WILL RESULT IN
IRREVERSIBLE DAMAGE TO UNIT.
50
0
100
150 200
250
300
350
400
40
50
60
0
10
20 30
psi
kPa
V EN
T
A IR
Pressure
Relief Valve
Access
Panel
Valve
Ring
Pressure
Relief Valve
Sight
Glass
Important- Pull ring on
Pressure Relief Valve prior
to removal to insure vessel
is not pressurized.
Console
Cover
