Cleveland Range KGL-40-T - Manual

Cleveland
™
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Fax: 1-216-481-3782
Web Site: www.ClevelandRange.com
Email: [email protected]
GAS KETTLES
MODELS: KGL-40-T KGL-80-T
KGL-60-T
Cleveland Standard Features
■ High efficiency Power Burner Heating System (62% to
65% efficiency)
■ Fast Heat-up and Recovery Time, 140M BTU’s on 40 gallon
models, 190M BTU’s on 60 gallon and larger
■ Insulated Heat Exchanger
■ Automatic Ignition System
■ Steam Jacket permanently filled with treated, distilled water.
Venting and/or refilling not required.
■ Solid State Controls, for Temperature and Low Water Safety,
in a plug-in Control Module
■ Control Panel includes:
■ Precise, consistent temperature control: less than
■ ± 1°C variance (ideal for simmering).
■ L.E.D. Indicators for Heat Cycle and Low Water Warning.
■ Power “on/off” Switch
■ Front mounted combination Pressure/Vacuum Gauge
■ Type 304 Stainless Steel with #4 finish on kettle and supports
■ Tilt Mechanism of roller bearings and case hardened
self-locking worm and segment gear
■ Support Legs with level adjustable feet, flanged for floor bolting
■ 50 psi Steam Jacket Rating and Safety Valve
■ Standard voltage is 115 volts, 60 Hz, single-phase,
supplied with cord and plug
■ Standard for natural gas operation
■ Typical approvals include AGA, CSA, CE, NSF and ASME
Options & Accessories
❐ Type 316 Stainless Steel Kettle Liner for high acid food
products (316)
❐ Pan Carrier (PCK)
❐ Flow Diverter (FD)
❐ Food Strainer (FS)
❐ Kettle Markings (KM)
❐ Cooking Baskets and Tri-Basket Supports (BS and TBS)
❐ Drain Strainers (DS-)
❐ Faucet Mounting Bracket (FBKT)
❐ 2˝ or 3" diameter Tangent Draw-Off Valve with Drain Strainer
(TD2 or TD3*), *TD3 for 60 and 80 gallon only and will raise
height of kettle by 5-5/8" (143mm)
❐ 3" diameter Butterfly Valve (BV3)
Shall be CLEVELAND, Gas-Fired Tilting Kettle, Model KGL- _____ T;
_____ gallons, 2⁄3 Steam Jacketed, Power Burner Heating System,
Insulated Heat Exchanger, 50 psi Steam Jacket Rating. Infinite
Variable Temperature Control, L.E.D. indicators for Heat Cycle and
Low Water Warning, Automatic Ignition System.
❐ Spring-assisted, hinged, rotatable, domed Stainless
Steel Cover (CHS-)
❐ Hot and Cold Water Faucet with Swing Spout (DPK)
❐ Kettle Accessory Kit (KAK) includes:
❐ Clean-up Brush(CB) ❐ 36” Kettle Paddle (KP)
❐ 36” Kettle Whip(KW) ❐ 36” Kettle Brush (KB)
❐ Draw-off Brush (DB) ❐ 24 oz. Ladle (KL)
❐ Automatic Water Meter (GMF or LMF)
❐ Measuring Strip (MS)
❐ Option for Propane Gas operation
❐ Correctional Package
❐ Heat Deflector Shield (HS001)
Short Form Specifications

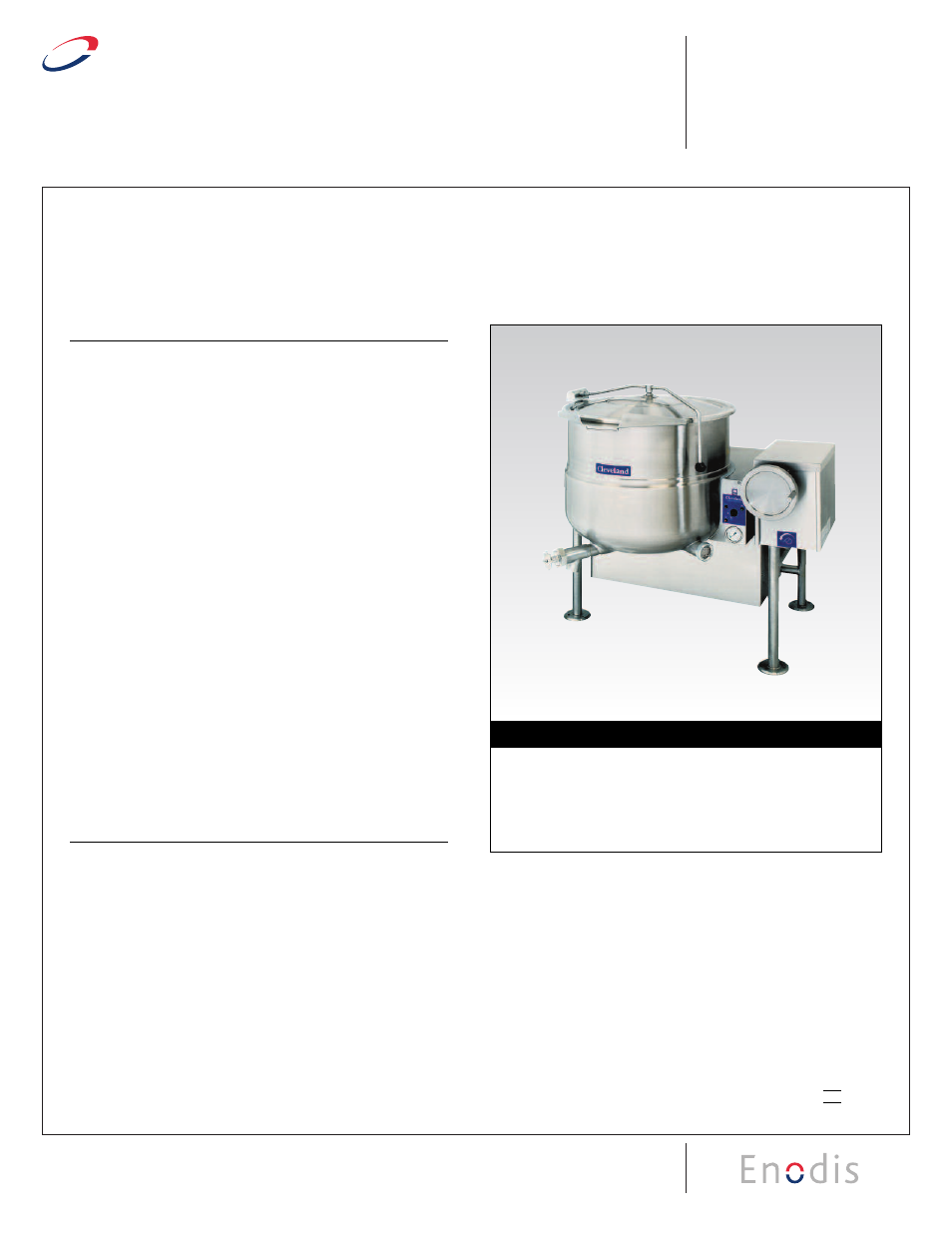

Shown with optional Spring Assisted
Cover and 2" Tangent Draw-Off Valve
LEG TYPE, GAS-FIRED KETTLES
TILTING, 2⁄3 STEAM JACKETED
“SPLASH PROOF SERIES”
40, 60, or 80 GALLONS (150, 225, or 300 LITERS)
SECT.
IX
PAGE
7
0707
