Cleveland Range KDP-60 User Manual
Cleveland, Tri-leg / pedestal, direct steam, Direct steam kettles

Cleveland
™
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Fax: 1-216-481-3782
Web Site: www.ClevelandRange.com
Email: [email protected]
DIRECT STEAM KETTLES
Cleveland Standard Features
■
Spring-assisted Cover: domed, hinged, one-piece
rotatable (not available on KDL-250)
■
Type 304 Stainless Steel construction, #4 finish on kettle and
supports
■
2˝ diameter Tangent Draw-off Valve with Drain Strainer
■
50 psi Steam Jacket Rating on 25 - 100 gal. models,
35 psi Steam Jacket Rating on 125 - 250 gal. models
■
50 psi chrome plated Safety Valve on 25 - 100 gal. models,
35 psi chrome plated Safety Valve on 125 - 250 gal. models
■
Condensate Drain Valve with insulated handle
■
For Tri-leg Models: Tri-leg supports of 1.63˝ O.D., Type 304
Stainless Steel tubular construction, with level adjustable
Flanged Feet for Floor Bolting
■
For Pedestal Models: Pedestal support of Type 304 Stainless
Steel with .75˝ thick floor plate, (level adjustable for sloping
floors), comes with Stainless Steel Collar for sealing
■
Faucet Mounting Bracket
■
Steam Control Inlet Valve
■ Typical approvals include NSF and ASME
Options & Accessories
❐ Type 316 Stainless Steel Kettle Liner for high acid food
products (316-G)
❐ Lift-off Covers (CL)
❐ Chrome plated Steam Control Kit includes: Steam Traps,
Condensate Strainers, Check Valves, nipples and fittings,
factory assembled and mounted on kettle (SCK1)
❐ 100 psi Pressure Option (PO) (for 125 gallons and larger)
❐ Cooking Baskets and Tri-Basket Supports (BS and TBS)
❐ Measuring Strips (MS)
❐ Gallon Markings (KM)
❐ Kettle Accessory Kit (KAK) includes:
❐ Clean-up Brush (CB)
❐ 36˝ Kettle Paddle (KP)
❐ 36˝ Kettle Whip (KW)
❐ 36˝ Kettle Brush (KB)
❐ Draw-off Brush (DB)
❐ 24 oz. Ladle (KL)
❐ Swing Funnels for drain (SF)
Shall be CLEVELAND, Direct Steam Kettle, Tri-leg or Pedestal sta-
tionary, Model KD __ - _____ . 2 3 Steam Jacketed, Type 304 Stainless
Steel with 50 psi Steam Jacket Rating on 80 - 100 gallon, 35 psi on125
gallon and larger. Supports to be Stainless Steel. Includes spring-
assisted, Domed Cover and 2 Tangent Draw-off Valve; heavy re-
enforced Rolled Rim. To operate, connect directly to a steam source
supplying from 5 to 45 psi steam.
❐ Pressure Reducing Valve for regulating incoming
steam pressure of over 45 psi (PRV-K)
❐ Hot and cold or cold only Kettle Filler with
60˝ Hose (DKF-K or SKF-K)
❐ Automatic Water Meter (GMF or LMF)
❐ Drain Strainers (DS-)
❐ Water Meter Stand (SWM)
❐ 3" diameter Tangent Draw-Off Valve w/Strainer (TD3)
❐ 3" diameter Butterfly Valve (BV3)
❐ Pre-Rinse Spray Head and Hose (PRSK)
❐ Correctional Packages
❐ Insulated Outer Jacket (IOJ)
Short Form Specifications

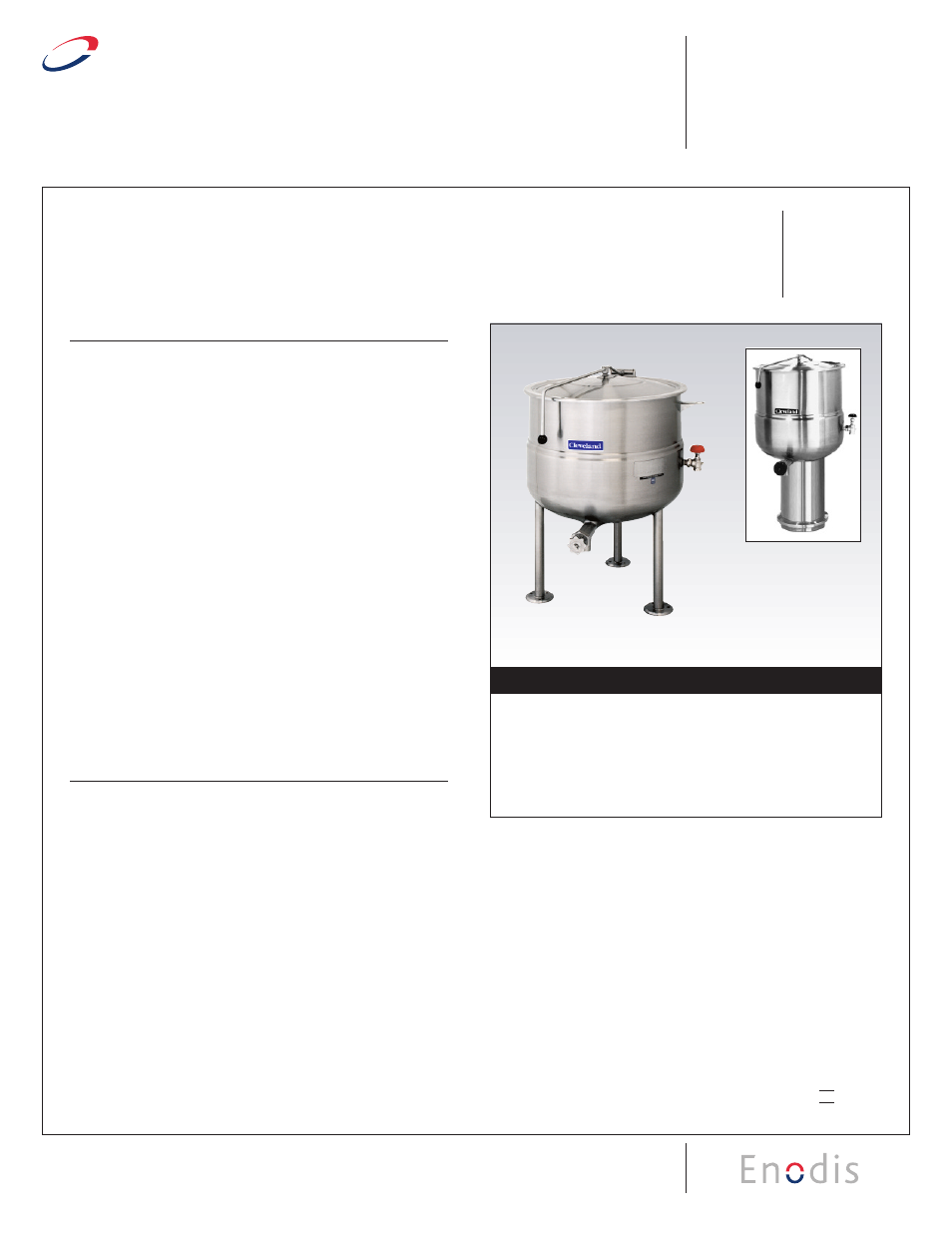

Shown with optional Steam Control Kit
MODELS:
KDL-25
KDL-80
KDL-150
KDP-40
KDL-40
KDL-100
KDL-200
KDP-60
KDL-60
KDL-125
KDL-250
KDP-80
KDP-100
TRI-LEG / PEDESTAL, DIRECT STEAM
STATIONARY, 2⁄3 STEAM JACKETED
25, 40, 60, 80, 100, 125, 150, 200 OR 250 GALLONS
(100, 150, 225, 300, 375, 475, 575, 760 OR 950 LITERS
SECT.
X
PAGE
17
0707
