DIRECT STEAM KETTLES
Cleveland Standard Features
■
Kettle legs of 1
5
⁄
8
˝ OD, type 304 Stainless Steel, with 3 level
adjustable feet, with three-bolt flanges for floor bolting
■
Type 304 Stainless Steel construction, with #4 finish
on kettle and supports
■
Tilting Mechanism with permanently lubricated, self-locking,
Worm Drive of space saving design
■
50 psi Steam Jacket Rating
■
50 psi chrome plated Safety Valve
■
High Capacity Pouring Lip
■
Condensate Drain Valve with insulated handle
■
Steam Control Valve mounted on console
■
Typical approvals include NSF and ASME
Options & Accessories
❐ Type 316 Stainless Steel Kettle Liner for high acid food
products (316)
❐ Lift-off Covers (CL)
❐ Steam Control Kit includes: Steam Trap, Condensate Strainer,
Check Valve, nipples and fittings, factory assembled and
mounted on kettle (SCK2)
❐ Spring-assisted, hinged, rotatable, domed Stainless Steel
Cover (CHS-)
❐ Hot and Cold Water Faucet, comes with Swing Spout (DPK)
❐ 2˝ or 3" diameter Tangent Draw-Off Valve (TD2 or TD3*), *TD3 for
60 gallon only and will raise height of kettle by 5-5/8" (143mm)
❐ 3" diameter Butterfly Valve (BV3)
❐ Cooking Baskets and Tri-Basket Supports (BS and TBS)
❐ Pan Carrier (PCK)
❐ Measuring Strips (MS)
❐ Gallon Markings (KM)
❐ Kettle Accessory Kit (KAK) includes:
❐ Clean-up Brush (CB)
❐ 36˝ Kettle Paddle (KP)
❐ 36˝ Kettle Whip (KW)
❐ 36˝ Kettle Brush (KB)
❐ Draw-off Brush (DB)
❐ 24 oz. Ladle (KL)
❐ Swing Funnels for drain (SF)
❐ Faucet Mounting Bracket (FBKT)
❐ Pressure Reducing Valve for regulating incoming
steam pressure of over 45 psi (PRV-K)
❐ Hot and cold, or cold only, Kettle Filler with 60˝
Hose (DKF-K or SKF-K)
Shall be CLEVELAND, Direct Steam Kettle, Tri-leg mounted, Model
KDL - _____ - T, _____ gallons, Tilting (hand or power) 2 3 Steam
Jacketed. Type 304 Stainless Steel kettle and support legs. 50 psi
Steam Jacket Rating; Steam Control Valve; heavy re-enforced
Rolled Rim. To operate, connect directly to a steam source sup-
plying 10 to 45 psi steam.
❐ Automatic Water Cooling* (AWC-1)
* requires Console Mounting Option
❐ Alternate Mounting Systems - Console Mounting
❐ Automatic Water Meter (GMF or LMF)
❐ Water Meter Stand (SWM)
❐ Food Strainer (FS)
❐ Flow Diverter (FD)
❐ Drain Strainers (DS-)
❐ Pre-Rinse Spray Head and Hose (PRSK)
❐ Heat Deflector Shield (HS001)
❐ Correctional Packages
Short Form Specifications

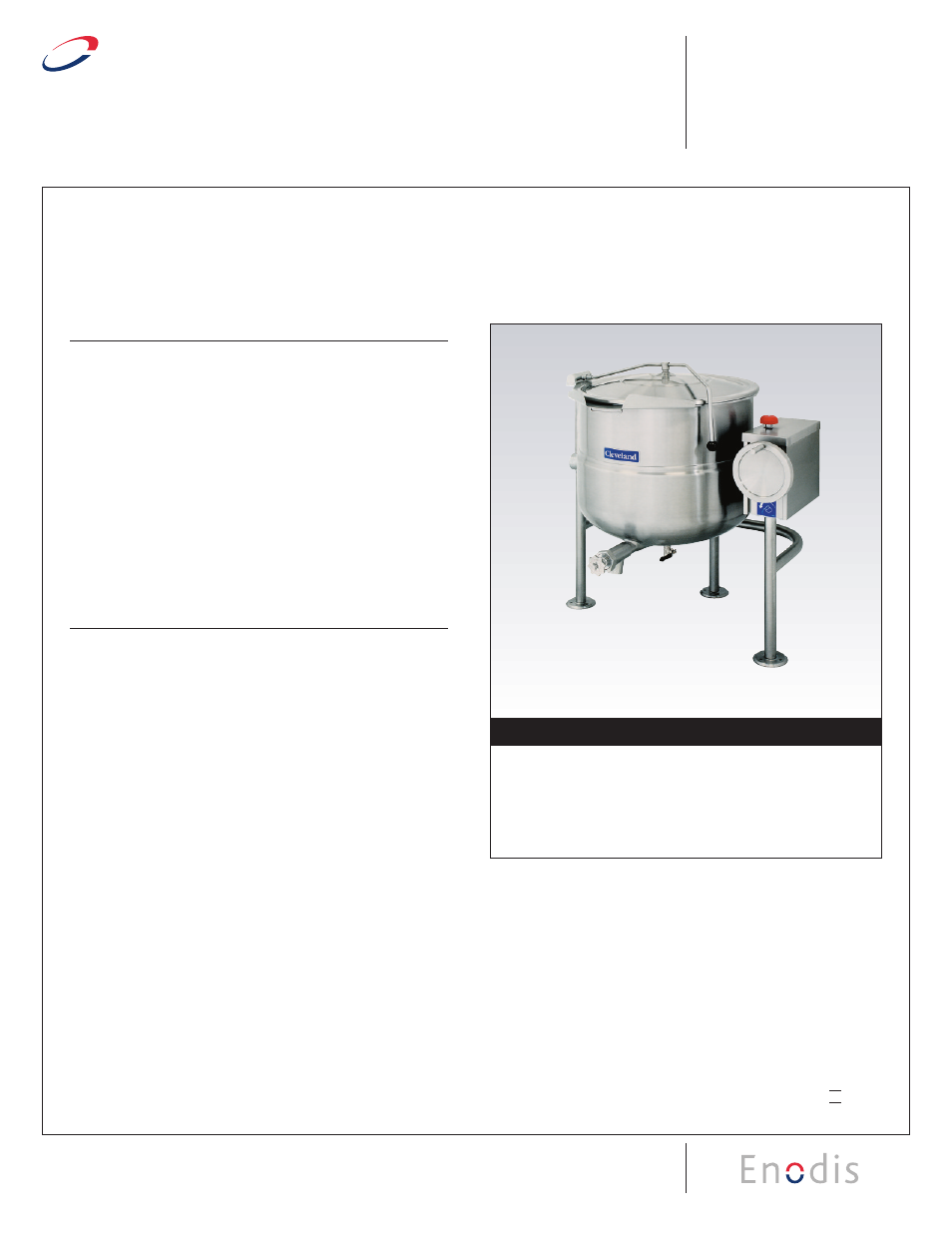

Shown with optional Spring-Assisted Cover, 2" Tangent Draw-Off Valve
MODELS:
KDL-25-T
KDL-60-T
KDL-40-T
TRI-LEG, DIRECT STEAM
TILTING, 2⁄3 STEAM JACKETED
25, 40 or 60 GALLONS (100, 150 or 225 LITERS)
