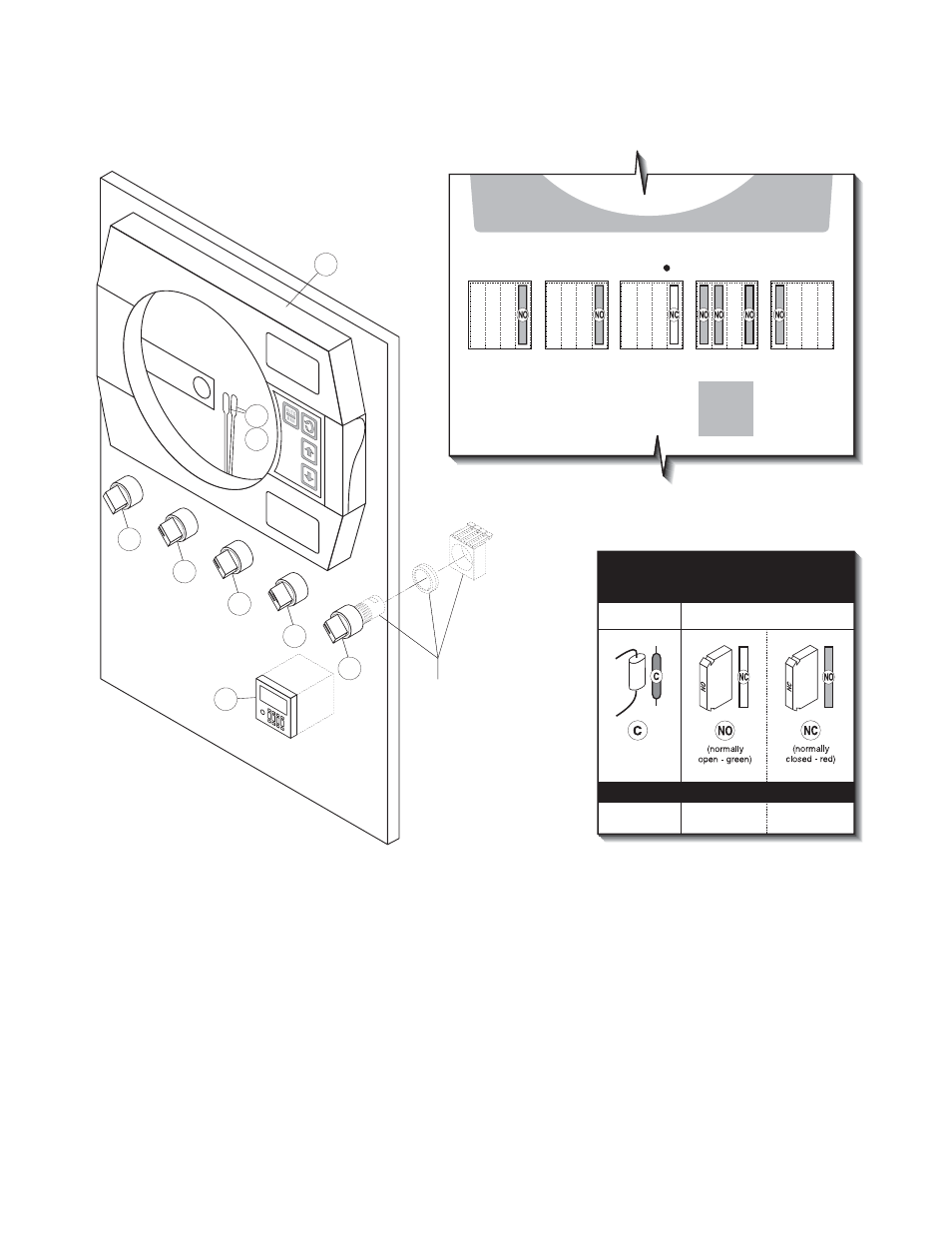

CONTROL BOX -
WATER METER & CHART RECORDER
1
8
2
3
INCLUDED WITH
ALL SWITCHES.
4
5
6
7
5
Contactor Cartridges Capacitor
INDEX
PART NO.
KE52074 KE603208-9 KE603208-8
EMPTY EMPTY EMPTY
INTERRUPT
EMPTY
START
CONTINUE RESET
EMPTY EMPTY EMPTY
OFF ON
START
WATER METER
EMPTY EMPTY EMPTY
BYPASS ACTIVE OFF ON
MAIN POWER
EMPTY EMPTY EMPTY
ITEM NO. PART NO. DESCRIPTION QTY.
1. KE53257 Digital Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. SE50354 Pen Tip, red (pkg. of 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
3. SE50354 Pen Tip, green (pkg. of 5) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
4. KE003209-1 Switch Assembly, On/Off - Maintained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
5. KE003209-1 Switch Assembly, On/Off - Maintained . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
6. KE003209-6 Momentary Spring Return Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .1
7. KE003209-7 Momentary Spring Return Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . .2
8. KE53136-1 Chart Recorder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
NOTES: For units built prior to December 2006,
the complete switch assembly must be
ordered.
*
*
