Cleveland Range HA-MKGL-80 - Manual (Page 13)

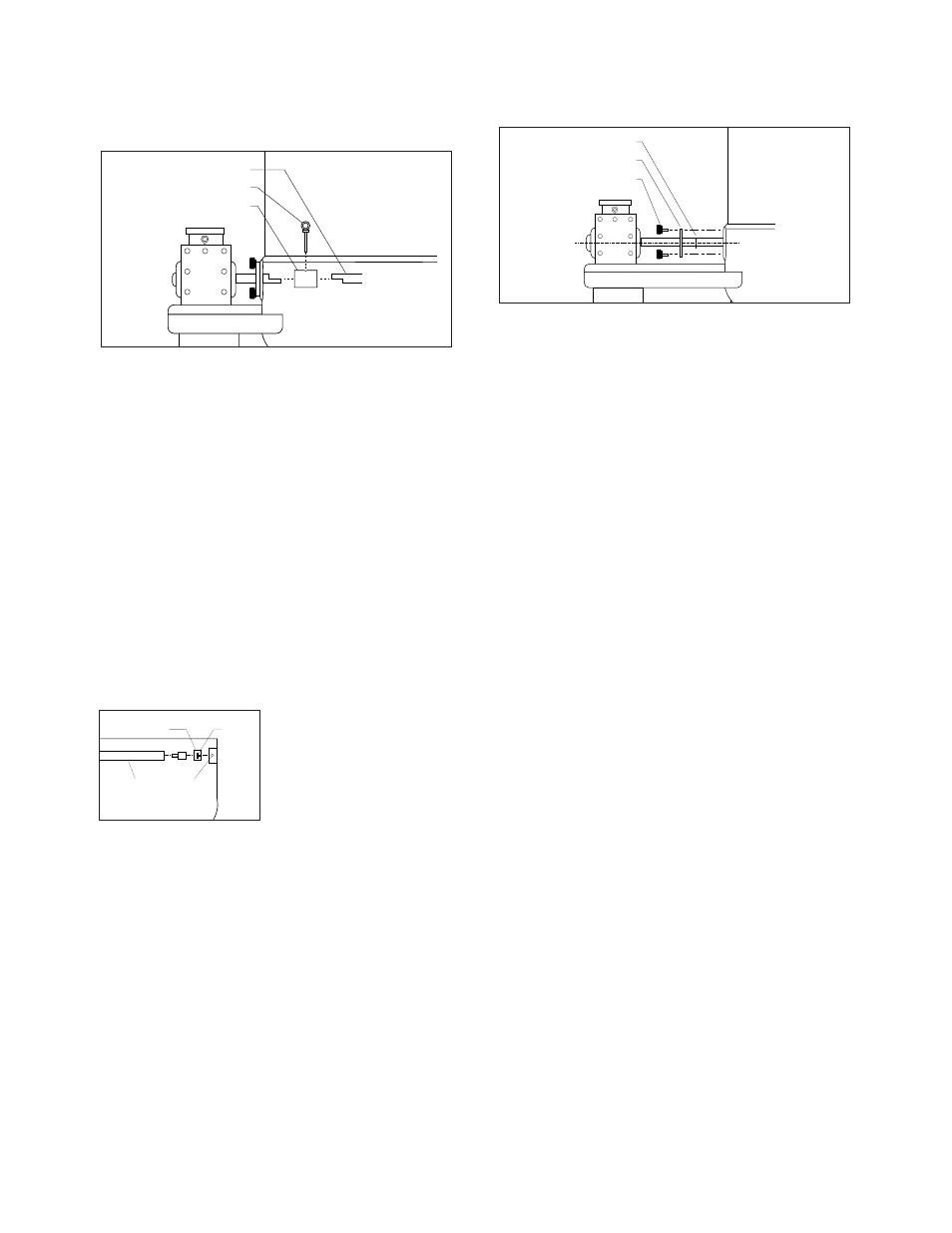

AGITATOR
To remove and clean agitator (two-person
job):
Removing Agitator
1. Remove scraper blades.
2. Rotate agitator until pull pin is on top side.
3. Turn power OFF.
4. Pull pin out.
5. Slide coupling toward kettle wall, and carefully lift
agitator pulling back to lift out.
6. Clean in a sink, using a warm water and mild
detergent solution.
7. Rinse with fresh water.
AGITATOR BUSHING
With agitator out, remove bushing by:
1. Remove bushing
by turning 1/4 turn
and pulling away
from the kettle wall.
2. Clean, rinse and
sanitize bushing and bushing mounting area.
3. Lubricate metal surfaces with food safe grease.
4. Install bushing by locating retaining pin and sliding
bushing on.
5. Rotate to lock into position.
QUAD RING
To clean agitator quad ring:
Cleaning Quad Ring
1. Remove retaining knobs.
2. Slide shaft seal retainer plate and quad ring away
from kettle body.
3. Clean quad ring, shaft, and seal retainer plate with
clean cloth.
4. Rinse with fresh.
5. Apply light coat of food safe grease to both sides
of the quad ring.
6. Slide quad ring back into original position, making
sure it does not twist.
7. Slide retainer plate back toward kettle, replacing
retaining knobs.
8. Tighten with hand pressure only.
Agitator shaft
Pin
Coupling
Quad ring
Seal retainer plate
Retaining knobs
Slot Bushing
Retaining
pin
Agitator
Shaft
