Agitator
Shaft
1 2 3 4 5 7 6

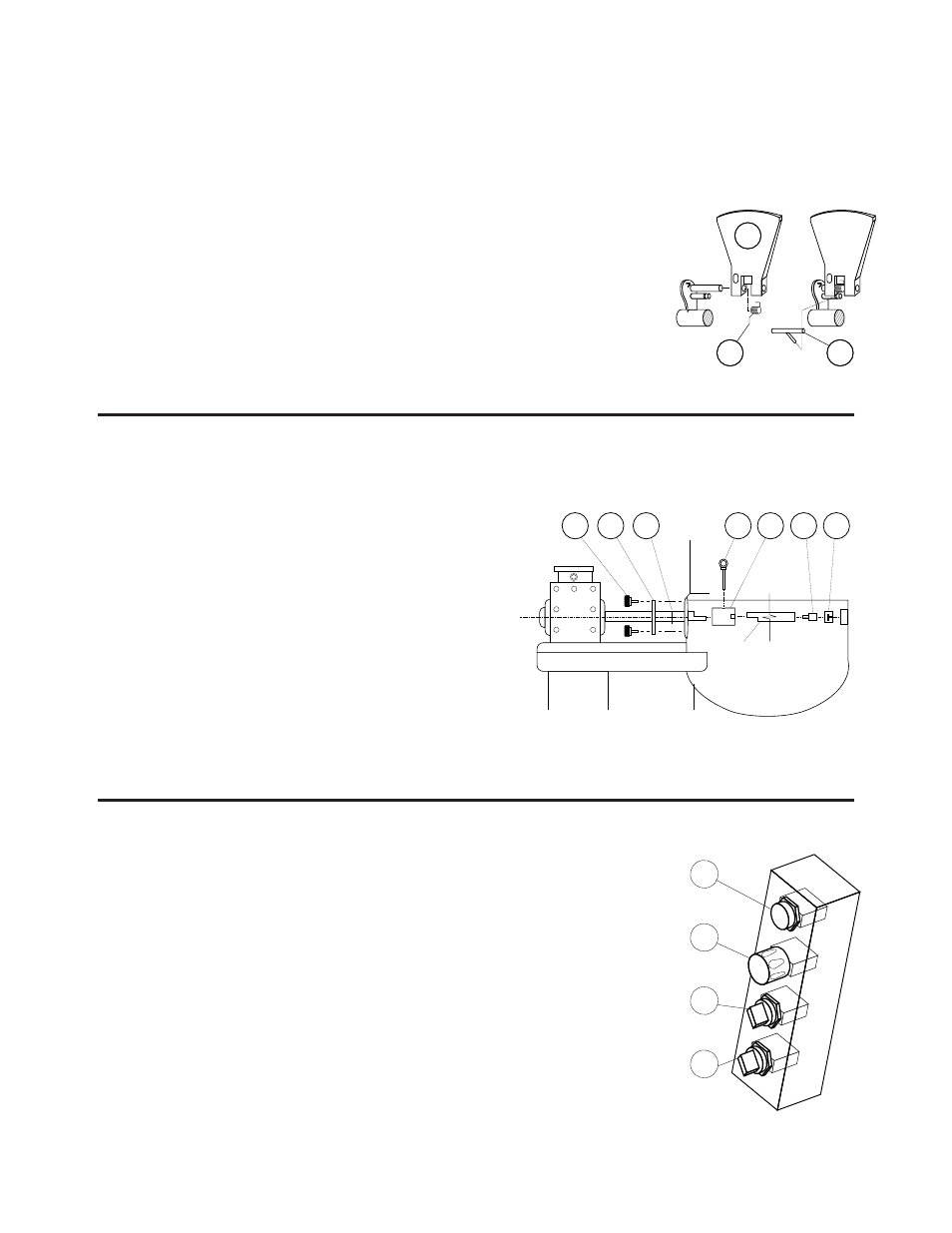

SCRAPER BLADES
ITEM NO. PART NO. DESCRIPTION QTY.
1. KE54602 SCRAPER BLADE . . . . . . . . . . . . . . .7
2. KE54608 SPRING . . . . . . . . . . . . . . . . . . . . . . .7
3. KE01976 SPRING REMOVAL TOOL . . . . . . . . 1
1
2 3
AGITATOR SEAL ASSEMBLY
ITEM
NO. PART NO. DESCRIPTION QTY.
1. KE01911 RETAINING KNOBS . . . . . 3
2. KE54592 SEAL RETAINER PLATE . . 1
3. FA05002-8 "O" RING . . . . . . . . . . . . . . 1
4. KE54594 PIN . . . . . . . . . . . . . . . . . . 1
5. KE54583 COUPLING . . . . . . . . . . . . 1
6. KE54593 IDLER PIN . . . . . . . . . . . . 1
7. KE54590 BUSHING . . . . . . . . . . . . . 1
OPERATING CONTROLS
ITEM NO. PART NO. DESCRIPTION QTY.
1. KE54531 AGITATOR STOP . . . . . . . . . . . . . . . . . . . . . . 1
2. KE54530 AGITATOR START . . . . . . . . . . . . . . . . . . . . . 1
3. KE54529 POWER ON/OFF SWITCH . . . . . . . . . . . . . . . 1
4. KE54532 SPEED CONTROL . . . . . . . . . . . . . . . . . . . . . 1
2
1
3
4
SERVICE PARTS
