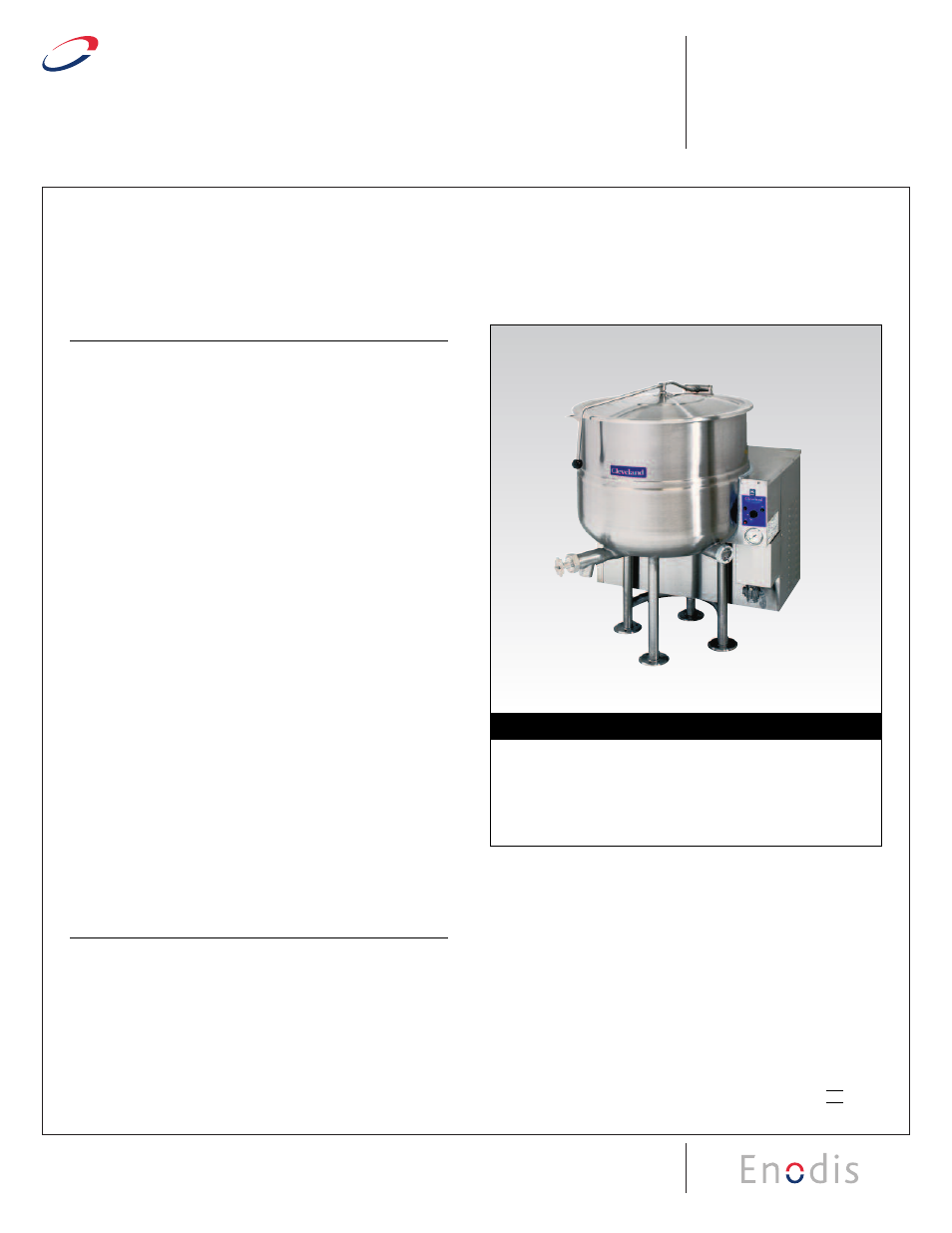

GAS KETTLES
MODELS: KGL-40 KGL-80
KGL-60 KGL-100
Cleveland Standard Features
■ High efficiency Power Burner Heating System
(62% to 65% efficiency)
■ Fast Heat-up and Recovery Time, 140M BTU’s on 40 gallon
models, 190M BTU’s on 60 gallon and larger
■ Insulated Heat Exchanger
■ Automatic Ignition System
■ Steam jacket permanently filled with treated, distilled water.
Venting and/or refilling not required
■ Solid State Controls, for Temperature and Low Water Safety,
in a plug-in Control Module
■ Control Panel includes:
■ Precise, consistent temperature control: less than
■ ± 1°C variance (ideal for simmering).
■ L.E.D. Indicators for Heat Cycle and Low Water
■ Warning.
■ Power “on/off” Switch
■ Front mounted combination Pressure/Vacuum Gauge
■ Type 304 Stainless Steel with #4 finish on kettle and
supports
■ 2˝ diameter Tangent Draw-Off Valve with Drain Strainer
■ Support Legs with level adjustable feet, flanged for floor
bolting
■ Spring-assisted, hinged, rotatable, domed Stainless
Steel Cover
■ 50 PSI Steam Jacket Rating and Safety valve
■ Standard voltage is 115 volts, 60 Hz, single-phase, supplied
with cord and plug
■ Standard for natural gas operation
■ Faucet Mounting Bracket (FBK)
■ Typical approvals include AGA, CSA, CE, NSF and ASME
Options & Accessories
❐ Type 316 Stainless Steel Kettle Liner for high acid food
products (316)
❐ Hot and Cold Water Faucet with Swing Spout (DPK)
❐ Cooking Baskets and Tri-Basket Supports (BS and TBS)
❐ Drain Strainers (DS-)
❐ 3" diameter Tangent Draw-off Valve with Drain Strainer (TD3)
Shall be CLEVELAND, Gas-fired Stationary Kettle, Model
KGL-_____ ; _____ gallons. 2⁄3 Steam Jacketed, Power Burner Heating
System, Insulated Heat Exchanger, 50 psi Steam Jacket Rating.
Infinite Variable Temperature Control, L.E.D. indicators for Heat Cycle
and Low Water Warning, spring-assisted Cover, 2˝ Tangent Draw-off
Valve with Drain Strainer, Automatic Ignition System.
❐ Kettle Accessory Kit (KAK) includes:
❐ Clean-up Brush(CB) ❐ 36” Kettle Paddle (KP)
❐ 36” Kettle Whip(KW) ❐ 36” Kettle Brush (KB)
❐ Draw-off Brush (DB) ❐ 24 oz. Ladle (KL)
❐ Automatic Water Meter (GMF or LMF)
❐ Measuring Strip (MS)
❐ Option for Propane Gas operation
❐ Correctional Package
❐ Heat Deflector Shield (HS001)
Short Form Specifications
LEG TYPE, GAS-FIRED KETTLES
STATIONARY, 2⁄3 STEAM JACKETED
“SPLASH PROOF SERIES”
40, 60, 80 or 100 GALLONS (150, 225, 300 or 337 LITERS)
SECT.
IX
PAGE
9
