CONTROLS
DPI SOUND CONTROL
BAUNCE +/-
CENTER +/-
REAR +/-
*
. to balance the sound level of
the Front Right and Left
speakers.
. to adjust the sound level of
the center speaker.
..to adjust the sound level of
the surround speakers.
to switch the system to standby mode.
DOLBY PRO LOGIC
Dolby Pro Logic
Notes for remote control:
- First select the source you wish to control by pressing
one of the source select buttons on the remote control
(e.g. CD. TUNER, TAPE 1/2 orAUXj.
- Then select the desired function (PLAY, NEXT, etc.l.
This state-of-the-art Dolby Pro Logic mini system enables
you to experience and enjoy a Home Cinema sound
ambience. The Pro Logic system allows more accurate
definition of the individual sound sources. It produces
greater sound separation between channels and provides
pinpoint sound localisation. Pro Logic provides four
outputs which are called Left, Center, Right and Surround
(Rear). Front signals are produced from the pair of Left
and Right speakers and a Center speaker. The surround
signal is reproduced by two speakers placed at the rear
of the listening area. Although the surround signal is
mono, a pair of speakers is necessary to produce the
correct diffused sound field.
This Pro Logic decoder enables you to decode the
following mode : Dolby Surround, Center Phantom,
Dolby 3 Stereo or normal Stereo.
Setting up the Dolby Pro Logic system
You need to do a proper set up in order for you to enjoy
the Home Cinema sound to the fullest. First you need to
do a complete speakers' connection.

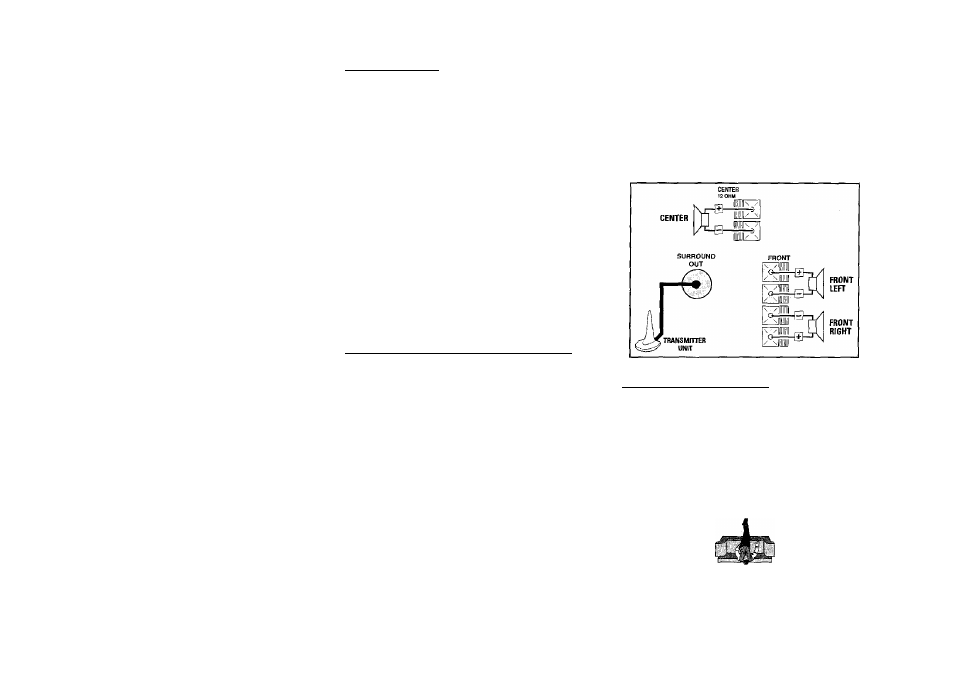

5-Speakers Connection
• Front speakers : Connect the black wires to the black
FRONT terminals and the red wires to the red FRONT
terminals.
• Center speaker .-Connect the black or non-marked
wires to the black CENTER terminal and the blue or
marked wires to the blue CENTER terminal.
• Wireless Rear (surroundl speakers : Connect the
active speakers to the mains with the mains cables
provided. Switch on the active speakers with the
POWER switch.
Transmitter unit : Connect the SURROUND terminal
of the transmitter unit with the PRE OUT (SURROUND)
terminal of the appliance using the supplied cinch
cable. Connect the AC/DC adapter supplied to the 14V
socket of the transmitter unit. Then connect the
AC/DC adaptor to the mains.
Positioning tbe Speakers
To get the best surround sound effect, place the speakers
as follow.
SYSTEM
FRONT
RIGHT
