IC Realtime 4 Channel Forensic Network Video Recorder User Manual
Page 86
77
Figure 4-96
4.2.7.2 Abnormality

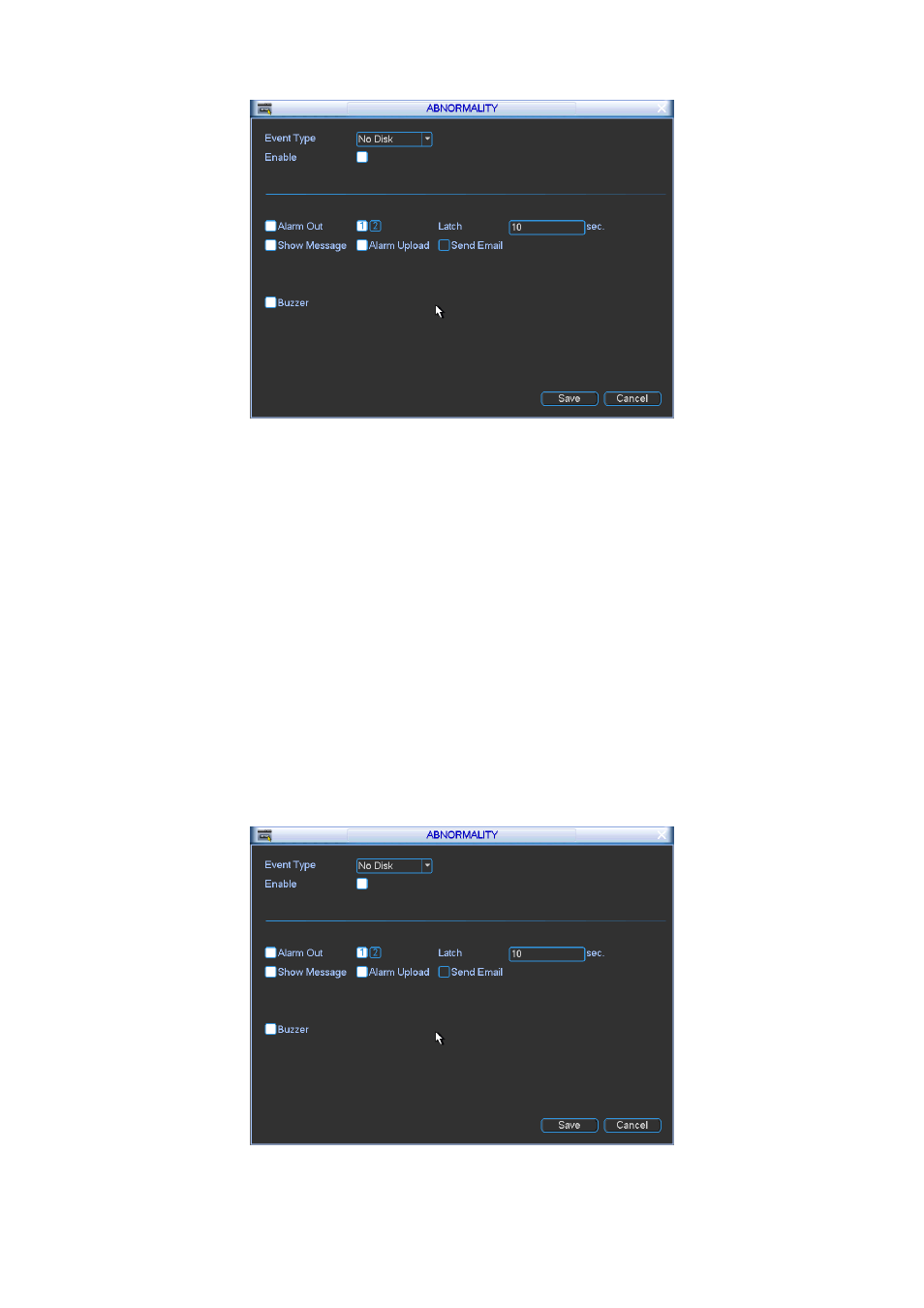

Abnormality interface is shown as in Figure 4-97.
z
Event type: There are several options for you such as disk error, no disk, disk no space,
net disconnection,, IP conflict, MAC conflict, burning error and etc. (multiple choices)
z
Alarm output: Please select alarm activation output port (multiple choices).
z
Latch: Here you can set corresponding delaying time. The value ranges from 1s-300s.
System automatically delays specified seconds in turning off alarm and activated output after
external alarm cancelled.
z
Show message: system can pop up the message in the local screen to alert you when
alarm occurs.
z
Alarm upload: System can upload the alarm signal to the network (including alarm centre)
if you enabled current function.
z
Send email: System can send out email to alert you when alarm occurs.
z
Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.
Figure 4-97
