53
z Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video
quality.
z Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image
quality.
z Video/audio: You can enable or disable the video/audio.
z Overlay: Click overlay button, you can see an interface is shown in Figure 4-58.
— Cover area (Privacy mask): Here is for you to set privacy mask section. You can drag you
mouse to set proper section size. In one channel video, system max supports 4 zones in one
channel.
— Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the
privacy mask zone can not be viewed by user when system is in preview status. Monitor
means the privacy mask zone can not be view by the user when system is in monitor status.
— Time display: You can select system displays time or not when you playback. Please click
set button and then drag the title to the corresponding position in the screen.
— Channel display: You can select system displays channel number or not when you playback.
Please click set button and then drag the title to the corresponding position in the screen.
z Copy：After you complete the setup, you can click Copy button to copy current setup to
other channel(s). You can see an interface is shown as in Figure 4-59. You can see current
channel number is grey. Please check the number to select the channel or you can check
the box ALL. Please click the OK button in Figure 4-59 and Figure 4-57 respectively to
complete the setup.
Please highlight icon to select the corresponding function.

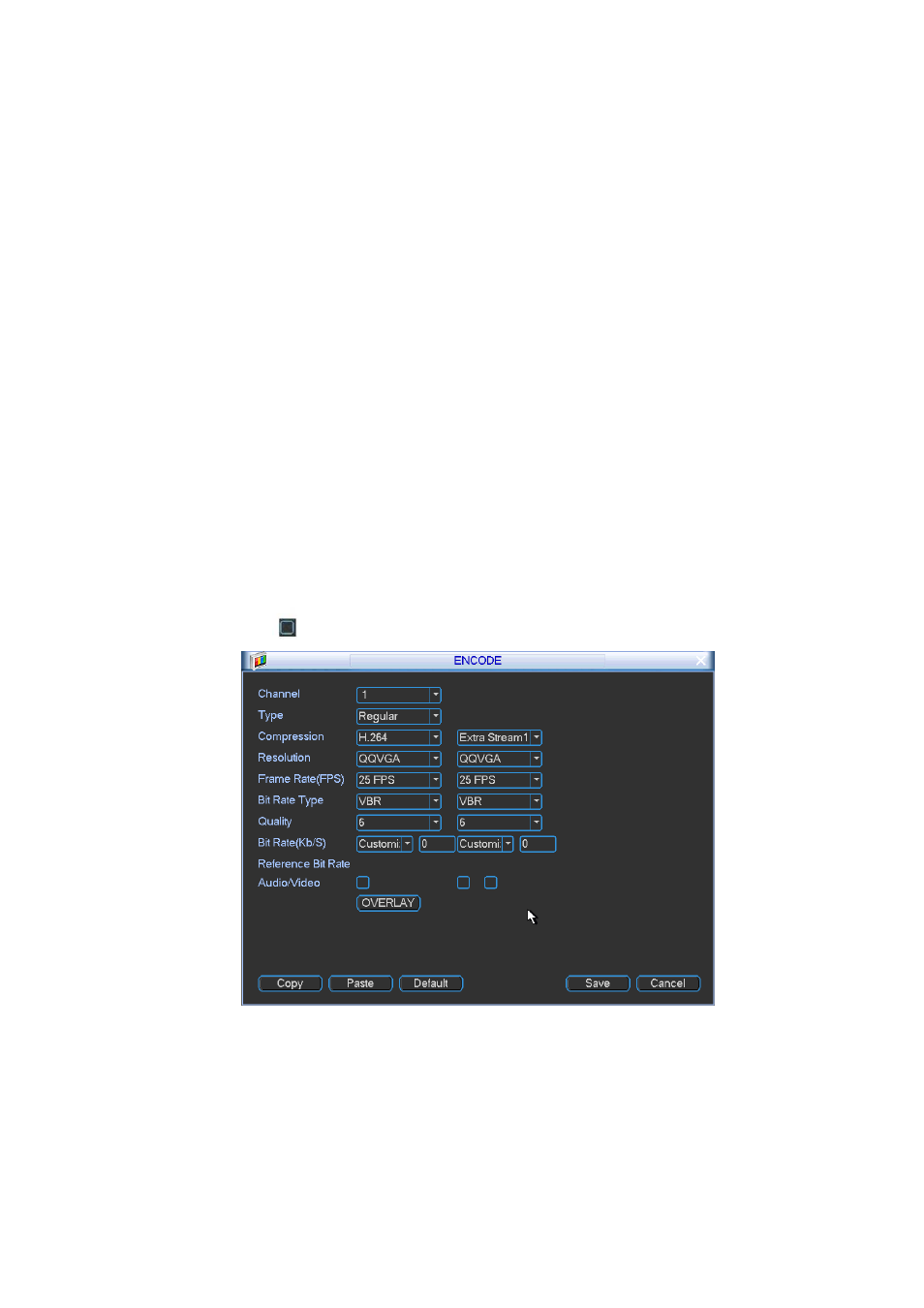

Figure 4-57
