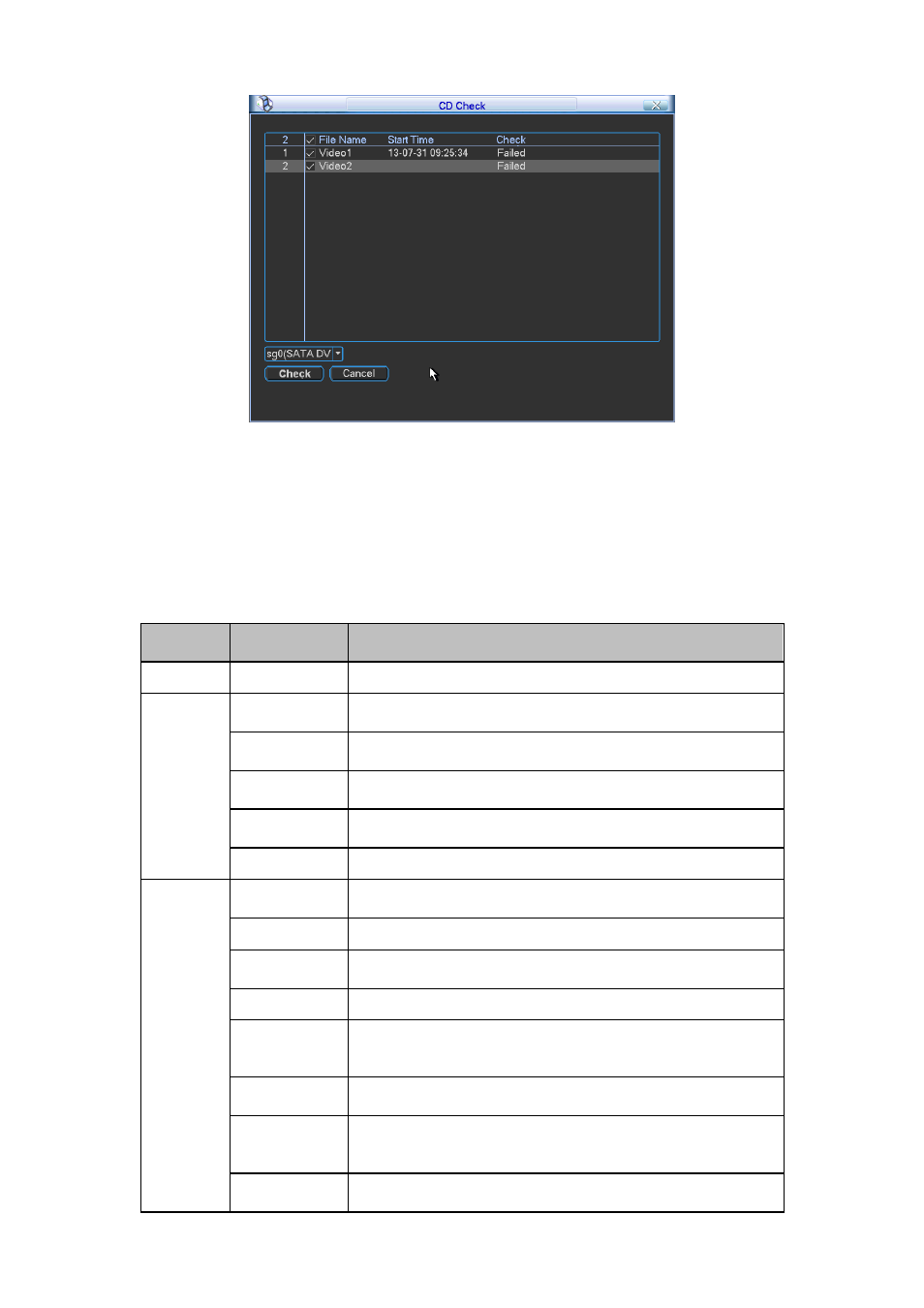

Figure 4-37
4.2 Understanding of Menu Operations and Controls
4.2.1 Menu Tree
This series NVR menu tree is shown as below.
Main
Menu The 1 st Menu
Note
Search - Record search and playback function.
HDD Info SATA port status, HDD total space, free space, record
start time./end time and etc.
BPS User wave to display bit stream of each channel and HDD
space it uses within one hour.
Log Display system important event log and specify the log
you want to record.
Version Display system hardware feature, software version, built
date and etc.
Info
Online users View online user information.
General Basic parameters such as system time, record save
mode, device No. and etc.
Encode
Audio/video encode mode, frame rate, quality and etc.
Schedule Record setup for general record, motion detect, external
alarm.
RS232 Set RS232 function, baud rate and etc.
Network Set parameters such as network address, video data
transmission protocol. You can set PPPoE, DDNS and
etc function.
Alarm Set external alarm output and record activation parameter
setup.
Detect Set motion detect sensitivity, region and process
modes(Alarm output and enable record function), video
loss, camera masking, audio and etc.
Setting
Pan/Tilt/Zoom Set communication protocol, baud rate and etc with the
PTZ device.
