IC Realtime 4 Channel Forensic Network Video Recorder User Manual

Page 36

c) On the PIP interface, click

at the top left corner to select a channel you want

to display and then click

to save. In mode 1, you can select 2/3/4 as the PIP mode.

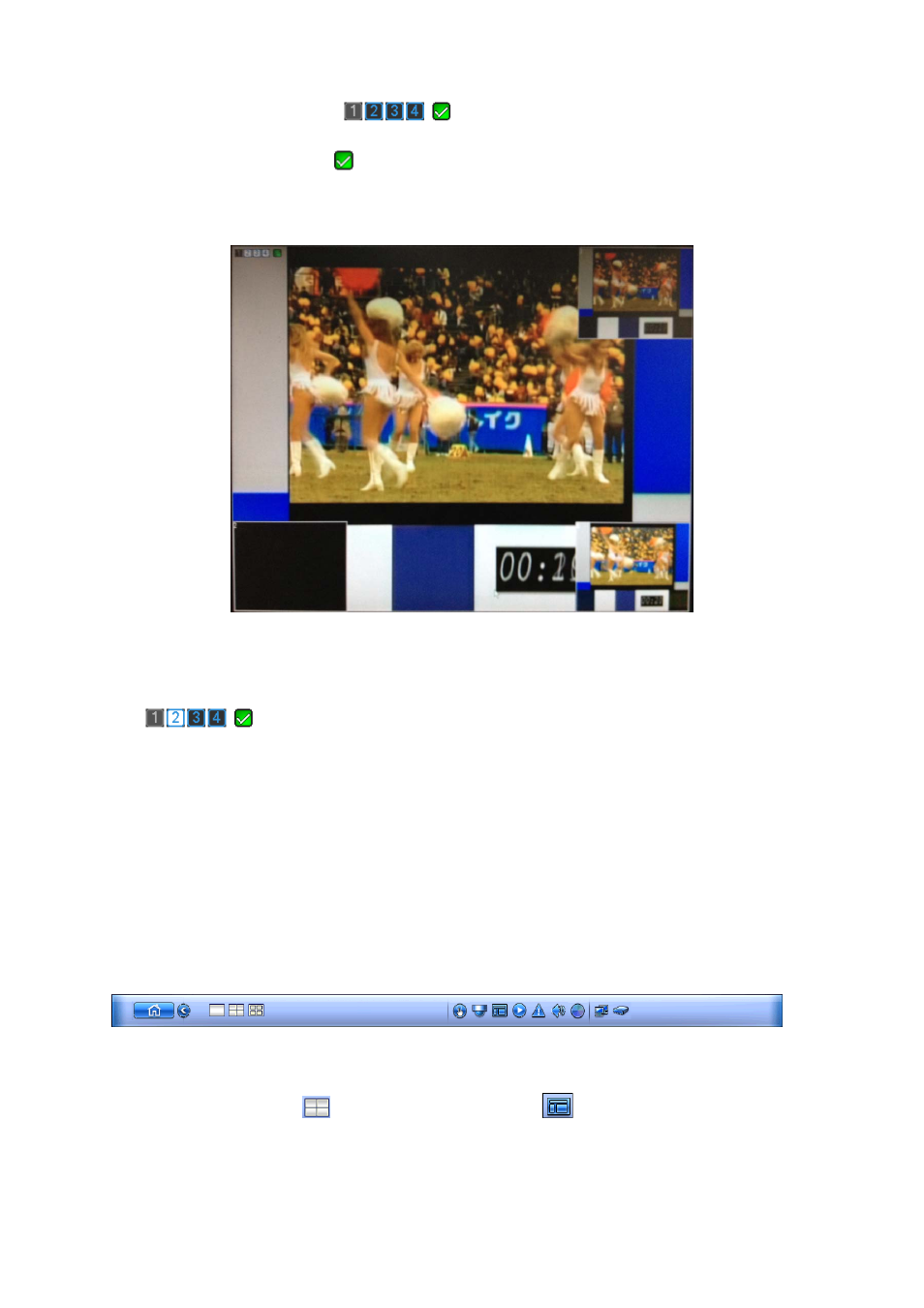

Now you can see an interface shown as in Figure 4-19.You can use mouse to drag the PIP
picture to the proper position and drag mouse to zoom in or zoom out.

Figure 4-19

Note

: The grey highlighted channel is the main channel. The white channel is the

PIP channel and black channel is the current selected channel.

On the PIP mode, the volume bar is the mixed audio. For mode 1 to mode 4, system can

mix the audio of the main interface and the PIP interface. It is the audio of the PIP preview
and record audio.

4.1.8.2 4-window PIP mode

You can view 4-window on the PIP mode. You can follow the steps listed below.

a) From main menu->setting->general, check the navigation bar to enable navigation function.

Close general interface and then left click mouse on the preview interface, you can see an
interface shown as in Figure 4-20.

Figure 4-20

b) In Figure 4-20, click

to set a mode and then click

. Now system goes to 4-window

PIP mode.
