54
5.3.5.3 Multiple Cast Setup

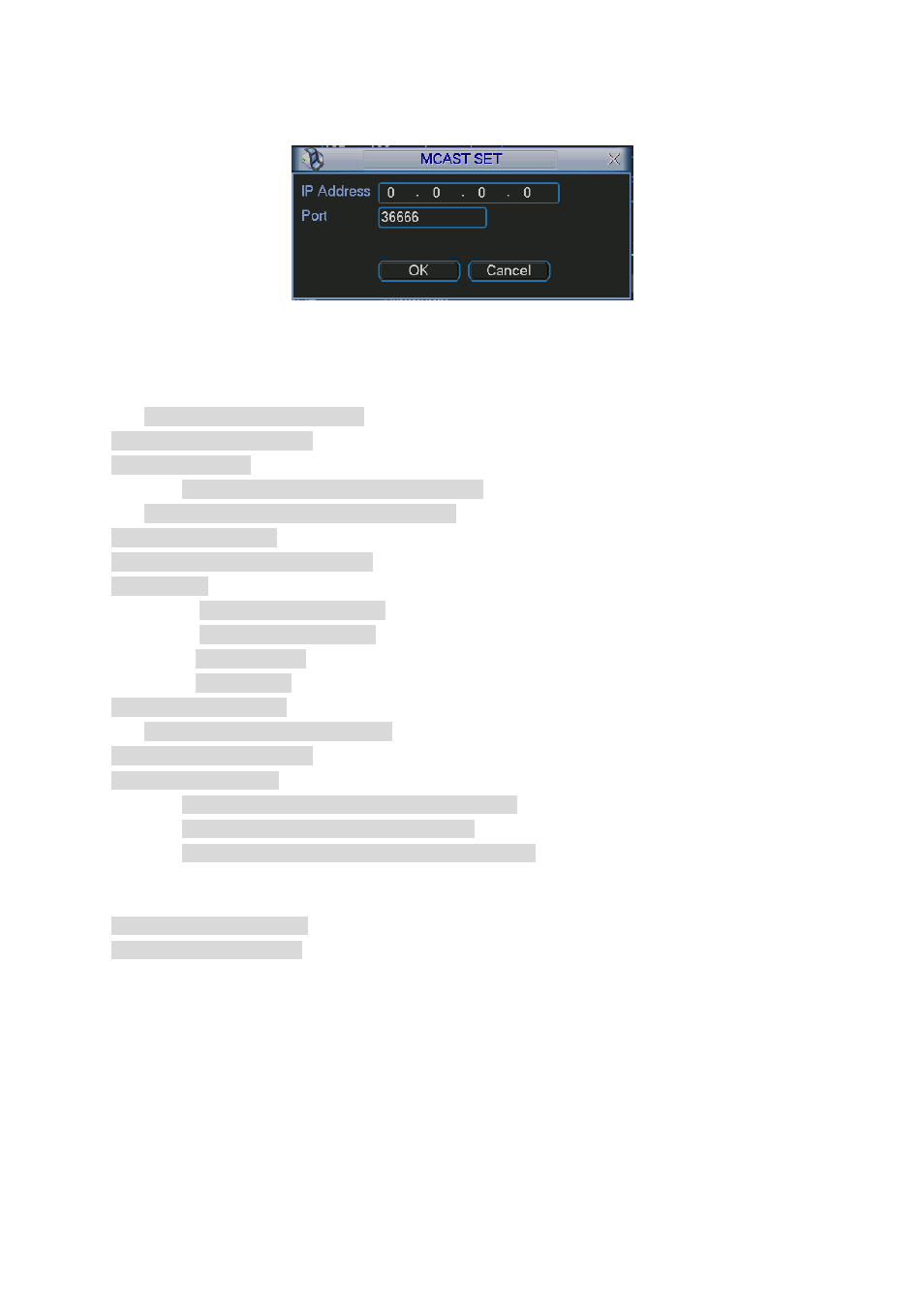

Multiple-cast setup interface is shown as in Figure 5-12.
Figure 5-12
Here you can set a multiple cast group. Please refer to the following sheet for detailed
information.
z
IP multiple cast group address
-224.0.0.0-239.255.255.255
-“D” address space
z The higher four-bit of the first byte=”1110”
z Reserved local multiple cast group address
-224.0.0.0-224.0.0.255
-TTL=1 When sending out telegraph
-For example
224.0.0.1 All
systems in the sub-net
224.0.0.2 All routers in the sub-net
224.0.0.4 DVMRP router
224.0.0.5 OSPF router
224.0.0.13 PIMv2 router
z
Administrative scoped addressees
-239.0.0.0-239.255.255.255
-Private address space
z Like the single broadcast address of RFC1918
z Can not be used in Internet transmission
z Used for multiple cast broadcast in limited space.
Except the above mentioned addresses of special meaning, you can use other addresses. For
example:
Multiple cast IP: 235.8.8.36
Multiple cast PORT: 3666.
After you logged in the Web, the Web can automatically get multiple cast address and add it to
the multiple cast groups. You can enable real-time monitor function to view the view.
Please note multiple cast function is for special series only.
5.3.5.4 PPPoE
PPPoE interface is shown as in Figure 5-13.
Input “PPPoE name” and “PPPoE password” you get from your ISP (Internet service provider).
Click save button, you need to restart to activate your configuration.
After rebooting, 10.2-inch combo DVR will connect to internet automatically. The IP in the PPPoE
is the 10.2-inch combo DVR dynamic value. You can access this IP to visit the unit.
