IC Realtime Combo Series: 8 Channel DVR with built-in 10 LCD monitor - Manual (Page 62)

53

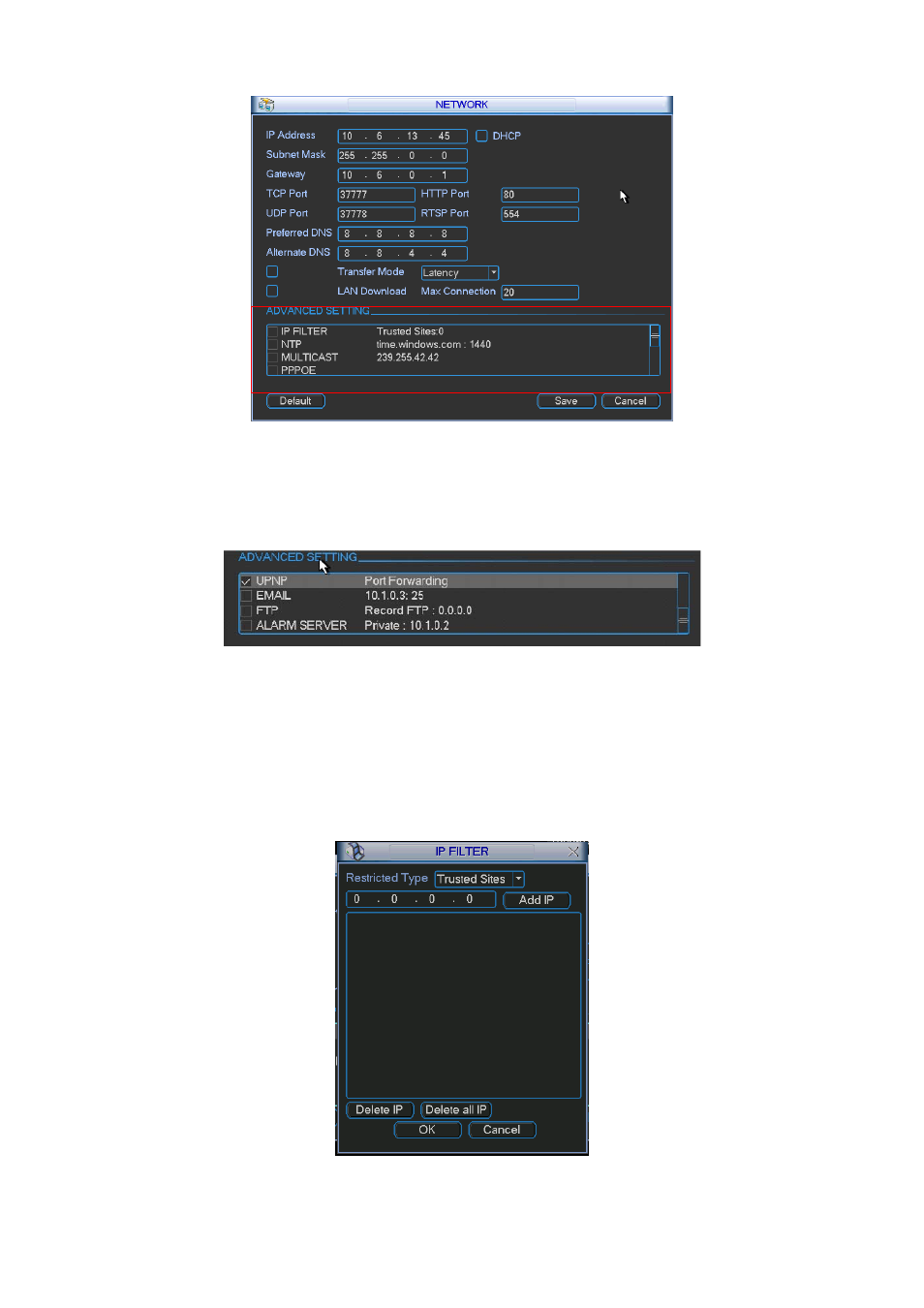

Figure 5-9
5.3.5.1 Advanced Setup
Advanced setup interface is shown as in Figure 5-10. Please draw a circle to enable
corresponding function and then double click current item to go to setup interface.
Figure 5-10
5.3.5.2 IP Filter
IP filter interface is shown as in Figure 5-11. You can add IP in the following list. The list
supports max 64 IP addresses.
Please note after you enabled this function, only the IP listed below can access current 10.2-inch
combo DVR.
If you disable this function, all IP addresses can access current 10.2-inch combo DVR.
Figure 5-11
