IC Realtime Combo Series: 8 Channel DVR with built-in 10 LCD monitor User Manual
Page 53
44

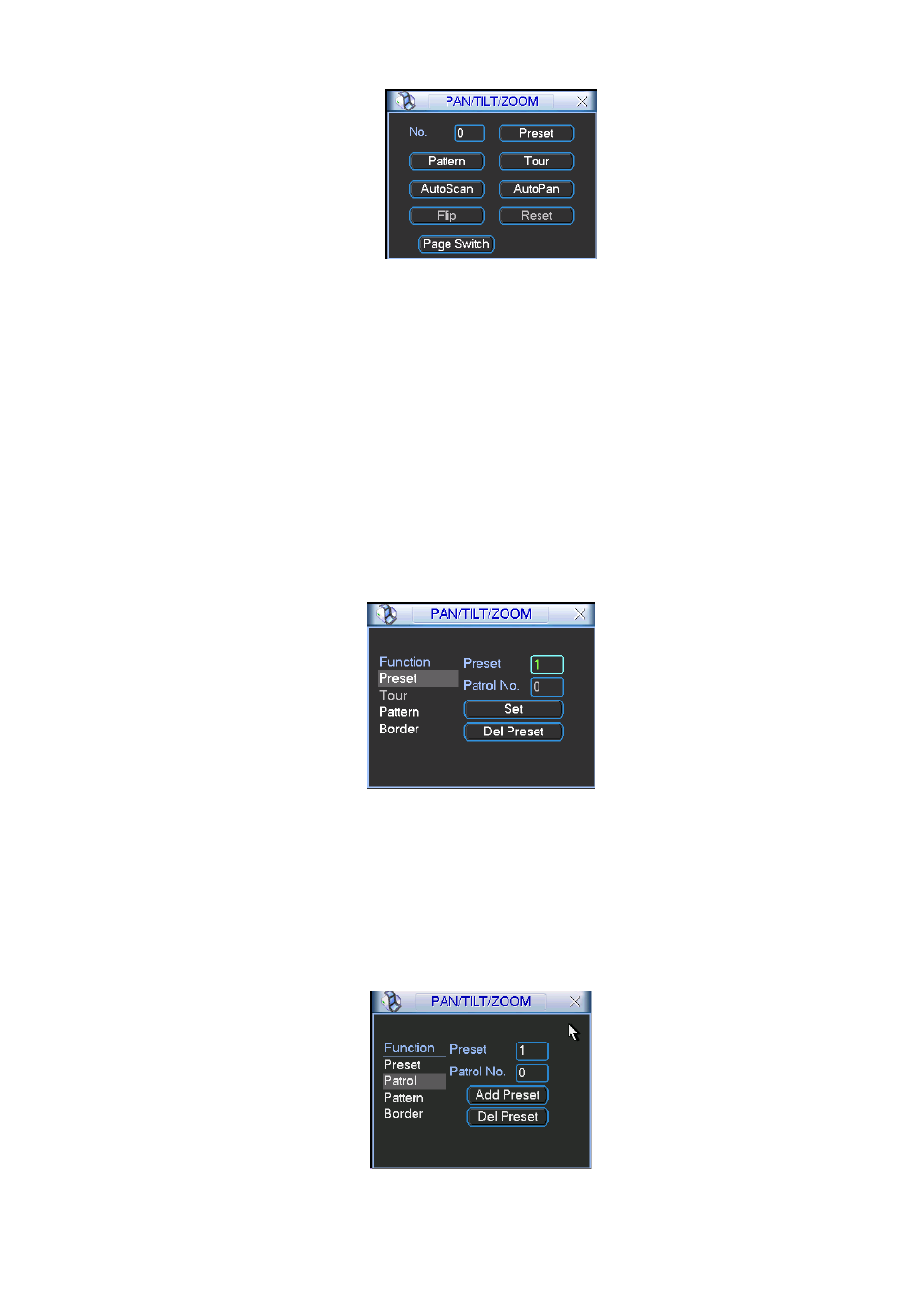

Figure 4-38
Note:
z
Preset, tour and pattern all need the value to be the control parameter. You can define it as
you require.
z
You need to refer to your speed dome user’s manual for Aux definition. In some cases, it
can be used for special process.
z
The following setups are usually operated in the
X332H332H332H X330H330H330H
Figure 4-34, Figure 4-37 and Figure 4-38.
4.9.1Preset Setup
In
X335H335H335H
Figure 4-34, use eight direction arrows to adjust camera to the proper position.
In Figure 4-37, click preset button and input preset number. The interface is shown as in Figure
4-39.
Now you can add this preset to one tour.
Figure 4-39
4.9.2 Activate Preset
In
X338H338H338H
Figure 4-38, please input preset number in the No. blank, and click preset button.
4.9.3 Patrol setup (Tour Setup)
In
X339H339H339H
Figure 4-37, click patrol button. The interface is shown as in
X340H340H340H
Figure 4-40.Input preset number
and add this preset to a patrol (tour). For each patrol (tour), you can input max 80 presets.
Figure 4-40
