Setting Up Your AccuTab VI
The instructions below describe how to set up your AccuTab VI.
Preparing the AccuTab VI
Mounting on the Stand
You can place AccuTab VI on a table, desk or drafting table or mount it on a stand or
pedestal. The tablet’s Universal Mounting Brackets attach directly to stands that have tilt
arms. Stands with tilt pads require right-angle mounting brackets, which are attached to
the right-angle mounting brackets. Center the tablet over the attached universal mounting
brackets and screw the Thumbscrews into the T-Nuts in the mounting channel in the
tablet’s frame.
Attaching the Optional Accessory Tray or Plan Holder
Additional T-Nuts have been included in the perimeter mounting channels on the AccuTab
VI frame. You can position the Plan Holder or Accessory Tray where it is most convenient
for you by attaching it to any one of the available T-Nuts. The following instructions and

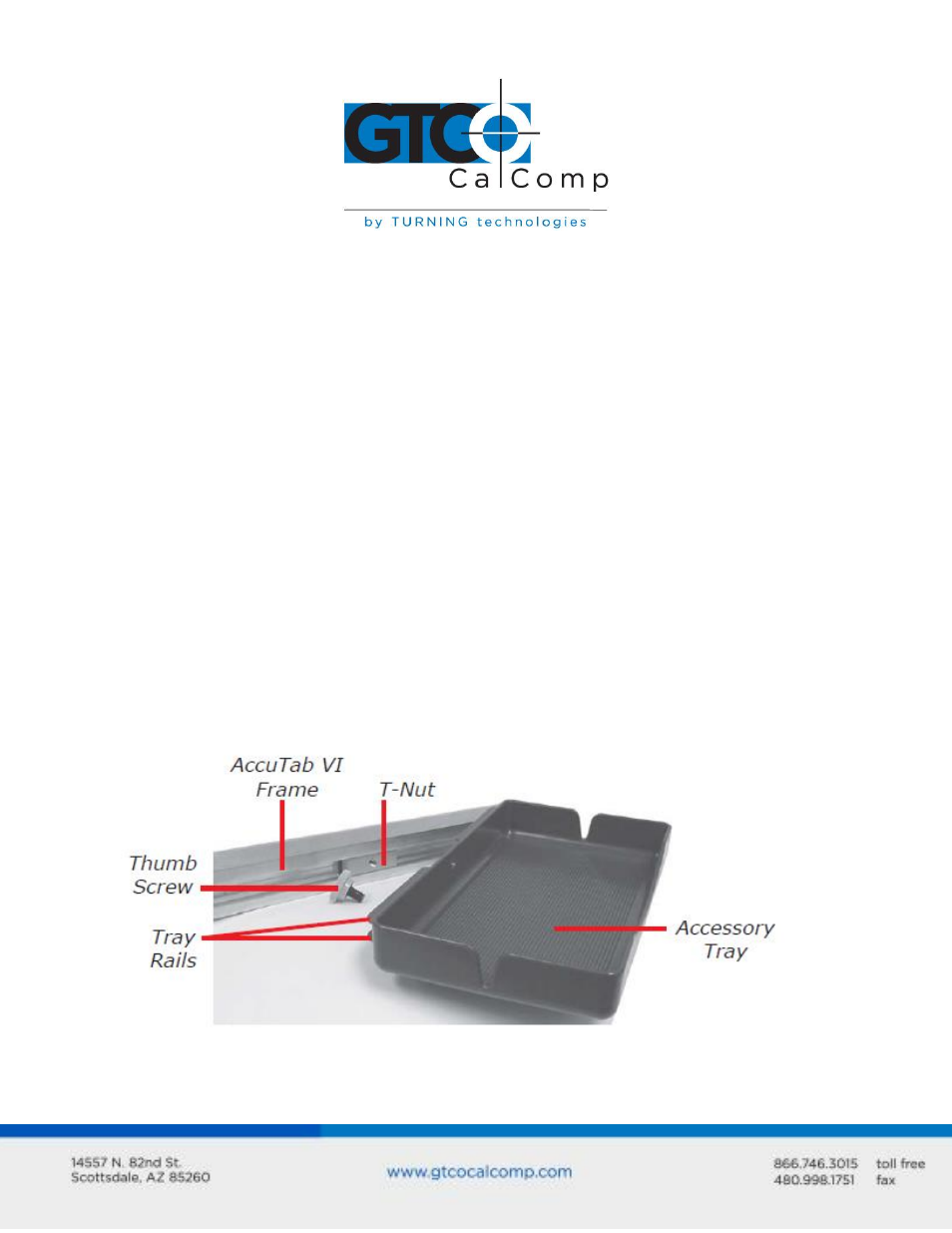

the graphic below detail the installation of the Accessory Tray.
Simply slide the Tray Rails into the channel and line up the hole in the tray with the hole in
the T-Nut. Tighten the Thumb Screw to secure the Accessory Tray.
