PAGE 6 INSTRUCTION MANUAL RX1300
1. Power On/Off Lock Button – turns
the receiver on and off. Also Locks
the keypad.
2. Control Knob – selects frequencies
and channels and selects values
from menus.
3. Up/Down Keys – adjusts the
Volume and selects Menu items and
frequency steps.
4. Squelch Up/Down Keys – opens
and closes the squelch.
5. Function Key – enables extended
keypad functions.
6. Menu Key – provides access to
setup menus.
7. Enter/VFO Key – confirms selections
and selects the VFO Mode.
8. Keypad – allows direct entry of
frequencies and selection
of functions.
9. Accessory Jack – provides charging
and earphone jacks.
10. LCD Display – shows frequencies
and selected functions.
11. Jack Cover Securing Point –
holds the accessory jack cover
in place.
12. Antenna – provides reception
of signals.
13. Lanyard Slot – allows connection
of the Lanyard to protect the
receiver from being
accidentally dropped.

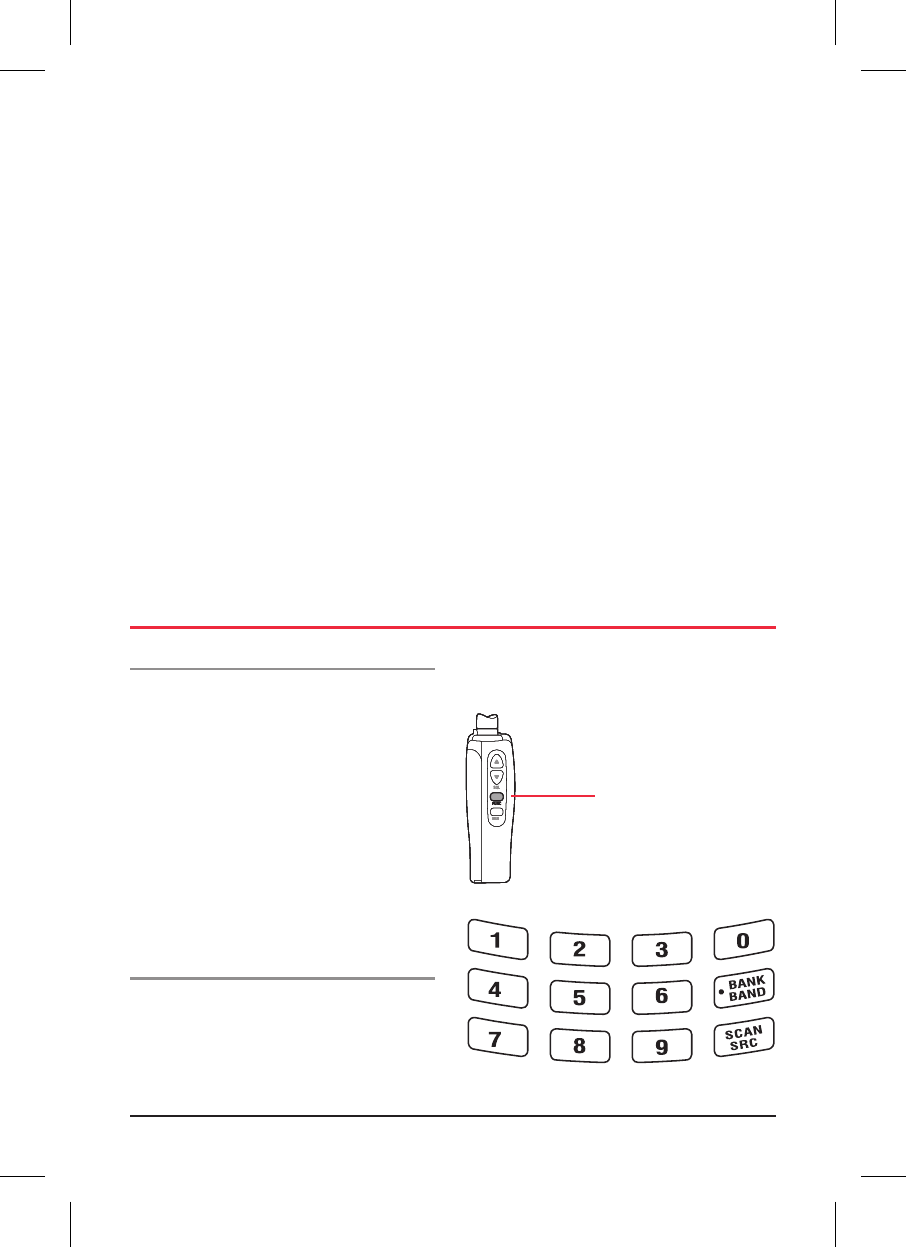

Direct Input Keys
1. Number Keys – used to enter
frequencies in VFO Mode and to
make direct selection of Banks in
memory Read Mode.
2. Bank/Band Key – used to change
Memory Banks or Frequency Bands.
3. Scan/Search Key – used to activate
or deactivate the Scan function in
memory read Mode or the Search
function in VFO Mode.
Extended Function Keys
The Keypad Keys on the front panel
have secondary functions which
are printed below each key. These
secondary functions are accessed after
pressing the FUNC key.
See chart on following page for
key functions.
DW PRI TONE ATT
CANC MODE SKIP LMT
AW MW MR DLY
FUNCTION KEY
kEypAD
