Hooking
up
The TY/YCR
I

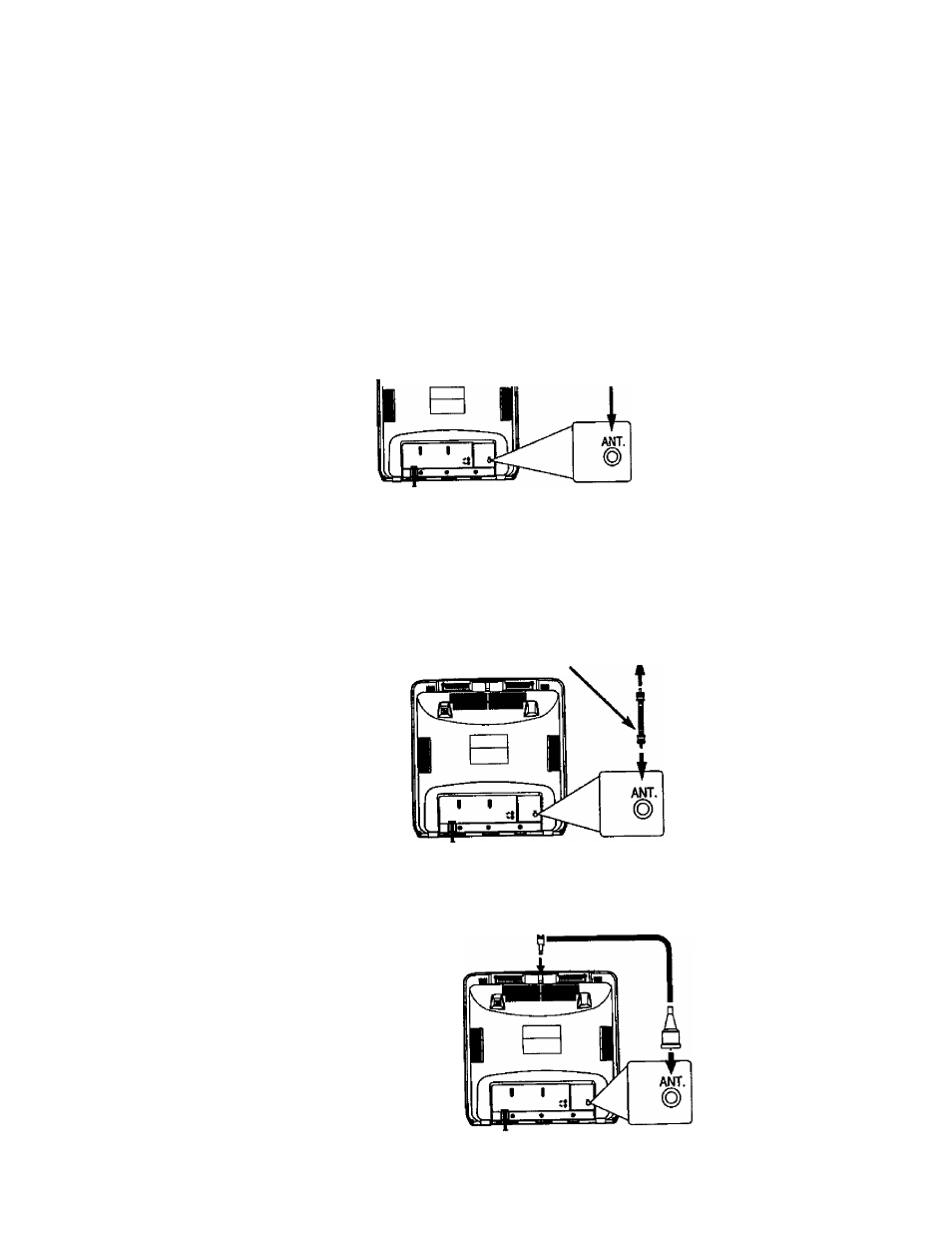

Hook up yourTV/VCR using one of the connections shown.
Hooking Up YourTV/VCR
With a Cable Signal or
Outdoor Antenna
Connect a Cable signal
or an antenna to the
ANT(enna) Jack.
B.
Hooking Up YourTV/VCR
With a Cable Box
To view any channel, set theTV/VCR
to the Cable Box output channel
(channel 03 or 04).Then, select chan
nels at the Cable Box.
Connect the Cable signal to
the IN Jack on the Cable Box.
Connect an RF coaxial cable (75-
ohtn, not supplied) to the OUT Jack
on the Cable Box and to the
ANT(enna) Jack on theTV/VCR.
Xi
c.
Hooking Up YourTV/VCR
With an Indoor Antenna
To install a rod antenna (not sup
plied), push the stem of the antenna
into the antenna hole on the top of
theTV/VCR. Connect die antenna
wire to the ANT(enna) Jack on the
back of the TV/VCR as shown.
Extend the antenna and adjust its
length, direction, and angle for die
clearest piaure.
Rod Antenna
(not supplied)
