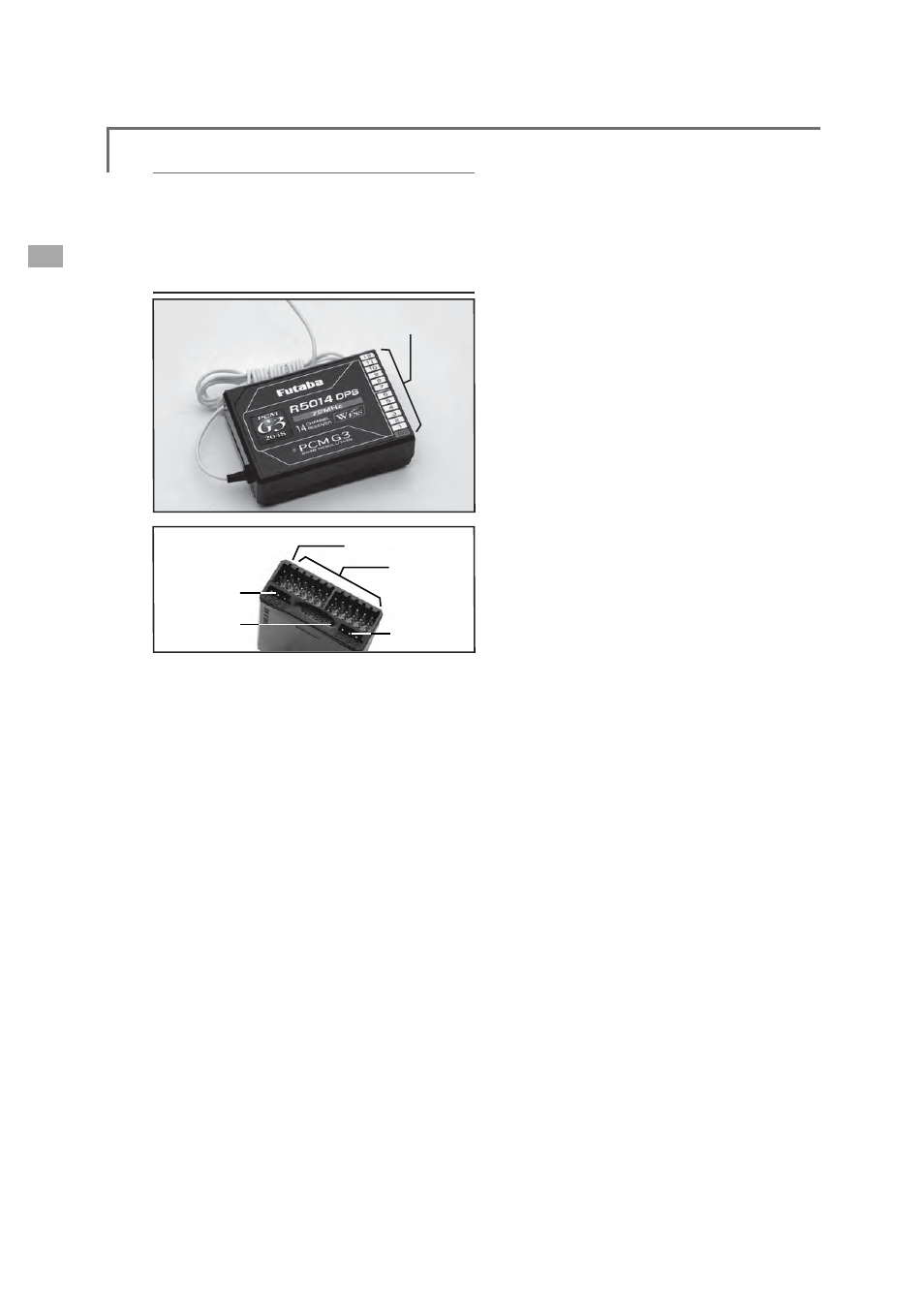

Receiver nomenclature
Before using the receiver, be sure to read the
precautions listed in the following pages.
Receiver R5014DPS
Ɣ Antenna
Ɣ Connectors
Ɣ'*
Ɣ0RQLWRU/('
Ɣ&+
Ɣ'*
Ɣ%&
Connector
"1 through 12": outputs for the channels 1 through 12
"DG1", "DG2": outputs of DG1 and DG2 channels
"B/C": connector for the power and DSC.
LED Monitor
This monitor is used to check the frequency
change of the receiver.
