SWITCH ASSIGNMENT TABLE
7KH IDFWRU\ GHIDXOW IXQFWLRQV DFWLYDWHG E\ WKH VZLWFKHV DQG 95 IRU DQ - 0RGH WUDQVPLWWHU DUH VKRZQ
below.
0RVW - IXQFWLRQV PD\ EH UHDVVLJQHG WR QRQGHIDXOW SRVLWLRQV TXLFNO\ DQG HDVLO\
%DVLF FRQWURO DVVLJQPHQWV RI FKDQQHOV DUH TXLFNO\ DGMXVWDEOH LQ AUX-CH.
1RWH WKDW PRVW IXQFWLRQV QHHG WR EH DFWLYDWHG LQ WKH SURJUDPPLQJ WR RSHUDWH
- 0RGH -+ DQG - WUDQVPLWWHU IXQFWLRQV DUH VLPLODU EXW UHYHUVH FHUWDLQ VZLWFK FRPPDQGV $OZD\V
check that you have the desired switch assignment for each function during set up.

Switch/VR
A or H

Airplane (ACRO)

Helicopter (HELI)

SWITCH A

elevator dual rate

SWITCH B

rudder dual rate

SWITCH C

up = ELE-FLP on
center/down = IDLE-DOWN
down = AIRBRAKE on

governor

SWITCH D

aileron dual rate

SWITCH E or G*

landing gear/ch 5

throttle hold/ch5

SWITCH F or H*

snap roll/trainer

trainer/THR-CUT

SWITCH G or E*

none

idle-up 1 and 2

SWITCH H or F*

none

idle-up3/gyro

ÀDSFK
ÀDS WULP LI FLAPERON on)

CH8

*On the 8JA Mode 2 transmitters, the TOP LEFT SWITCHES are spring-loaded and 2-position; on the 8JA Mode 1, 8JH, those
switches are on the right side. For consistency, the switch position’s designation remains the same (upper left is F, etc), but the
functions are moved to match the switch type.

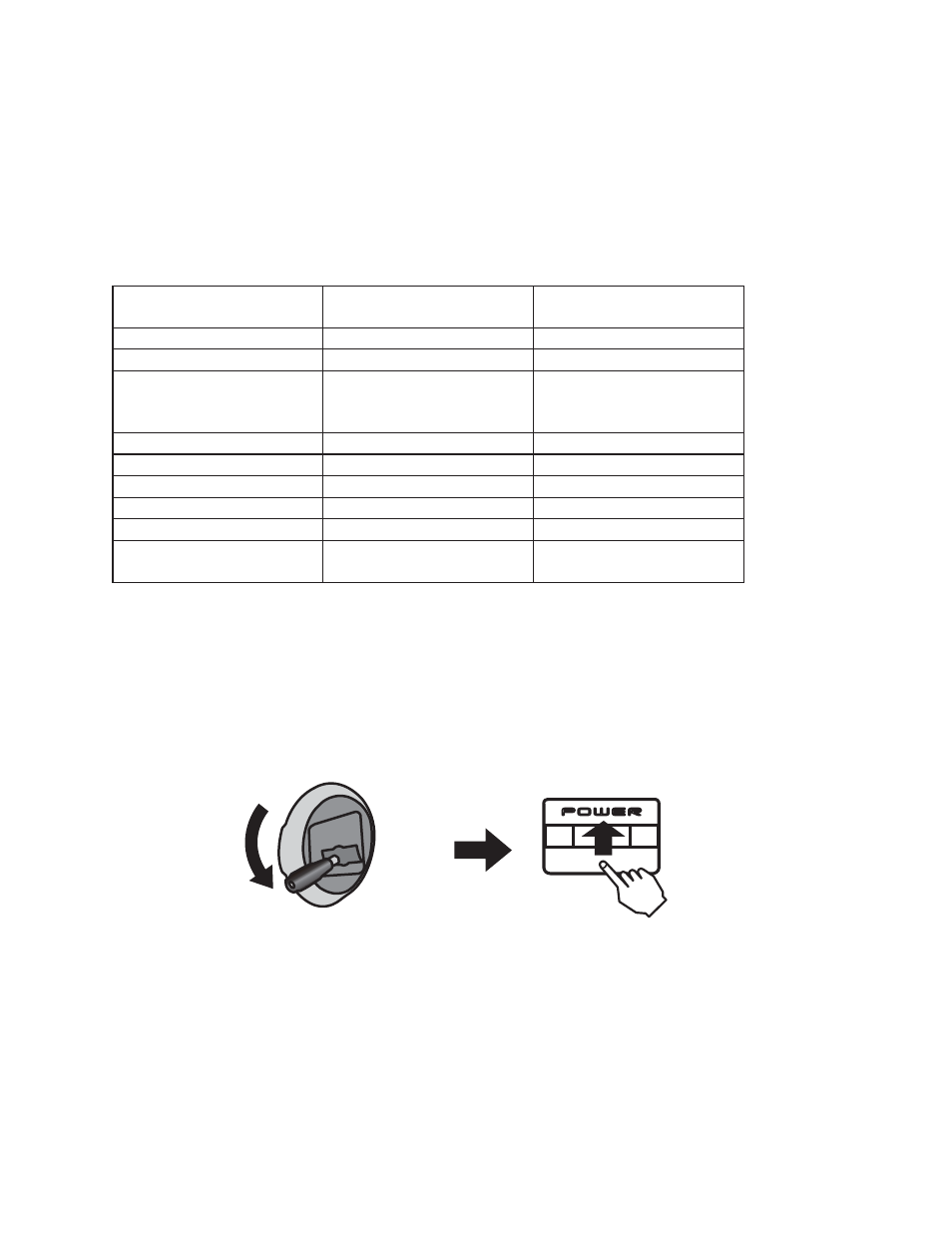

TO TURN ON THE 8J SYSTEM

First make sure the throttle stick is in the low throttle position.

Push up to turn on.

*If the throttle stick is not in the low position,

you'll have an alarm until the stick is in the low position.
